KY200AS0450-15
Keya
KY200AS0450-15
Product Overview
1. Protection grade: IP55, insulation grade: F
2. Winding overhang structure optimization, to minimize the copper loss and iron loss minimization, small volume, light weight, low temperature rise, high efficiency.
3. Super high coercivity, the maximum magnetic energy product NdFe35 permanent magnetic materials, strong resistance to demagnetization, motor performance is stable.
4. Low noise, low vibration, low moment of inertia.
5. High torque, fast dynamic response, wide speed range, strong overload capacity.
Industry class
1.The altitude should be over 1000 meters above sea level
2.Environment temperature:-25℃~+50℃
3.The month average tallest relative humidity is 90%,at the same the month average lowest temperature is less than 25℃

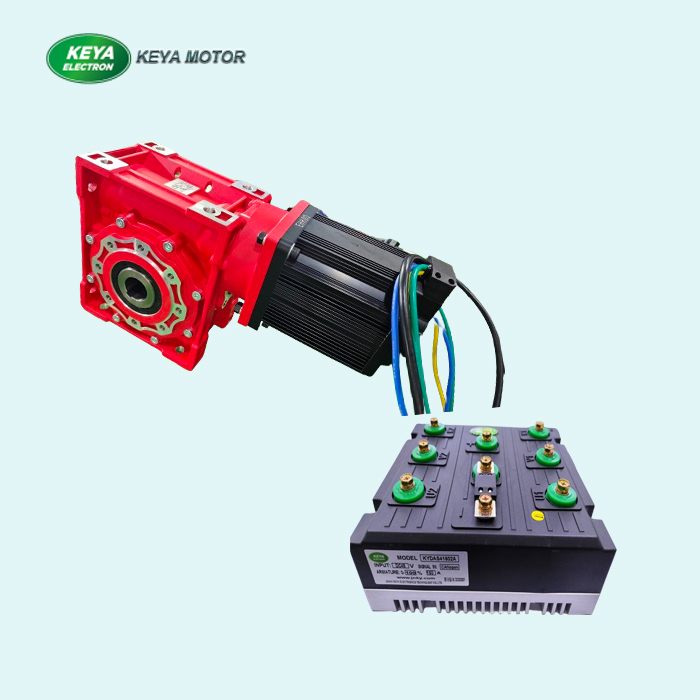

48v 5kw high power Brushless Servo Motor for Heavy Agv
5kw Servo motor datasheet
| Motor type | high power servo motor, pmsm motor |
| Rated voltage | 48V |
| Rated power | 5000W |
| Rated speed | 1500rpm |
| Rated torque | 32N.m |
| Peak torque | 64N.m-2 mins |
| Counter emf wave | sinusoid |
| Number of poles | 5 paris |
| Encoder | 2500ppr |
High power servo motor connect cable
Notice: the standard motor don't have brake, if you need brake, kindly advise.
brushless Servo motor drawing
DC servo motor speed torque curves
Related product
| Model | Volts | Power | RPM | Rated torque | Peak torque | Frame |
| KY200AS0450-15 | 48V | 5kw | 1500 | 32N.m | 64N.m | 200*200mm |
| KY200AS0650-15 | 60V | 5kw | 1500 | 32N.m | 64N.m | |
| KY200AS0660-15 | 6kw | 1500 | 38.2N.m | 76.4N.m | ||
| KY200AS0750-15 | 72V | 5kw | 1500 | 32N.m | 64N.m | |
| KY200AS0760-15 | 6kw | 1500 | 38.2N.m | 76.4N.m | ||
| KY200AS0775-15 | 7.5kw | 1500 | 47N.m | 94N.m | ||
| KY200AS0750-15 | 96V | 5kw | 1500 | 32N.m | 64N.m | |
| KY200AS0760-15 | 6kw | 1500 | 38.2N.m | 76.4N.m | ||
| KY200AS0775-15 | 7.5kw | 1500 | 47N.m | 94N.m | ||
| KY200AS09100-15 | 10kw | 1500 | 63.7N.m | 127.4N.m | ||
| Encoder: 2500ppr, optical, if you need other specificaiton, please advise. | ||||||
| Brake: if you need brake, kindly advise. | ||||||
| Accept custom-made motor, please contact us for more information. | ||||||
200w 400w 500w 800w 1kw 2kw 3kw servo motor for your reference
| Model | Volts | Power | RPM | Rated torque | Peak torque | frame |
| KY80AS0202-15 | 24V | 200w | 1500 | 1.27N.m | 3.8N.m | 80mm |
| KY80AS0402-15 | 48V | 200w | 1500 | 1.27N.m | 3.8N.m | |
| KY80AS0204-15 | 24V | 400w | 1500 | 2.55N.m | 7.6N.m | |
| KY80AS0404-15 | 48V | 400w | 1500 | 2.55N.m | 7.6N.m | |
| KY80AS0204-30 | 24V | 400w | 3000 | 1.27N.m | 3.8N.m | |
| KY80AS0404-30 | 48V | 400w | 3000 | 1.27N.m | 3.8N.m | |
| KY80AS0407-30 | 48V | 700w | 3000 | 2.3N.m | 6.9N.m | |
| KY110AS0205-15 | 24V | 500w | 1500 | 3.18N.m | 9.5N.m | 110mm |
| KY110AS0207-15 | 24V | 700w | 1500 | 4.7N.m | 14.1N.m | |
| KY110AS0408-15 | 48V | 800w | 1500 | 5.0N.m | 15N.m | |
| KY110AS0210-15 | 24V | 1kw | 1500 | 6.3N.m | 18.9N.m | |
| KY110AS0410-15 | 48V | 1kw | 1500 | 6.3N.m | 18.9N.m | |
| KY110AS0412-25 | 48V | 1.2kw | 2500 | 4.5N.m | 13.5N.m | |
| KY110AS0415-15 | 48V | 1.5kw | 1500 | 9.5N.m | 28.5N.m | |
| KY110AS0415-30 | 48V | 1.5kw | 3000 | 4.7N.m | 14.1N.m | |
| KY110AS0420-25 | 48V | 2kw | 2500 | 7.6N.m | 22.8N.m | |
| KY130AS0410-15 | 48V | 1kw | 1500 | 6.3N.m | 18.9N.m | 130mm |
| KY130AS0415-15 | 48V | 1.5kw | 1500 | 9.5N.m | 28.5N.m | |
| KY130AS0430-15 | 48V | 3kw | 1500 | 19.1N.m | 57.3 | |
| KY130AS0430-30 | 48V | 3kw | 3000 | 9.5N.m | 28.5N.m | |
| Encoder: 2500ppr, optical, if you need other specificaiton, please advise. | ||||||
| Brake: if you need brake, kindly advise. | ||||||
| Accept custom-made motor, please contact us for more information. | ||||||
high power servo motor Applicatin
this high power servo motor be widely used in Heavy AGV. It has better performances than other traditional dc motors.
