48v DC Servo motor with encoder,brushless type,2000w

48v DC Servo motor with encoder,brushless type,2000w, find complete details about 48v DC Servo motor with encoder,brushless type,2000w, 48v DC Servo motor with encoder - Jinan Keya Electronic Science and Technology Co., Ltd
Availability:
Quantity:
  • KY110AS0420-25

  • Keya

  • KY110AS0420-25

48v DC Servo motor with encoder,brushless type,2000w

Product Overview

1. Protection grade: IP55, insulation grade: F

2. Winding overhang structure optimization, to minimize the copper loss and iron loss minimization, small volume, light weight, low temperature rise, high efficiency
3. Super high coercivity, the maximum magnetic energy product NdFe35 permanent magnetic materials, strong resistance to demagnetization, motor performance is stable.
4. Low noise, low vibration, low moment of inertia.
5. High torque, fast dynamic response, wide speed range, strong overload capacity (four times)

Product Features
1. High Torque to inertia ratio&up to 25000Nm/kgm2
2. Fast dynamic response *time constant <20ms
3. Wide speed adjusting&feedback up to 1000:1
4. Steady speed precision up to 0.5%
5. High overload, 2Mn/30s,3 .5N.m/10s
6. Small volume and light
7. Silent,the lowest noise is only 45dB(A)
8. Protected with IP55,Class F insulation

Industry class
1.The altitude should be over 1000 meters above sea level
2.Environment temperature:-25℃~+50℃
3.The month average tallest relative humidity is 90%,at the same the month average lowest temperature is less than 25℃

48v DC Servo motor with encoder,brushless type,2000w

110

KY110AS0420-25

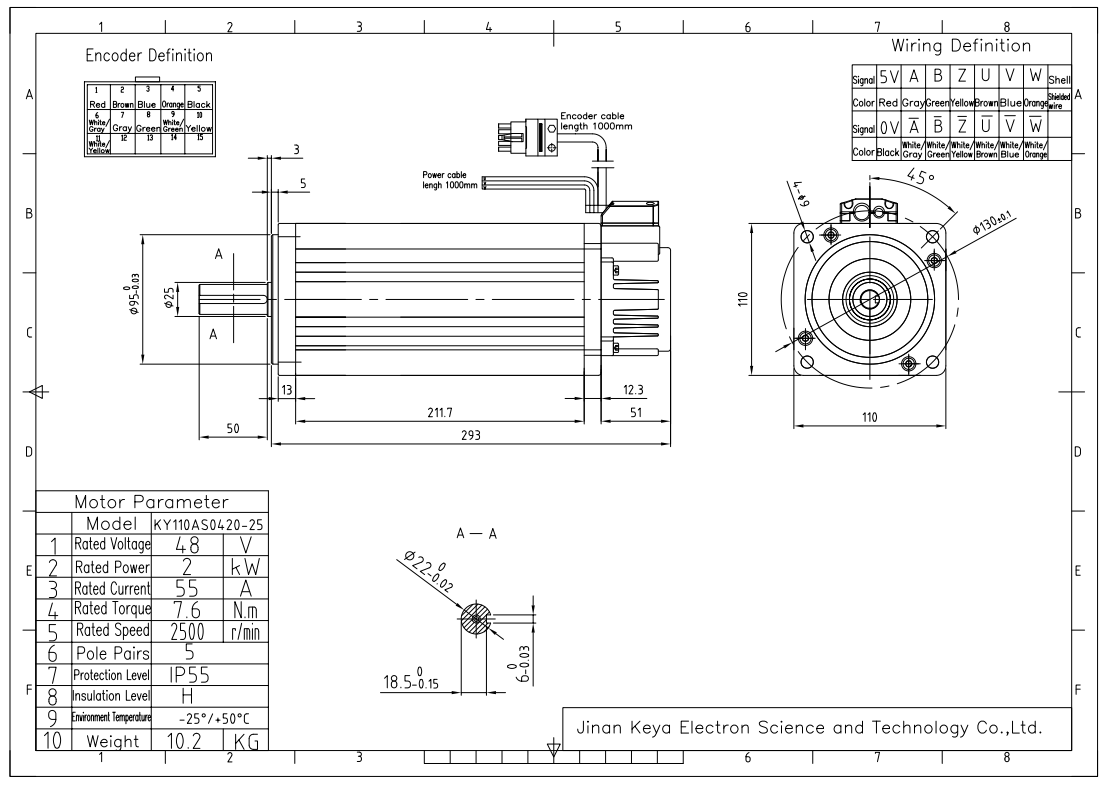

  • Datasheet

Motor type

bldc motor encoder, servo motor, pmsm motor
Rated voltage

48V

Rated power

2000W

Rated speed

2500rpm

Rated torque

7.6N.m

Peak torque

22.8N.m

Number of poles

5pairs

Encoder

optical, 2500ppr





  • Connect cable

dc servo motor wiring

Notice: the standard motor don't have brake, if you need brake, kindly advise.







  • Related servo motor

Model

Volts

Power

RPM

Rated torque

Peak torque

frame

KY80AS0404-30-3P 48V 400W 3000 1.27N.m 3.8N.m 80mm

KY80AS0407-30-3P 48V 700W 3000 2.4N.m 7.1N.m
KY80AS0410-30-3P 48V 1000W

3000

3.2N.m 9.6N.m
KY80AS0202-15

24V

200w

1500

1.27N.m

3.8N.m

KY80AS0402-15 48V

200w 1500 1.27N.m 3.8N.m
KY80AS0204-15

24V 400w 1500 2.55N.m 7.6N.m

KY80AS0404-15 48V 400w 1500 2.55N.m 7.6N.m
KY80AS0204-30

24V 400w 3000 1.27N.m 3.8N.m
KY80AS0404-30 48V 400w 3000 1.27N.m 3.8N.m
KY80AS0407-30

48V 700w 3000 2.3N.m

6.9N.m

KY110AS0205-15

24V

500w

1500

3.18N.m

9.5N.m

110mm

KY110AS0207-15

24V 700w 1500 4.7N.m 14.1N.m

KY110AS0408-15 48V 800w 1500 5.0N.m

15N.m

KY110AS0210-15 24V 1kw 1500 6.3N.m

18.9N.m

KY110AS0410-15

48V 1kw

1500 6.3N.m

18.9N.m
KY110AS0412-25

48V 1.2kw

2500 4.5N.m

13.5N.m

KY110AS0415-15 48V 1.5kw

1500 9.5N.m

28.5N.m

KY110AS0415-30 48V 1.5kw

3000 4.7N.m

14.1N.m

KY110AS0420-25 48V 2kw

2500

7.6N.m

22.8N.m

KY130AS0410-15 48V 1kw

1500 6.3N.m 18.9N.m

130mm

KY130AS0415-15 48V 1.5kw

1500 9.5N.m 28.5N.m
KY130AS0430-15 48V 3kw

1500 19.1N.m

57.3N.m
KY130AS0430-30 48V 3kw

3000

9.5N.m

28.5N.m
KY200AS0450-15 48V 5kw 1500 31.8 63.6 200mm

KY200AS0975-15 96V 7.5kw 1500 47.7 95.4
KY200AS09100-15 96V 10kw 1500 63.6 127.2
KY215ACS0440-15 48V 4kw 1500 25.5 76 215mm
KY215ACS0460-15 48V 6kw 1500 38.2 110
Encoder: 2500ppr, optical, if you need other specificaiton, please advise.

Brake: if you need brake, kindly advise.

Accept custom-made motor, please contact us for more information.





  • Applicatin

It has been widely used for many applications, eg., Mobile robot, Automatic Guided Vehicle,smart self driving robot vehicle platforms/kits,caterpillar lifting platform,Fire fighting Robot etc. It has better performances than other traditional dc motors.




未标题-2

AGV

未标题-5

Fire-fighting Robot

未标题-6

Logistics shuttle transport Robot


未标题-4

Wheeled Robot

未标题-3

Agricultural Robot

未标题-1

Crawler lift truck


  • Matching controller


DAS41601A

KYDAS41601A

DAS48150-2E

KYDAS48150-2E
