Brushless servo dc motor Flange diameter 80mm 48v 400w 3000rpm 3pole pairs for AGV tracked carrier mobile robot

Brushless servo dc motor Flange diameter 80mm 48v 400w 3000rpm 3pole pairs for AGV tracked carrier mobile robot- Jinan Keya Electronic Science and Technology Co., Ltd

Availability:

Quantity:



Inquire

Model:
KY80AS0404-30-3P
Brand:
KEYA
Code:
KY80AS0404-30-3P

Product Description

Overview

*Lower temperature rise, conducive to the overall heat dissipation design of the user.

*Higher torque overload capacity; more conducive to the application of various mobile robots.

*High efficiency, greatly extending battery life.

*Low speed and high torque, effectively reduce the wear on the speed reduction mechanism and prolong the service life of the reduction mechanism.

*Smaller vibration and lower noise make users more comfortable.

*The insulation class of the motor is H, which effectively prolongs the service life of the motor and ensures excellent overload capacity.

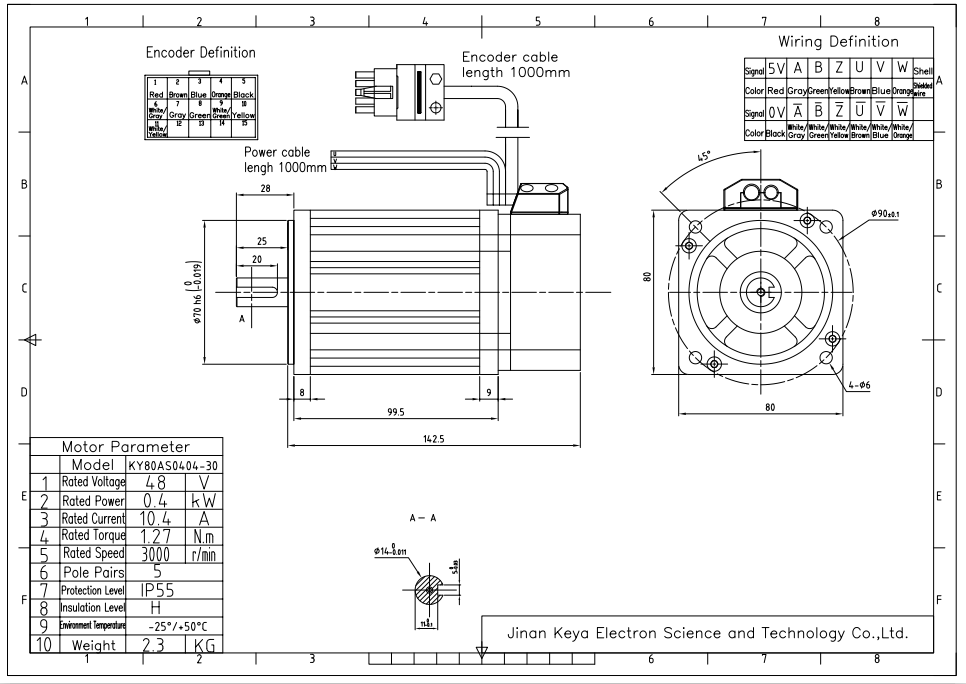

详情页80

KY80AS0404-30-3P

Datasheet

Motor type	high torque 48v dc motor, dc gear motor, 48v brushless servo motor
Rated voltage	48V
Rated power	400W
Rated speed	3000rpm
Rated torque	1.27N.m
Peak torque	3.8N.m
Number of poles	3 pairs
Encoder	optical, 2500ppr

Connect cable

dc servo motor wiring

Notice: the standard motor don't have brake, if you need brake, kindly advise.

Related servo motor

Model	Volts	Power	RPM	Rated torque	Peak torque	frame
KY80AS0404-30-3P	48V	400W	3000	1.27N.m	3.8N.m	80mm
KY80AS0407-30-3P	48V	700W	3000	2.4N.m	7.1N.m
KY80AS0410-30-3P	48V	1000W	3000	3.2N.m	9.6N.m
KY80AS0202-15	24V	200w	1500	1.27N.m	3.8N.m
KY80AS0402-15	48V	200w	1500	1.27N.m	3.8N.m
KY80AS0204-15	24V	400w	1500	2.55N.m	7.6N.m
KY80AS0404-15	48V	400w	1500	2.55N.m	7.6N.m
KY80AS0204-30	24V	400w	3000	1.27N.m	3.8N.m
KY80AS0404-30	48V	400w	3000	1.27N.m	3.8N.m
KY80AS0407-30	48V	700w	3000	2.3N.m	6.9N.m
KY110AS0205-15	24V	500w	1500	3.18N.m	9.5N.m	110mm
KY110AS0207-15	24V	700w	1500	4.7N.m	14.1N.m
KY110AS0408-15	48V	800w	1500	5.0N.m	15N.m
KY110AS0210-15	24V	1kw	1500	6.3N.m	18.9N.m
KY110AS0410-15	48V	1kw	1500	6.3N.m	18.9N.m
KY110AS0412-25	48V	1.2kw	2500	4.5N.m	13.5N.m
KY110AS0415-15	48V	1.5kw	1500	9.5N.m	28.5N.m
KY110AS0415-30	48V	1.5kw	3000	4.7N.m	14.1N.m
KY110AS0420-25	48V	2kw	2500	7.6N.m	22.8N.m
KY130AS0410-15	48V	1kw	1500	6.3N.m	18.9N.m	130mm
KY130AS0415-15	48V	1.5kw	1500	9.5N.m	28.5N.m
KY130AS0430-15	48V	3kw	1500	19.1N.m	57.3N.m
KY130AS0430-30	48V	3kw	3000	9.5N.m	28.5N.m
KY200AS0450-15	48V	5kw	1500	31.8	63.6	200mm
KY200AS0975-15	96V	7.5kw	1500	47.7	95.4
KY200AS09100-15	96V	10kw	1500	63.6	127.2
KY215ACS0440-15	48V	4kw	1500	25.5	76	215mm
KY215ACS0460-15	48V	6kw	1500	38.2	110
Encoder: 2500ppr, optical, if you need other specificaiton, please advise.
Brake: if you need brake, kindly advise.
Accept custom-made motor, please contact us for more information.

Applicatin

It has been widely used for many applications, eg., Mobile robot, Automatic Guided Vehicle,smart self driving robot vehicle platforms/kits,caterpillar lifting platform,Fire fighting Robot etc. It has better performances than other traditional dc motors.
