high torque 24v 400w pmsm servo motor

high torque 24v 400w pmsm servo motor

• Overview


1. Protection grade: IP55, insulation grade: F

2. Winding overhang structure optimization, to minimize the copper loss and iron loss minimization, small volume, light weight, low temperature rise, high efficiency
3. Super high coercivity, the maximum magnetic energy product NdFe35 permanent magnetic materials, strong resistance to demagnetization, motor performance is stable.
4. Low noise, low vibration, low moment of inertia.

5. High torque, fast dynamic response, wide speed range, strong overload capacity (four times)

Small Servo Motor Features
1. High Torque to inertia ratio&up to 25000Nm/kgm²
2. Fast dynamic response *time constant <20ms
3. Wide speed adjusting&feedback up to 1000:1
4. Steady speed precision up to 0.5%
5. High overload, 2Mn/30s,3 .5N.m/10s
6. Small volume and light
7. Silent,the lowest noise is only 45dB(A)

8. Protected with IP55,Class F insulation

Small Servo Motor Industry class
1.The altitude should be over 1000 meters above sea level
2.Environment temperature:-25℃~+50℃

3.The month average tallest relative humidity is 90%,at the same the month average lowest temperature is less than 25℃

• Datasheet


Motor type	bldc motor encoder, servo motor, pmsm motor
Rated voltage	24V
Rated power	400W
Rated speed	1500rpm
Rated torque	1.27N.m
Peak torque	3.8N.m
Number of poles	5 pairs
Encoder	optical, 2500ppr

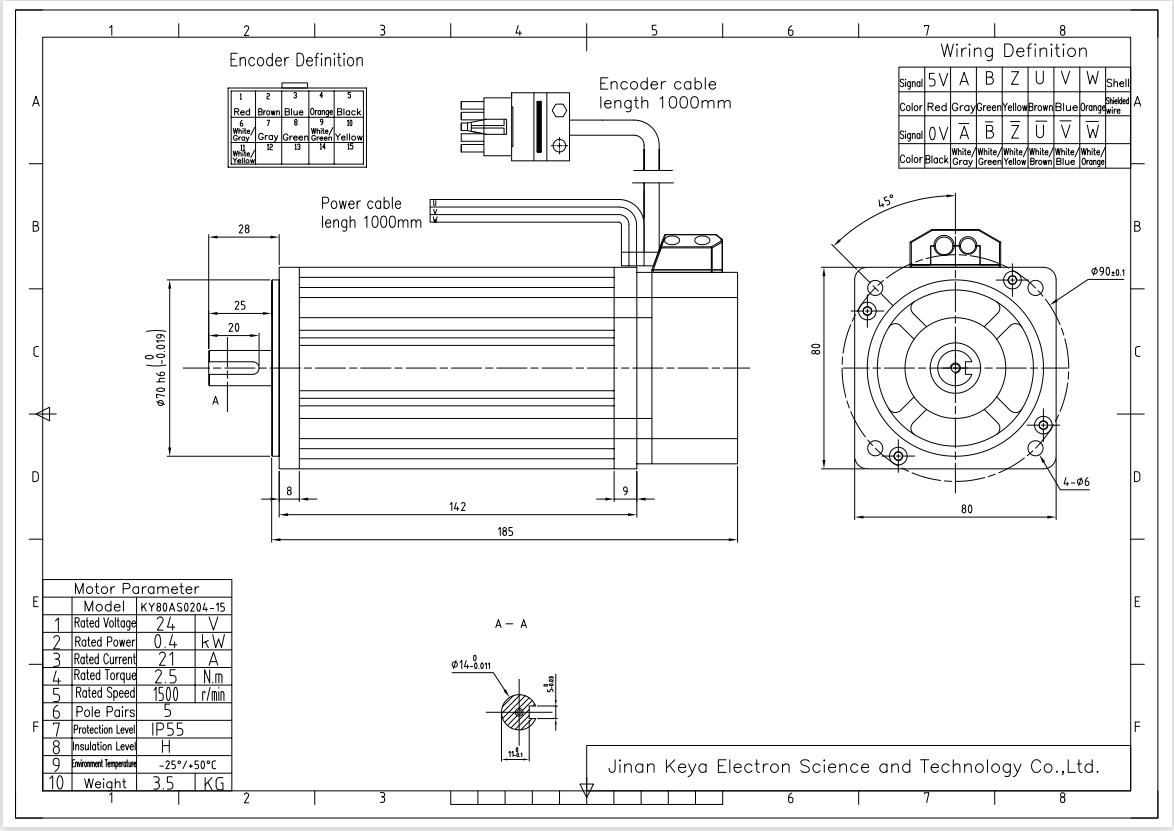

• Connect cable

Notice: the standard motor don't have brake, if you need brake, kindly advise.

• Related servo motor


Model	Volts	Power	RPM	Rated torque	Peak torque	frame
KY80AS0404-30-3P	48V	400W	3000	1.27N.m	3.8N.m	80mm
KY80AS0407-30-3P	48V	700W	3000	2.4N.m	7.1N.m
KY80AS0410-30-3P	48V	1000W	3000	3.2N.m	9.6N.m
KY80AS0202-15	24V	200w	1500	1.27N.m	3.8N.m
KY80AS0402-15	48V	200w	1500	1.27N.m	3.8N.m
KY80AS0204-15	24V	400w	1500	2.55N.m	7.6N.m
KY80AS0404-15	48V	400w	1500	2.55N.m	7.6N.m
KY80AS0204-30	24V	400w	3000	1.27N.m	3.8N.m
KY80AS0404-30	48V	400w	3000	1.27N.m	3.8N.m
KY80AS0407-30	48V	700w	3000	2.3N.m	6.9N.m
KY110AS0205-15	24V	500w	1500	3.18N.m	9.5N.m	110mm
KY110AS0207-15	24V	700w	1500	4.7N.m	14.1N.m
KY110AS0408-15	48V	800w	1500	5.0N.m	15N.m
KY110AS0210-15	24V	1kw	1500	6.3N.m	18.9N.m
KY110AS0410-15	48V	1kw	1500	6.3N.m	18.9N.m
KY110AS0412-25	48V	1.2kw	2500	4.5N.m	13.5N.m
KY110AS0415-15	48V	1.5kw	1500	9.5N.m	28.5N.m
KY110AS0415-30	48V	1.5kw	3000	4.7N.m	14.1N.m
KY110AS0420-25	48V	2kw	2500	7.6N.m	22.8N.m
KY130AS0410-15	48V	1kw	1500	6.3N.m	18.9N.m	130mm
KY130AS0415-15	48V	1.5kw	1500	9.5N.m	28.5N.m
KY130AS0430-15	48V	3kw	1500	19.1N.m	57.3N.m
KY130AS0430-30	48V	3kw	3000	9.5N.m	28.5N.m
KY200AS0450-15	48V	5kw	1500	31.8	63.6	200mm
KY200AS0975-15	96V	7.5kw	1500	47.7	95.4
KY200AS09100-15	96V	10kw	1500	63.6	127.2
KY215ACS0440-15	48V	4kw	1500	25.5	76	215mm
KY215ACS0460-15	48V	6kw	1500	38.2	110
Encoder: 2500ppr, optical, if you need other specificaiton, please advise.
Brake: if you need brake, kindly advise.
Accept custom-made motor, please contact us for more information.

• Applicatin

It has been widely used for many applications, eg., Mobile robot, Automatic Guided Vehicle,smart self driving robot vehicle platforms/kits,caterpillar lifting platform,Fire fighting Robot etc. It has better performances than other traditional dc motors.
