Product Description
Rated Voltage: 12v/24v
Rated Torque: 7 n.m
Speed: 100rpm
Rated Power: 50w
Max torque: 13n.m
Rated current: 10A
Protection Level: IP55
Control mode: RS232, CAN
| Quantity: | |
|---|---|
KY170DD01005-08G
keya

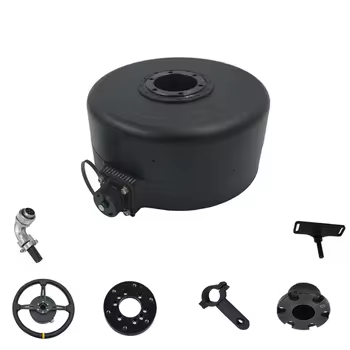

This eletric motor adopt direct drive motor scheme designe, the rated speed is 100rpm, you can install it to the steering wheel shaft directly. It built in controller, support RS232, CAN control, the rated voltage is 12V, rated torque is 7N.m, the peak torque can reach 13N.m, it is widely used in electric power steering system for self-driving robot tractor, it is for precision, agriculture, precision farming, digital farming etc.
Product Specification
The development of direct drive servo motor of agricultural machinery steering wheel is mainly based on precision agricultural machinery and driverless steering wheel. It is an effective way to realize the sustainable development of agriculture with high quality, high yield, low consumption and environmental protection. It can realize the fast, high efficiency, high precision and automatic operation on a large area of arable land, and can be used for multiple production such as land leveling, sowing, harvesting and pesticide spraying The production efficiency and land use efficiency have been greatly improved.
Key technologies and innovations:
a. Low moment of inertia and fast dynamic response;
b. The multi pole logarithm of rotor permanent magnet, the torque fluctuation coefficient of motor is small (＞ 3%);
c. Small volume (∅ 180 * 85, including the dimension of integrated controller);
d. The hollow shaft interface is convenient for quick connection and installation with the steering wheel of agricultural
machinery;
Permanent magnet direct drive servo motor is a kind of special control motor, which is used as the executive component of high-precision servo system. It is suitable for low-speed, large torque, and very compact installation space. In fact, in many automatic control systems, the motion speed of the control object is relatively low, such as: the control system of ground search radar antenna; the stability system of gyro platform; the rotation system of single crystal furnace; the precision drawing system, etc. in these control systems, if the gear deceleration drive is adopted, the accuracy of the system will be greatly reduced, and the inertia and reaction of the system will be increased Time, increase transmission noise. If the direct drive system composed of direct drive motor is used, it can run smoothly at low speed in a wide range, greatly improving the accuracy of the system and reducing the noise of the system. There are also some load running at a very low speed, close to the locked rotor state, or load shaft end to add a certain amount of brake back torque, these occasions, are suitable for the use of direct drive servo motor.
Company Overview
Jinan Keya Electron Science and Technology Co., Ltd, founded in 2001, has been trading in the research &development, manufacturing and sales of DC motor and control system for 15 years.
Company set technology, talent, management and other resources advantages, to effectively integrate, has maintained a healthy, stable and rapid growth.
The company has adopted ISO9001:2015 quality management system certification, products through the CE certification. More than 3000 large and medium-sized domestic equipment manufacturers designated as supporting products, and exported to the United States, Europe, Southeast Asia and other countries.
Company Photos
Production Certification
Product Usage
This tractor autopilot motor is mainly used in the navigation system of agricultural tractors, and the main sales season is November-February (for spring plowing) and June-August (for autumn harvest).
