RNZ-G550-M1

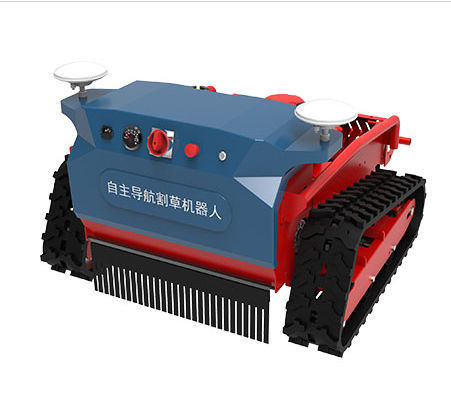

The mowing robot is an intelligent agricultural equipment that can be autonomously navigated and performs unmanned operations. It can operate independently according to the pre-set mowing area and mowing route, and has the characteristics of long battery life and simple operation. Using autonomous navigation mowing robots can reduce labor intensity and reduce operation costs, and meet customers; high efficiency, intelligence and data demands for mowing operations.
| name | Specilications | name | Specifcatian | |||
| Prcsuct model | RNZ-G550-M1 | Fuel type | 92# gascEne | |||
| Engine paraments | Loncin 224cc/452cc | engine stroke | four stroke | |||
| Start mode | Electrio start/msru | Charglng method | erator self-charglng | |||
| size | L1230×W1000×H600±50mm | curb weight | 230kg±30kg | |||
| Running speed | 0~3km/h | Battery life | 3-4h(single full oilcondition) | |||
| Mowing width | 550mm | mowing height | 20~150mm | |||
| climbing angle | 30° | Track material | Rubber tracks | |||
| battery paraments | DC24V 20Ah lead-acid battery | working temperature | 10℃~+55℃ | |||
| Communication | 4G/wifi/local base station | Dimensional deviation | ±10cm | |||
| APP function | Remote control of vehicle driving, point collection, automatic connection of points, array navigation route, support for curved path walking, vehicle body work information display, remote emergency stop and other functions | |||||
Product parameters
Mowing height:
The mowing rotary blade is made of hardened steel, the blade is hard, and can finely cut dense vegetation. And the blade adopts a liftable design, and the mowing height can be adjusted within the range of 30~120mm according to the desired height.
Cutting width:
The mowing width is 550mm, and the robot can cut grass in both forward and backward directions. The mowing area can reach 990m²/h, which is equivalent to the speed of 20 manual mowing. (The mowing blade can be customized to 800mm, 1000mm, etc.)
Working slope:
The robot has a low center of gravity and can work on a 35° slope. The operator can remotely control the robot away from dangerous areas such as steep slopes.
Performance characteristics
1. Strong power: The high-power motor with crawler structure can easily adapt to different terrain changes.
2. Intelligence: Equipped with Beidou navigation system, it can realize accurate autonomous navigation and complete intelligent unattended mowing operations.
3. High efficiency: The mowing area can reach 2.5 acres/h, reducing labor, and can complete the mowing of the grass in a short time, reducing time costs.
4. Safety: The robot has an intelligent safety system that can detect obstacles through safe edge touch to ensure safety and reliability during the operation.
5. Monitorable: It has real-time monitoring function and can continuously monitor the operation status of the robot, so as to realize real-time monitoring of mowing operations and intuitive display of data.
6. Easy to operate: remote control mowing operations, simple and easy to use, autonomous navigation operations, one-click mowing tasks, worry-free and labor-saving.
Application
agriculture, forestry, orchards, airports, power grid stations, river bank green land, industrial parks, municipal lawns, etc.
