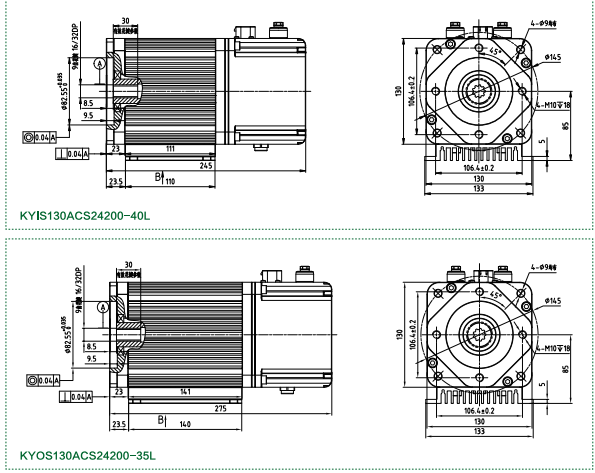

KYIS130AS24200-40L
Keya
| Product name | KYIS130ACS24200-40L |
| Project name | Parameters |
| Rated voltage | 24V±10% |
| Limited supply voltage | 18-32V |
| Motor rated power | 3500W |
| Rated current | 110A±5% |
| Rated speed | 3000RPM |
| Rated torque | 9.55N·m |
| Maximum speed | 4000RPM (rated voltage) |
| Instantaneous maximum current | 200A±5% |
| Instantaneous maximum torque | 16 N·m |
| Number of poles | 10 |
| Feedback signal | Encoder |
| Applicable motor | 1500-3500W |
| Ambient temperature | -25-+50℃ |
| Insulation performance | Input and output to housing DC600V, leakage current 0.07mA; insulation resistance 20MΩ or more |
| Connector | TE 776286-1 (control end connector) |
| Three-proof requirements | Meet the three-proof requirements (dustproof, moisture-proof, salt spray-proof) |
| Relative humidity | 0% ~ 90%RH , with condensation (25°C) |
| Vibration requirements | Frequency 5HZ-25HZ, amplitude 3mm, 0.09g; 25HZ-200HZ, amplitude 1.47mm, 116g |
| Protection level | IP67 |
| Cooling method | Natural cooling |
| Weight | 9.8kg |
The system has high efficiency, with an overall maximum efficiency of 93%.
The starting current is small and the torque is large.

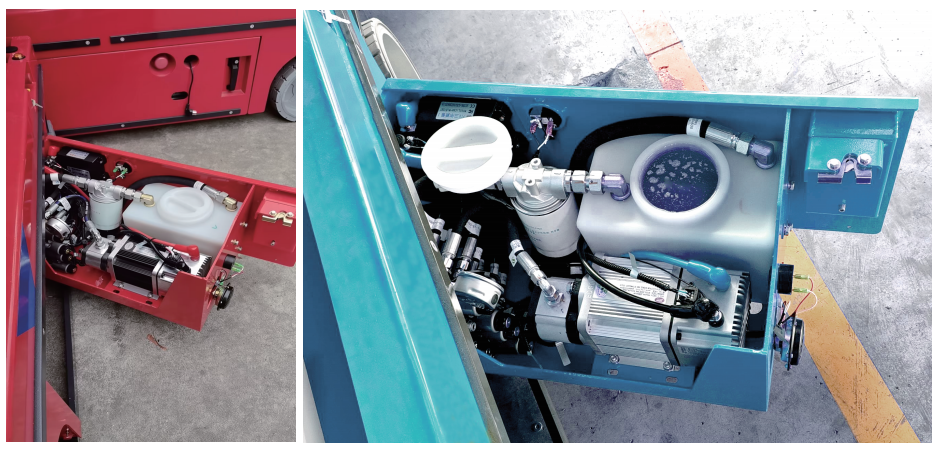

Integrated design, compact size, small footprint, easy installation
FOC vector control, high-precision encoder feedback, stable pressure output.
The whole machine is maintenance-free, and no carbon brushes need to be replaced.
The driver and motor have built-in independent temperature alarm thresholds and protection devices.
It can meet the use of harsh working conditions. In addition to the motor output shaft, the protection level is as high as IP67
Equipped with a power contactor pull-in abnormal alarm device.
The output shaft method is optional: (optical shaft flat key,
internal tooth spline and external tooth spline).
Designed by a professional R&D team, providing technical support
