24V 48V 72V 360A 400A 800A Brushed Dc Servo Drive

24V 48V 72V 360A 400A 800A Brushed Dc Servo Drive - Buy brushed dc servo drive, driver dc servo motor, industrial servo drives Product on Jinan Keya Electronic Science and Technology Co., Ltd
Availability:
Quantity:
Inquire

  • DC24/48DP360BL-R01

  • Keya

24V 48V 72V 360A 400A 800A Brushed Dc Servo Drive

24V 48V 72V 360A 400A 800A Brushed Dc Servo Drive - Buy brushed dc servo drive, driver dc servo motor, industrial servo drives Product on Jinan Keya Electronic Science and Technology Co., Ltd


Model: DC24DP360BL-R01

Product Description

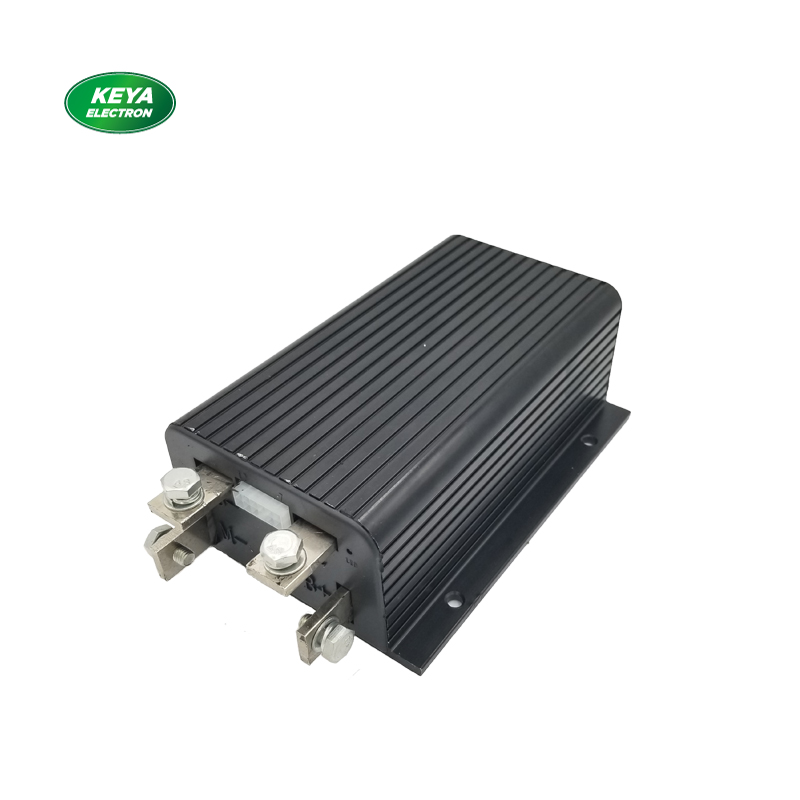

industrial servo drives


1. PWM pulse width modulation
2. Speed regulation ratio: 1:60
3. Speed regulation mode:
Model suffix with R01 means speed regulation mode of:
Potentiometer (10KΩ/2W)/signal   isolator (0-5V,0-10V,4-20mA)
Model suffix with B01 means speed regulation mode of:
Foot accelerator/the Hall handle
4. Input impedance: ≥10KΩ
5. Working voltage range: ±25% of nominal voltage
6. Soft start time: 1-5 S
7. Ambient temperature: -10ºC~+60ºC
8. Ambient humidity: relative humidity ≤80RH.(non condensing)
9. Current restriction protection
10. Remote start-stop can be realized
11. Applied for permanent magnet, separate excitation and series-excited motor
12. Thermal protection for controller cutting off output in case of overheating for controller to effectively protect controller and traveling crane safety.
13. Able to directly judge source of fault through luminous diode under working condition.
14. Stepless speed regulating and anti-phase braking control

15. Built-in precharging resistor and polarity protection diode provide convenience for installation and use
16. Under voltage and over voltage protection effectively protects storage battery and all components of controller assembly

17. 90 seconds no acceleration signal input can automatically cut off the power of contactor magnet coil to save the energy of storage battery.
Specification for DC24DP360BL-R01
Input voltage range DC24V (if you need 36VDC, kindly adivse)
Max output current 360A
1 hour current 140A
Operating mode Speed mode
Control ways Potentiometer (If you need 0-5V/0-10V control, please informed us in advance)
Protection Abnormalitise like over current, overheating, over voltage, less voltage and short circuit will start the protection function.
Temperature protection When the temperature is 85ºC, the controller will reduce output by overheating protection and stop output.
Working Temperature -10ºC --  +60ºC
Ambient humidity Relative humidity less than 80RH
Size L*W*H = 240*152*80 mm
Weight 3.5kg


Related Products


Model Rated volt/V 1 hour current Max current Controller mode CW/CCW
DC24/36/48/72DP200BL-R01 24V 36V 48V 72V 100A 200A Potentiometer,  0-5V NO
DC24/36/48/72DP360BL-R01 24V 36V 48V 72V 140A 360A Potentiometer, 0-5V NO
DC24/36/48/72DP500BL-R01 24V 36V 48V 72V 200A 500A Potentiometer, 0-5V NO
DC24/36/48/72DP600BL-R01 24V 36V 48V 72V 280A 600A Potentiometer, 0-5V NO
DC24/36/48/72DP800BL-R01 24V 36V 48V 72V 380A 800A Potentiometer, 0-5V NO
DC24/36/48/72DP200BL-R01ZC 24V 36V 48V 72V 100A 200A Potentiometer, 0-5V YES
DC24/36/48/72DP360BL-R01ZC 24V 36V 48V 72V 140A 360A Potentiometer, 0-5V YES
DC24/36/48/72DP500BL-R01ZC 24V 36V 48V 72V 200A 500A Potentiometer, 0-5V YES
DC24/36/48/72DP600BL-R01ZC 24V 36V 48V 72V 280A 600A Potentiometer, 0-5V YES
DC24/36/48/72DP800BL-R01ZC 24V 36V 48V 72V 380A 800A Potentiometer, 0-5V YES


Products Application Cases Display
This series servo motor is our company latest research and development iterm, have good customer feedback, be widely used in all kinds of intelligent robot, for example: AGV( automatic guided vehicle) system, intelligent vehicle robot, caterpillar vehicle, crawler vehicle, exploder clearing robot, fire fighting robot, rescue robot, medical robot, underwater robot, routing inspection robot, customer service robot, shopping guide robot, receptionist robot, theme park robot etc.
Packing & Delivery
Company Profile
Jinan Keya Electron Science and Technology Co., Ltd, founded in 2001, has been trading in the research &development, manufacturing and sales of DC motor and control system for 15 years. Company set technology, talent, management and other resources advantages, to effectively integrate, has maintained a healthy, stable and rapid growth. The company has adopted ISO9001:2008 quality management system certification, products through the CE certification. More than 3000 large and medium-sized domestic equipment manufacturers designated as supporting products, and exported to the United States, Europe, Southeast Asia and other countries.
Exhibition
Our customers
CE
FAQ
1.    Q: What are your main products?      A: We are specialize in BLDC SERVO MOTOR & DRIVER
2.    Q: How long have you been in this field?      A: More than 15 years in this field.
3.    Q: Do you have your own R&D team?      A: Yes. R&D is our core competitiveness, continuous innovation is just what we are seeking for all the time. Some of our engineers have more than 20years experience in the industry, and we also cooperate with colleges, scientific research institutions and large enterprises.
4.    Q: How soon can you deliver the goods?      A: That depends on the exact model you order. For regular products, usually we will prepare some units in stock, we can deliver them within 3 working days.
5.    Q: Can you make the product according to customer’s requirements?      A: Yes, welcome costom-made products. 6.    Q: What is your payment term?      A: You can pay by TT, Paypal, Western Union.
