48v Bldc Motor 4kw Brushless Dc Motor with Brake Tfpm for Heavy AGV Robotics Industry And Equipment Mobile Platforms

48v 1000w high power small size bldc motor with hall sensor 3000rpm brushless dc motor bldc 3.2N.m, find complete details about 48V 700W Brushless Short Dc Servo Motor with Encoder Agv Motor, dc servo motor, brushless servo motor, brushless motor with encoder - Jinan Keya Electronic Science and Technology Co., Ltd
Availability:
Quantity:
  • KY215ACS0440-15B

  • Keya

  • KY215ACS0440-15B

Description


KY215ACS0440-15B Is the disk-type permanent magnet motor,the structure is small size, light weight, the motor's stator structure is convenient for the motor core and winding cooling, can obtain a larger heat dissipation area.this motor are widely used in electric forklifts, heavy AGV, lawnmower and drive, marine electric propulsion, wind power and industrial equipment mobile platforms etc.


48v bldc motor 4kw brushless dc motor with brake tfpm for heavy AGV Robotics industry and equipment mobile platforms




DC Servo motor datasheet

Motor type
bldc motor, servo motor, pmsm motor
Rated voltage
48V
Rated power
4000W
Rated speed
1500rpm
Peak speed 1950rpm
Rated torque
25.5N.m
Peak torque
76N.m
Rated current
104A
Instantaneous max current 260A

DC servo motor connect cable

dc servo motor wiring

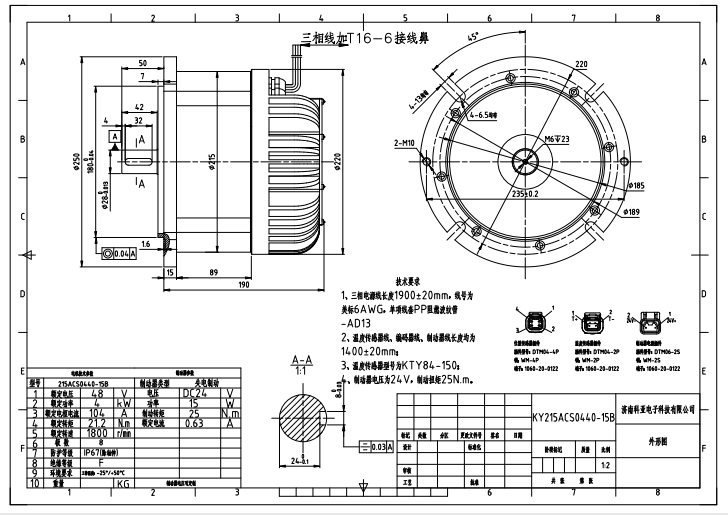

DC Servo motor drawing

KY215ACS0440-15

11


Related product



Model Volts Power RPM frame
KY40ACS02005-30 24V 50w 3000 KY40ACS
KY40ACS0201-30 24V 100w 3000
KY60ACS0402-30 48V 200w 3000 KY60ACS
KY60ACS0404-30 48V 400w 3000
KY80ACS0407-30-3P 48V 700w 3000 KY80ACS
KY80ACS0410-30-3P 48V 1000w 3000
KY110ACS0408-15 48V 800w 1500 KY110ACS
KY110ACS0410-15 48V 1000w 1500
KY110ACS0415-15 48V 1500w 1500
KY130ACS0410-15 48V 1000w 1500 KY130ACS
KY130ACS0415-30 48V 1500w 3000
KY130ACS0420-15 48V 2000w 1500
KY130ACS0420-30 48V 2000w 3000
KY130ACS0422-30 48V 2200w 3000
KY130ACS0425-30 48V 2500w 3000
KY130ACS0430-15 48V 3000w 1500
KY130ACS0430-30 48V 3000w 3000
KY130ACS0435-30 48V 3500w 3000
KY130ACS0440-30 48V 4000w 3000
KY130ACS0915-30 96V 1500w 3000
KY130ACS0920-30 96V 2000w 3000
KY130ACS0922-30 96V 2200w 3000
KY130ACS0930-30 96V 3000w 3000
KY130ACS0935-30 96V 3500w 3000
KY130ACS0940-30 96V 4000w 3000
KY130ACS0950-30 96V 5000w 3000
KY200ACS0450-30-35A 48V 5000w 3000 KY200ACS
KY200ACS0950-30-35A 96V 5000w 3000
KY200ACS0975-30-35A 96V 7500w 3000
KY200ACS09100-30-35A 96V 10kw 3000
KY215ACS0440-15 48V 4000w 1500 KY215ACS
KY215ACS0460-15 48V 6000w 1500
KY215ACS0460-15 48V 6000w 1500
KY215ACS0740-15 72V 4000w 1500
KY215ACS0760-30 72V 6000w 3000
KY215ACS09100-30 96V 10kw 3000
KY80AS0202-15 24V 200w 1500 KY80AS
KY80AS0204-15 24V 400w 1500
KY80AS0204-30 24V 400w 3000
KY80AS0402-15 48V 200w 1500
KY80AS0404-15 48V 400w 1500
KY80AS0404-30 48V 400w 3000
KY110AS0205-15 24V 500w 1500 KY110AS
KY110AS0207-15 24V 700w 1500
KY110AS0210-15 24V 1000w 1500
KY110AS0407-30 48V 700w 3000
KY110AS0408-15 48V 800w 1500
KY110AS0410-15 48V 1000w 1500
KY110AS0415-15 48V 1500w 1500
KY110AS0415-30 48V 1500w 3000
KY110AS0420-25 48V 2000w 2500
KY130AS0205-12 24V 500w 1200 KY130AS
KY130AS0205-15 24V 500w 1500
KY130AS0215-15 24V 1500w 1500
KY130AS0410-15 48V 1000w 1500
KY130AS0415-15 48V 1500w 1500
KY130AS0420-15 48V 2000w 1500
KY130AS0430-15 48V 3000w 1500
KY130AS0430-30 48V 3000w 3000
KY130AS0436-15 48V 3600w 1500
KY200AS0450-15 48V 5000w 1500 KY200AS
KY200AS0475-15 48V 7500w 1500
KY200AS0950-15 96V 5000w 1500
KY200AS0960-15 96V 6000w 1500
KY200AS0975-15 96V 7500w 1500
KY200AS09100-15 96V 10kw 1500
KY200AS09150-15 96V 15kw 1500


DC servo motor Applicatin

this motor are widely used in electric forklifts, heavy AGV, lawnmower and drive, marine electric propulsion, wind power and industrial equipment mobile platforms etc.

Automatic guided vehicle
