48v brushless servo motor 800w
Product Overview
1. Protection grade: IP55, insulation grade: F
2. Winding overhang structure optimization, to minimize the copper loss and iron loss minimization, small volume, light weight, low temperature rise, high efficiency
3. Super high coercivity, the maximum magnetic energy product NdFe35 permanent magnetic materials, strong resistance to demagnetization, motor performance is stable.
4. Low noise, low vibration, low moment of inertia.
5. High torque, fast dynamic response, wide speed range, strong overload capacity (four times)
Product Features
1. High Torque to inertia ratio&up to 25000Nm/kgm2
2. Fast dynamic response *time constant <20ms
3. Wide speed adjusting&feedback up to 1000:1
4. Steady speed precision up to 0.5%
5. High overload, 2Mn/30s,3 .5N.m/10s
6. Small volume and light
7. Silent,the lowest noise is only 45dB(A)
8. Protected with IP55,Class F insulation
Industry class
1.The altitude should be over 1000 meters above sea level
2.Environment temperature:-25℃~+50℃
3.The month average tallest relative humidity is 90%,at the same the month average lowest temperature is less than 25℃
48v brushless servo motor 800w

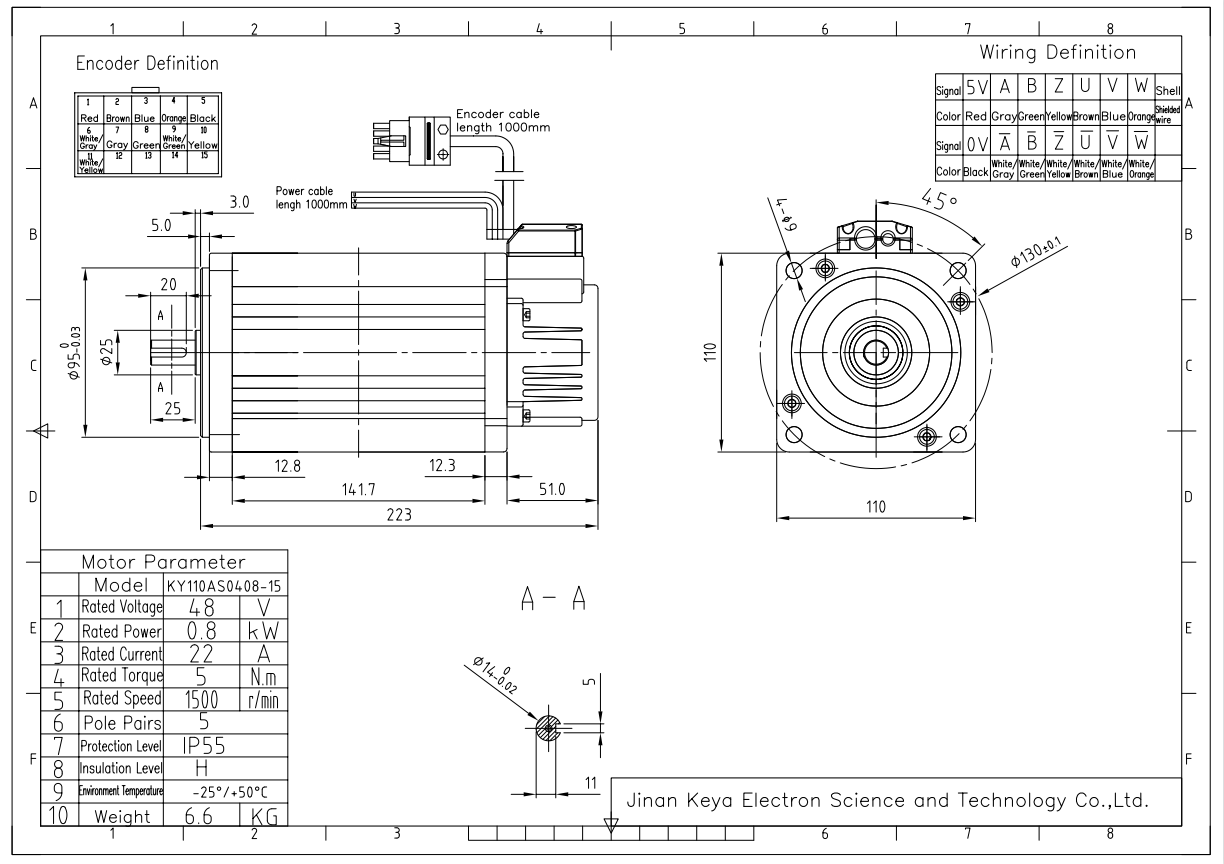

Datasheet
| Motor type | high torque 48v dc motor, dc gear motor, brushless servo motor |
| Rated voltage | 48V |
| Rated power | 800W |
| Rated speed | 1500rpm |
| Rated torque | 5N.m |
| Peak torque | 17.9N.m |
| Number of poles | 5pairs |
| Encoder | optical, 2500ppr |
Connect cable
Notice: the standard motor don't have brake, if you need brake, kindly advise.
Related servo motor
| Model | Volts | Power | RPM | Rated torque | Peak torque | frame |
| KY80AS0404-30-3P | 48V | 400W | 3000 | 1.27N.m | 3.8N.m | 80mm |
| KY80AS0407-30-3P | 48V | 700W | 3000 | 2.4N.m | 7.1N.m | |
| KY80AS0410-30-3P | 48V | 1000W | 3000 | 3.2N.m | 9.6N.m | |
| KY80AS0202-15 | 24V | 200w | 1500 | 1.27N.m | 3.8N.m | |
| KY80AS0402-15 | 48V | 200w | 1500 | 1.27N.m | 3.8N.m | |
| KY80AS0204-15 | 24V | 400w | 1500 | 2.55N.m | 7.6N.m | |
| KY80AS0404-15 | 48V | 400w | 1500 | 2.55N.m | 7.6N.m | |
| KY80AS0204-30 | 24V | 400w | 3000 | 1.27N.m | 3.8N.m | |
| KY80AS0404-30 | 48V | 400w | 3000 | 1.27N.m | 3.8N.m | |
| KY80AS0407-30 | 48V | 700w | 3000 | 2.3N.m | 6.9N.m | |
| KY110AS0205-15 | 24V | 500w | 1500 | 3.18N.m | 9.5N.m | 110mm |
| KY110AS0207-15 | 24V | 700w | 1500 | 4.7N.m | 14.1N.m | |
| KY110AS0408-15 | 48V | 800w | 1500 | 5.0N.m | 15N.m | |
| KY110AS0210-15 | 24V | 1kw | 1500 | 6.3N.m | 18.9N.m | |
| KY110AS0410-15 | 48V | 1kw | 1500 | 6.3N.m | 18.9N.m | |
| KY110AS0412-25 | 48V | 1.2kw | 2500 | 4.5N.m | 13.5N.m | |
| KY110AS0415-15 | 48V | 1.5kw | 1500 | 9.5N.m | 28.5N.m | |
| KY110AS0415-30 | 48V | 1.5kw | 3000 | 4.7N.m | 14.1N.m | |
| KY110AS0420-25 | 48V | 2kw | 2500 | 7.6N.m | 22.8N.m | |
| KY130AS0410-15 | 48V | 1kw | 1500 | 6.3N.m | 18.9N.m | 130mm |
| KY130AS0415-15 | 48V | 1.5kw | 1500 | 9.5N.m | 28.5N.m | |
| KY130AS0430-15 | 48V | 3kw | 1500 | 19.1N.m | 57.3N.m | |
| KY130AS0430-30 | 48V | 3kw | 3000 | 9.5N.m | 28.5N.m | |
| KY200AS0450-15 | 48V | 5kw | 1500 | 31.8 | 63.6 | 200mm |
| KY200AS0975-15 | 96V | 7.5kw | 1500 | 47.7 | 95.4 | |
| KY200AS09100-15 | 96V | 10kw | 1500 | 63.6 | 127.2 | |
| KY215ACS0440-15 | 48V | 4kw | 1500 | 25.5 | 76 | 215mm |
| KY215ACS0460-15 | 48V | 6kw | 1500 | 38.2 | 110 | |
| Encoder: 2500ppr, optical, if you need other specificaiton, please advise. | ||||||
| Brake: if you need brake, kindly advise. | ||||||
| Accept custom-made motor, please contact us for more information. | ||||||
Applicatin
It has been widely used for many applications, eg., Mobile robot, Automatic Guided Vehicle,smart self driving robot vehicle platforms/kits,caterpillar lifting platform,Fire fighting Robot etc. It has better performances than other traditional dc motors.
AGV
Fire-fighting Robot
Logistics shuttle transport Robot
Wheeled Robot
Agricultural Robot
Crawler lift truck
Matching controller
KYDBL4850-2E
KYDAS4850-1E
