KY130ACS0422-30
Keya
KY130ACS0422-30
ACS Series 130mm 48V 2200W 3000rpm DC Servo Motor With 2500ppr Magnetic Encoder
Model: KY130ACS0422-30
Product Description
1. Protection grade: IP55, insulation grade: F
2. Winding overhang structure optimization, to minimize the copper loss and iron loss minimization, small volume, light weight, low temperature rise, high efficiency
3. Super high coercivity, the maximum magnetic energy product NdFe35 permanent magnetic materials, strong resistance to demagnetization, motor performance is stable.
4. Low noise, low vibration, low moment of inertia.
5. High torque, fast dynamic response, wide speed range, strong overload capacity (four times)
Product Features
*Lower temperature rise, conducive to the overall heat dissipation design of the user.
*Higher torque overload capacity; more conducive to the application of various mobile robots.
*High efficiency, greatly extending battery life.
*Low speed and high torque, effectively reduce the wear on the speed reduction mechanism and prolong the service life of the reduction mechanism.
*Smaller vibration and lower noise make users more comfortable.
*The insulation class of the motor is H, which effectively prolongs the service life of the motor and ensures excellent overload capacity.

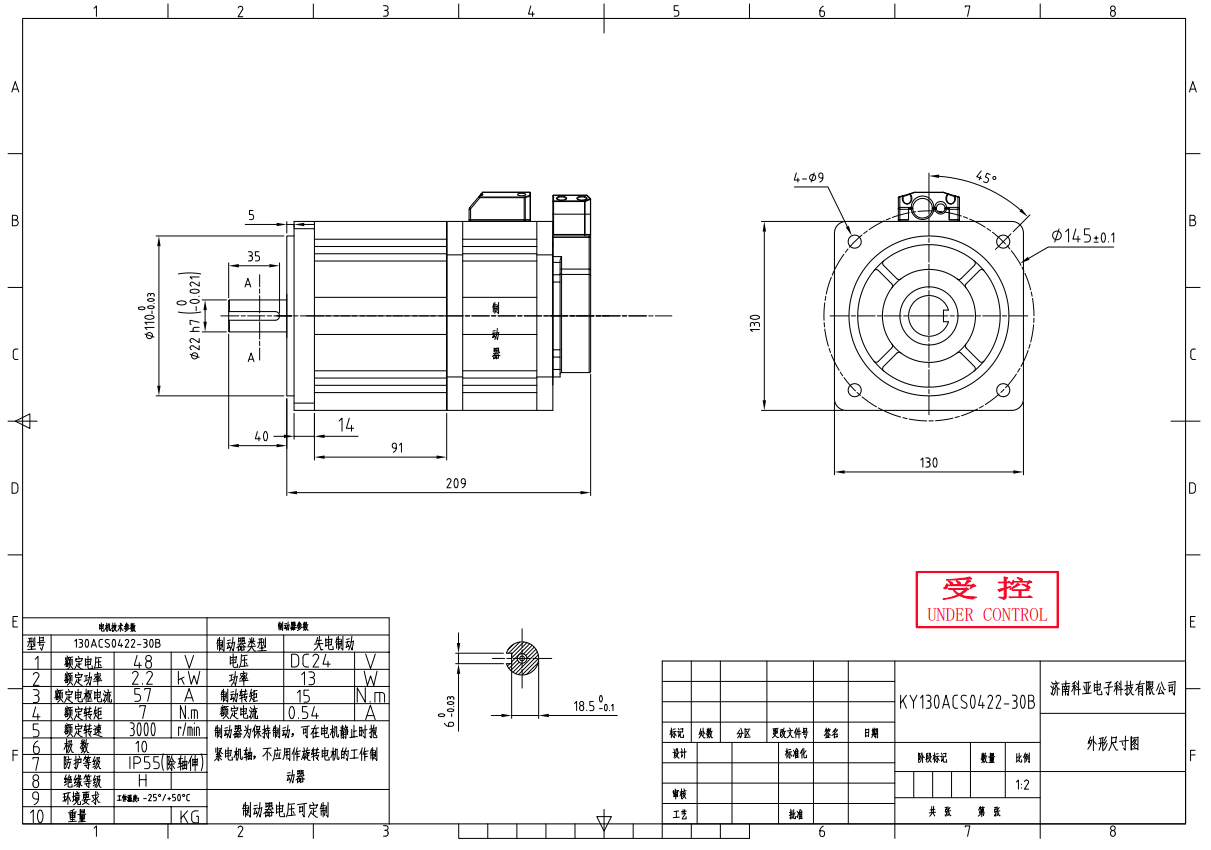

Motor drawing
KY130ACS0422-30B (with 24vdc brake)
Specifications
Motor type | DC Servo Motor |
Rated voltage | 48V |
Rated power | 2200W |
Rated speed | 3000rpm |
Rated torque | 7N.m |
Number of poles | 10 |
Encoder | Magnetic encoder, 2500ppr |
Related servo motors
Model | Volts | Power | RPM | Frame Size |
KY130ACS0410-15 | 48V | 1000w | 1500 | 130mm |
KY130ACS0415-30 | 48V | 1500w | 3000 | |
KY130ACS0420-15 | 48V | 2000w | 1500 | |
KY130ACS0420-30 | 48V | 2000w | 3000 | |
KY130ACS0422-30 | 48V | 2200w | 3000 | |
KY130ACS0425-30 | 48V | 2500w | 3000 | |
KY130ACS0430-15 | 48V | 3000w | 1500 | |
KY130ACS0430-30 | 48V | 3000w | 3000 | |
KY130ACS0435-30 | 48V | 3500w | 3000 | |
KY130ACS0440-30 | 48V | 4000w | 3000 | |
KY130ACS0915-30 | 96V | 1500w | 3000 | |
KY130ACS0920-30 | 96V | 2000w | 3000 | |
KY130ACS0922-30 | 96V | 2200w | 3000 | |
KY130ACS0930-30 | 96V | 3000w | 3000 | |
KY130ACS0935-30 | 96V | 3500w | 3000 | |
KY130ACS0940-30 | 96V | 4000w | 3000 | |
KY130ACS0950-30 | 96V | 5000w | 3000 |
Encoder: 2500ppr, optical, if you need other specificaiton, please advise.
Brake: if you need brake, kindly advise.
Customization is available, please contact us for more information.

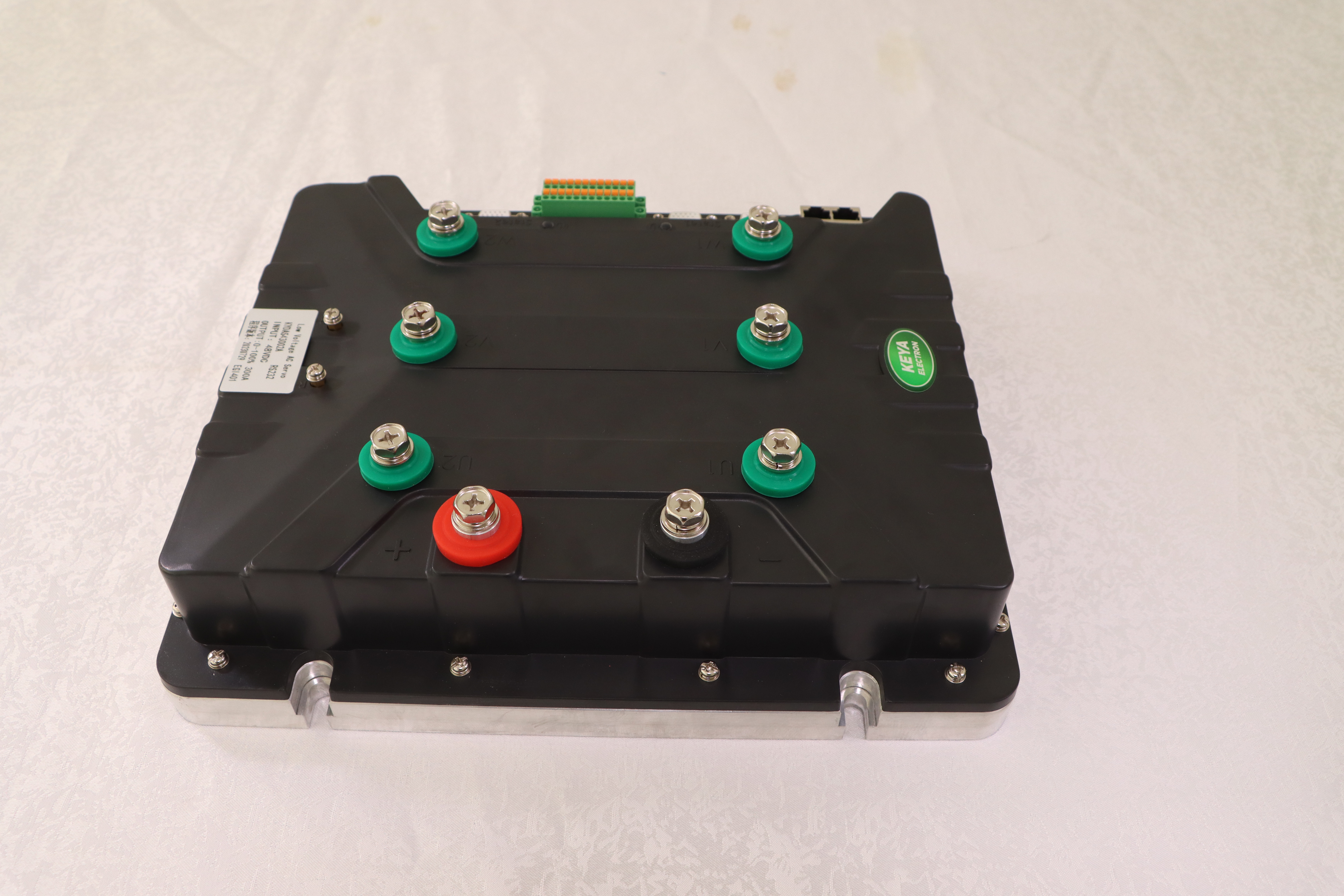

Matched motor controllers: KYDAS41201A, KYDAS41202A
Application
It has been widely used for many applications, eg., Mobile robot, Automatic Guided Vehicle,smart self driving robot vehicle platforms/kits,caterpillar lifting platform,Fire fighting Robot etc. It has better performances than other traditional dc motors.
This series servo motor is our company latest research and development iterm, have good customer feedback, be widely used in all kinds of intelligent robot, for example: AGV( automatic guided vehicle) system, intelligent vehicle robot, caterpillar vehicle, crawler vehicle, exploder clearing robot, fire fighting robot, rescue robot, medical robot, underwater robot, routing inspection robot, customer service robot, shopping guide robot, receptionist robot, theme park robot etc.
AGV
Fire-fighting Robot
Logistics shuttle transport Robot
Wheeled Robot
Agricultural Robot
Crawler lift truck
Company profile
Jinan Keya Electron Science and Technology Co., Ltd. was established in 2003 and is located at No. 1 Zidong Avenue, Tianqiao District, Jinan City, Shandong Province. It adheres to the enterprise spirit of "integrity, pragmatism, hard work, innovation" and is committed to the R&D, manufacturing and sales of DC servo motors and DC servo motor drivers. As a national high-tech enterprise, after years of development, it has formed a company specializing in DC servo motors, explosion-proof DC servo motors, DC servo motor drivers, direct drive motors, DC brushless drivers, PMSM motors for hydraulic pump stations, robot joint motors, frameless torque motors, coreless DC motors, and steering wheel motors etc.
Exhibition
FAQ
1. Q: What are your main products?
A: We specialize in BLDC SERVO MOTORS, DRIVERS, Auto steering motors, joint motors for legged robots etc.
2. Q: How long have you been in this field?
A: More than 20 years.
3. Q: Do you have your own R&D team?
A: Yes. R&D is our core competitiveness, continuous innovation is just what we are seeking for all the time. Some of our engineers have more than 20 years experience in the industry, and we also cooperate with colleges, scientific research institutions and large enterprises.
4. Q: How soon can you deliver the goods?
A: That depends on the exact model you order. For regular products, usually we will prepare some units in stock, we can deliver them within 3 working days.
5. Q: Can you make the product according to customer's requirements?
A: Yes, welcome costom-made products.
6. Q: What is your payment term?
A: You can pay by TT, Paypal, etc.
