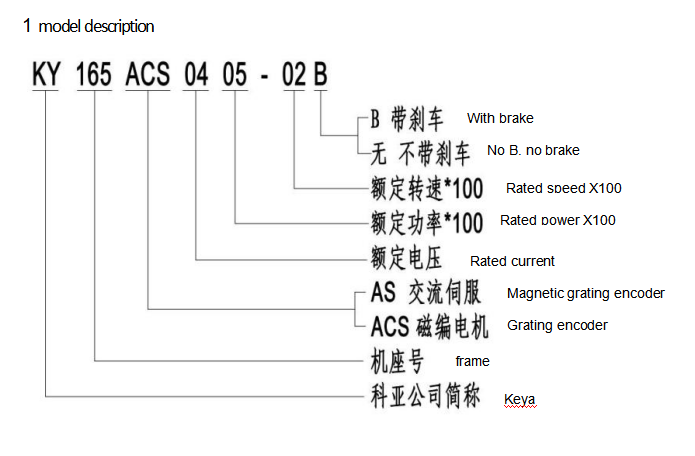

KY165ACS0405-02B

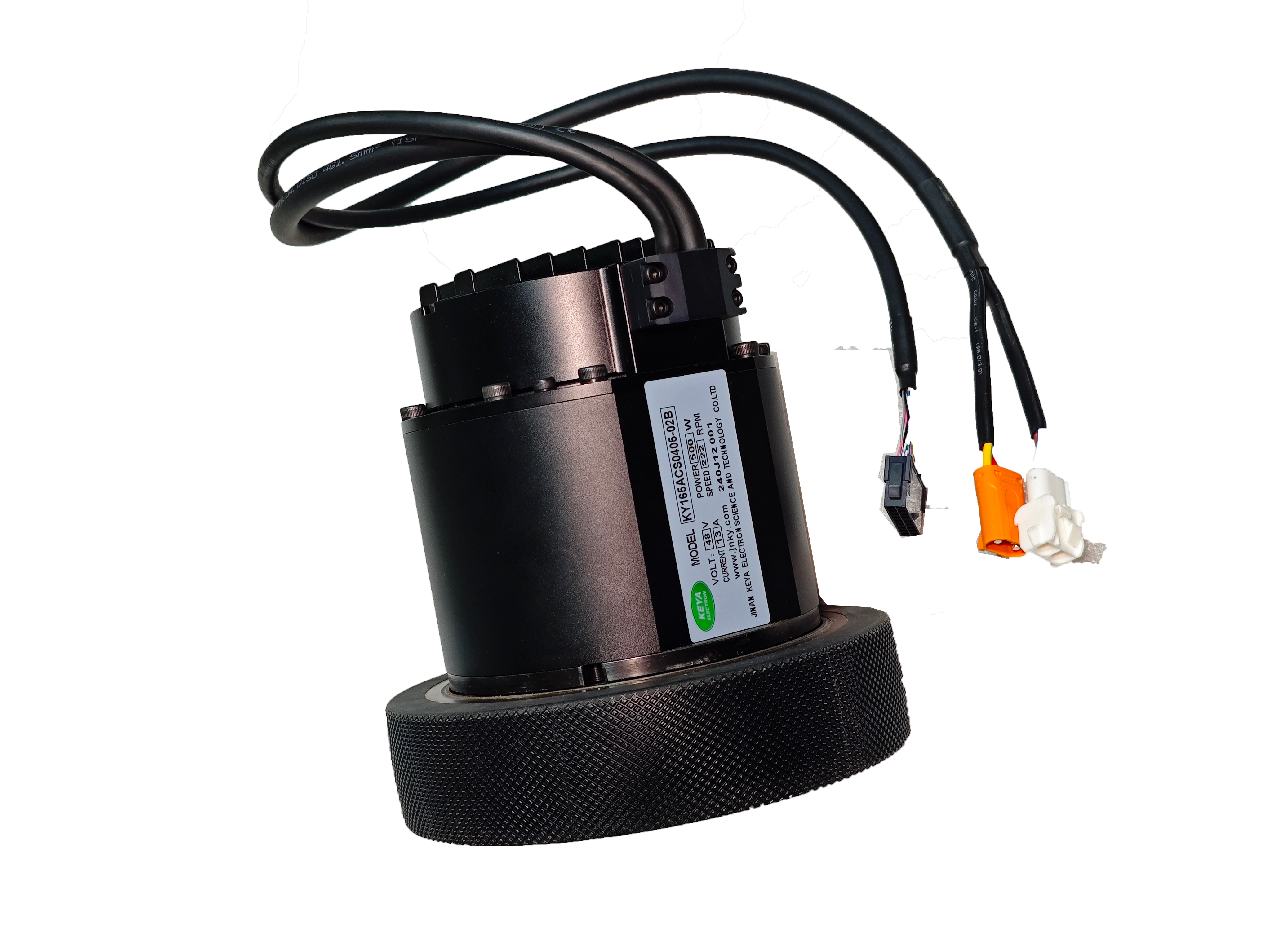

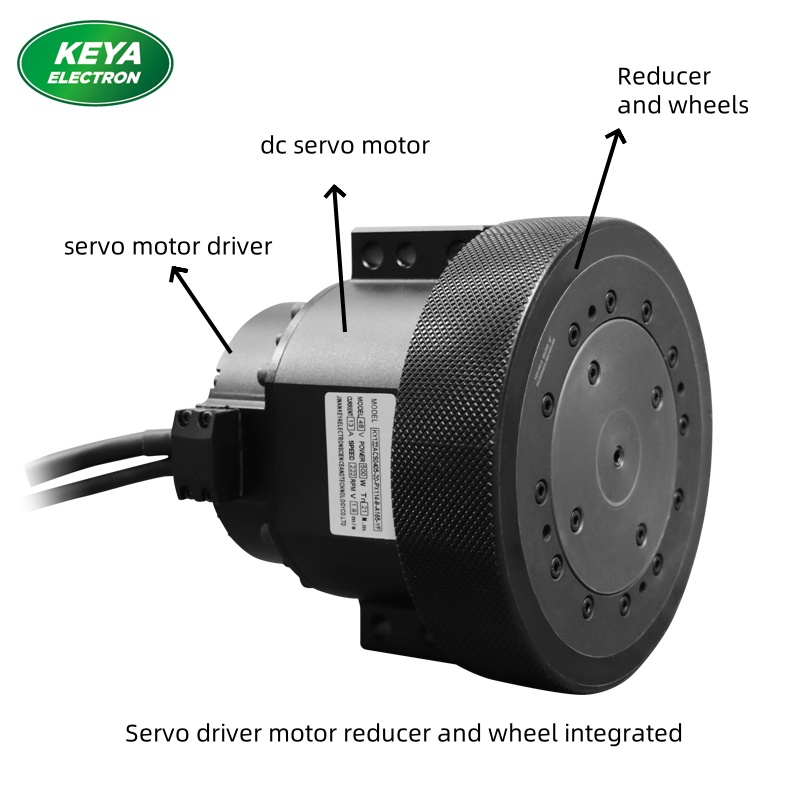

Servo integrated wheel for AGV

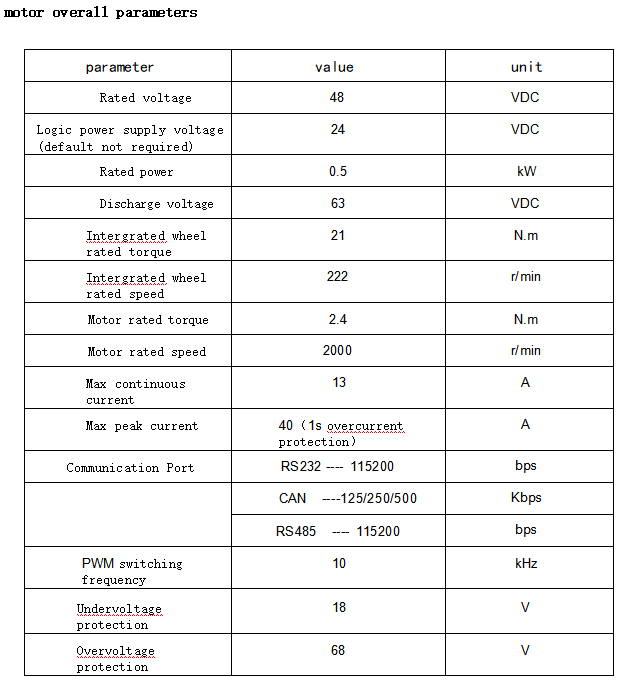

l Input voltage：24V-60V；

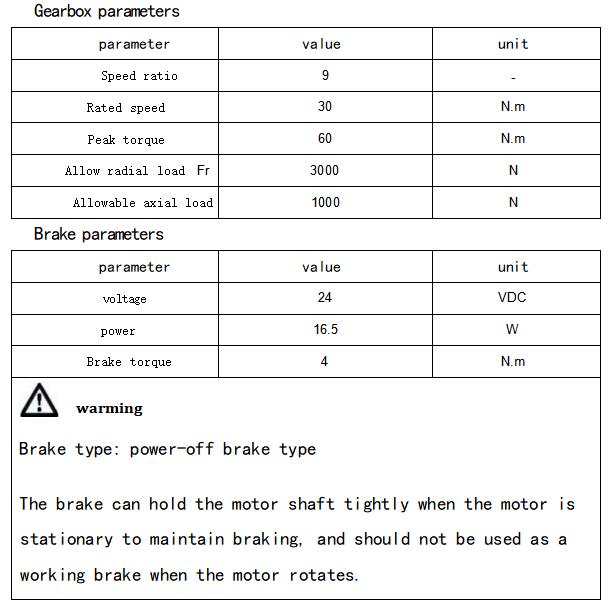

l Brake control voltage：24V；
l Over voltage alarm voltage：68V；
l Under voltage alarm voltage：18V.
l Operating temperature：-25～55℃（based on environment temperature）,
Storage temperature：-35～65℃（based on environment temperature）；
l Humidity：5%--90%RH 、condensation（25℃) ;
l Protect level：IP54；
l Insulation performance：input to the chassis DC600V，leakage current 0.07mA.The insulation resistance is 20MΩ more；
l Three-proof requirements：Meet the requirements of three defenses（dust-proof、moisture proof、salt spray proof）；
l Vibration requirements：frequency 5HZ~25HZ,amplitude 3mm，0.09g. 25HZ~200HZ,amplitude 1.47mm，116g.Horizontal, vertical, and longitudinal directions are 30min in each direction；
l Cooling method： natural cooling.
l Working mode：speed mode, position mode, torque mode；
l Feedback part：magnetic encoder；
l Control part：CAN2.0 、CANopen 、RS232 、RS485；
l Can be controlled and monitored through CAN bus networking；
l Realize motor speed control and data reading through RS232；
l Internal temperature monitoring and protection by built-in driver；
l Over current protection；
l Over voltage and undervoltage protection；
l Stall and over speed protection；
l Motor short circuit protection.

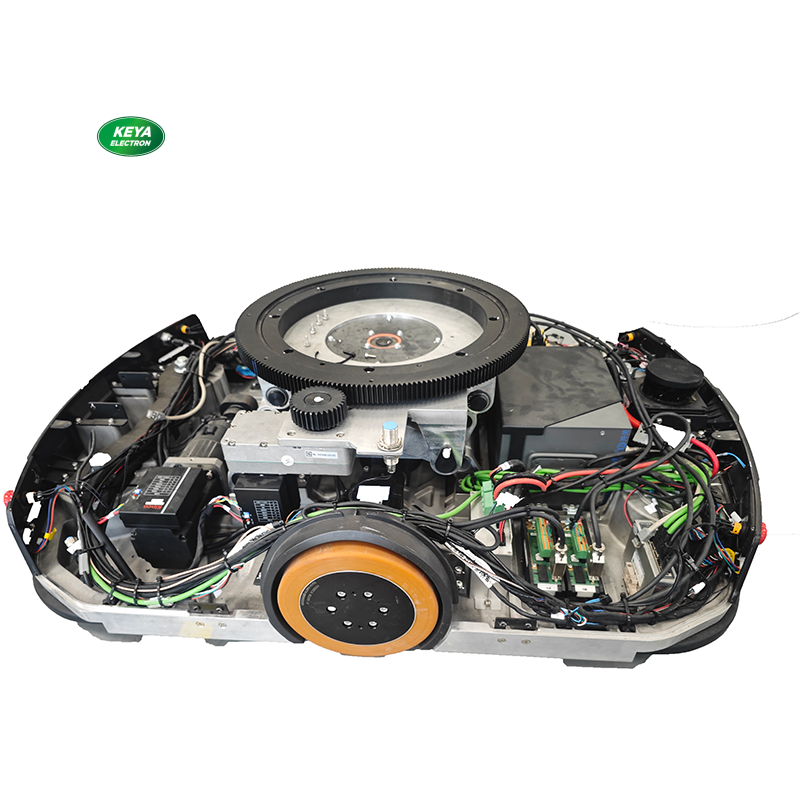

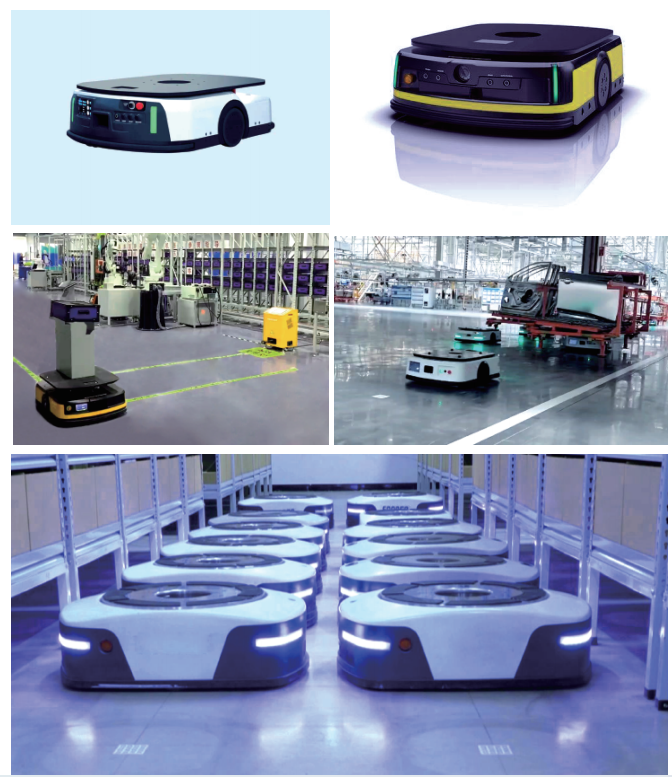

AGV, AMR， Hidden robots and load mobile robots, etc
