KY130ACS0950-30
Keya
KY130ACS0950-30

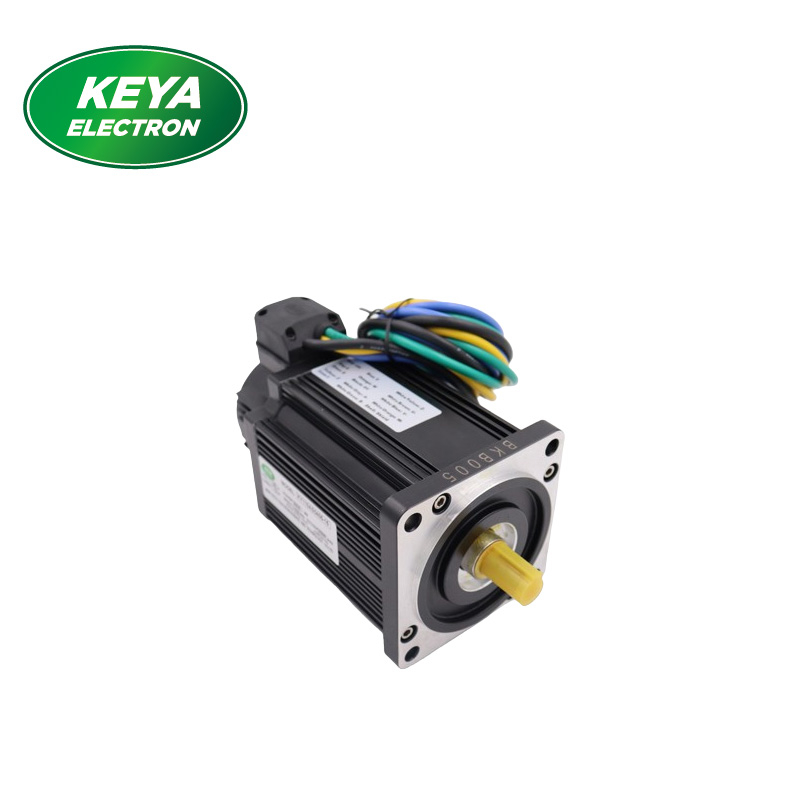

China Supplier BLDC Servo Motor With Encoder 96v 5000w
Product Description
1. Protection grade: IP55, insulation grade: F
2. Winding overhang structure optimization, to minimize the copper loss and iron loss minimization, small volume, light weight, low temperature rise, high efficiency
3. Super high coercivity, the maximum magnetic energy product NdFe35 permanent magnetic materials, strong resistance to demagnetization, motor performance is stable.
4. Low noise, low vibration, low moment of inertia.
5. High torque, fast dynamic response, wide speed range, strong overload capacity (four times)
Product Features
*Lower temperature rise, conducive to the overall heat dissipation design of the user. *Higher torque overload capacity; more conducive to the application of various mobile robots. *High efficiency, greatly extending battery life. *Low speed and high torque, effectively reduce the wear on the speed reduction mechanism and prolong the service life of the reduction mechanism. *Smaller vibration and lower noise make users more comfortable. *The insulation class of the motor is H, which effectively prolongs the service life of the motor and ensures excellent overload capacity.Industry class
1.The altitude should be over 1000 meters above sea level
2.Environment temperature:-25℃~+50℃
3.The month average tallest relative humidity is 90%,at the same the month average lowest temperature is less than 25℃
96V 3500W DC Servo Motor High Torque
Specification
Motor type | China Supplier BLDC Servo Motor With Encoder 96v 5000w |
Rated voltage | 96V |
Rated power | 5000W |
Rated speed | 3000rpm |
Rated torque | 12.7N.m |
Number of poles | 5pairs |
Encoder | optical, 2500ppr |
Related servo motor
Model | Volts | Power | RPM | frame |
KY40ACS02005-30 | 24V | 50w | 3000 | KY40ACS |
KY40ACS0201-30 | 24V | 100w | 3000 | |
KY60ACS0402-30 | 48V | 200w | 3000 | KY60ACS |
KY60ACS0404-30 | 48V | 400w | 3000 | |
KY80ACS0407-30-3P | 48V | 700w | 3000 | KY80ACS |
KY80ACS0410-30-3P | 48V | 1000w | 3000 | |
KY110ACS0408-15 | 48V | 800w | 1500 | KY110ACS |
KY110ACS0410-15 | 48V | 1000w | 1500 | |
KY110ACS0415-15 | 48V | 1500w | 1500 | |
KY130ACS0410-15 | 48V | 1000w | 1500 | KY130ACS |
KY130ACS0415-30 | 48V | 1500w | 3000 | |
KY130ACS0420-15 | 48V | 2000w | 1500 | |
KY130ACS0420-30 | 48V | 2000w | 3000 | |
KY130ACS0422-30 | 48V | 2200w | 3000 | |
KY130ACS0425-30 | 48V | 2500w | 3000 | |
KY130ACS0430-15 | 48V | 3000w | 1500 | |
KY130ACS0430-30 | 48V | 3000w | 3000 | |
KY130ACS0435-30 | 48V | 3500w | 3000 | |
KY130ACS0440-30 | 48V | 4000w | 3000 | |
KY130ACS0915-30 | 96V | 1500w | 3000 | |
KY130ACS0920-30 | 96V | 2000w | 3000 | |
KY130ACS0922-30 | 96V | 2200w | 3000 | |
KY130ACS0930-30 | 96V | 3000w | 3000 | |
KY130ACS0935-30 | 96V | 3500w | 3000 | |
KY130ACS0940-30 | 96V | 4000w | 3000 | |
KY130ACS0950-30 | 96V | 5000w | 3000 | |
KY200ACS0450-30-35A | 48V | 5000w | 3000 | KY200ACS |
KY200ACS0950-30-35A | 96V | 5000w | 3000 | |
KY200ACS0975-30-35A | 96V | 7500w | 3000 | |
KY200ACS09100-30-35A | 96V | 10kw | 3000 | |
KY215ACS0440-15 | 48V | 4000w | 1500 | KY215ACS |
KY215ACS0460-15 | 48V | 6000w | 1500 | |
KY215ACS0460-15 | 48V | 6000w | 1500 | |
KY215ACS0740-15 | 72V | 4000w | 1500 | |
KY215ACS0760-30 | 72V | 6000w | 3000 | |
KY215ACS09100-30 | 96V | 10kw | 3000 | |
KY80AS0202-15 | 24V | 200w | 1500 | KY80AS |
KY80AS0204-15 | 24V | 400w | 1500 | |
KY80AS0204-30 | 24V | 400w | 3000 | |
KY80AS0402-15 | 48V | 200w | 1500 | |
KY80AS0404-15 | 48V | 400w | 1500 | |
KY80AS0404-30 | 48V | 400w | 3000 | |
KY110AS0205-15 | 24V | 500w | 1500 | KY110AS |
KY110AS0207-15 | 24V | 700w | 1500 | |
KY110AS0210-15 | 24V | 1000w | 1500 | |
KY110AS0407-30 | 48V | 700w | 3000 | |
KY110AS0408-15 | 48V | 800w | 1500 | |
KY110AS0410-15 | 48V | 1000w | 1500 | |
KY110AS0415-15 | 48V | 1500w | 1500 | |
KY110AS0415-30 | 48V | 1500w | 3000 | |
KY110AS0420-25 | 48V | 2000w | 2500 | |
KY130AS0205-12 | 24V | 500w | 1200 | KY130AS |
KY130AS0205-15 | 24V | 500w | 1500 | |
KY130AS0215-15 | 24V | 1500w | 1500 | |
KY130AS0410-15 | 48V | 1000w | 1500 | |
KY130AS0415-15 | 48V | 1500w | 1500 | |
KY130AS0420-15 | 48V | 2000w | 1500 | |
KY130AS0430-15 | 48V | 3000w | 1500 | |
KY130AS0430-30 | 48V | 3000w | 3000 | |
KY130AS0436-15 | 48V | 3600w | 1500 | |
KY200AS0450-15 | 48V | 5000w | 1500 | KY200AS |
KY200AS0475-15 | 48V | 7500w | 1500 | |
KY200AS0950-15 | 96V | 5000w | 1500 | |
KY200AS0960-15 | 96V | 6000w | 1500 | |
KY200AS0975-15 | 96V | 7500w | 1500 | |
KY200AS09100-15 | 96V | 10kw | 1500 | |
KY200AS09150-15 | 96V | 15kw | 1500 |
Encoder: 2500ppr, optical, if you need other specificaiton, please advise.
Brake: if you need brake, kindly advise.
Accept custom-made motor, please contact us for more information.
Application
It has been widely used for many applications, eg., Mobile robot, Automatic Guided Vehicle,smart self driving robot vehicle platforms/kits,caterpillar lifting platform,Fire fighting Robot etc. It has better performances than other traditional dc motors.
This series servo motor is our company latest research and development iterm, have good customer feedback, be widely used in all kinds of intelligent robot, for example: AGV( automatic guided vehicle) system, intelligent vehicle robot, caterpillar vehicle, crawler vehicle, exploder clearing robot, fire fighting robot, rescue robot, medical robot, underwater robot, routing inspection robot, customer service robot, shopping guide robot, receptionist robot, theme park robot etc.
AGV
Fire-fighting Robot
Logistics shuttle transport Robot
Wheeled Robot
Agricultural Robot
Crawler lift truck
Packing&Delivery
Company profile
Jinan Keya Electron Science and Technology Co., Ltd, founded in 2001, has been trading in the research &development, manufacturing and sales of DC motor and control system for 15 years. Company set technology, talent, management and other resources advantages, to effectively integrate, has maintained a healthy, stable and rapid growth. The company has adopted ISO9001:2008 quality management system certification, products through the CE certification. More than 3000 large and medium-sized domestic equipment manufacturers designated as supporting products, and exported to the United States, Europe, Southeast Asia and other countries
Exhibition
Certificate
FAQ
1.Q: What are your main products? A: We are specialize in BLDC SERVO MOTOR & DRIVER
5. Q: Can you make the product according to customer’s requirements?
A: Yes, welcome costom-made products.
6. Q: What is your payment term? A: You can pay by TT, Paypal, Western Union.
