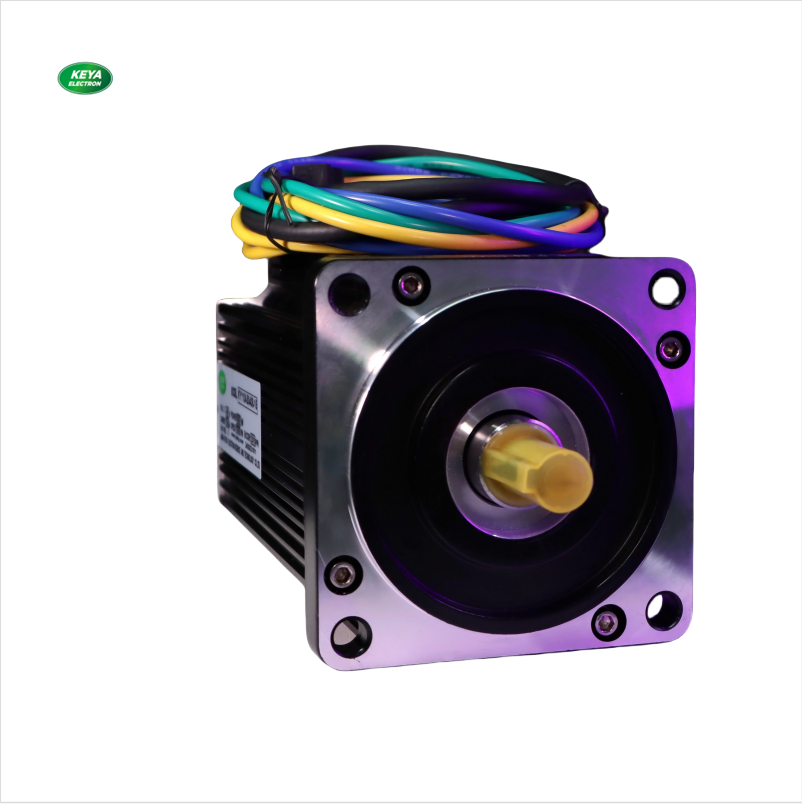

DC48V 110mm flange High torque bldc motor 1000w price

48v 1000w high torque 1500r brushless DC motor with 110mm flange

Product Description

*Lower temperature rise, conducive to the overall heat dissipation design of the user. *Higher torque overload capacity; more conducive to the application of various mobile robots. *High efficiency, greatly extending battery life. *Low speed and high torque, effectively reduce the wear on the speed reduction mechanism and prolong the service life of the reduction mechanism. *Smaller vibration and lower noise make users more comfortable. *The insulation class of the motor is H, which effectively prolongs the service life of the motor and ensures excellent overload capacity.

The magnet is made of N38SH, a high-grade material. The product uses SKF bearings, which are well-known for their product quality. The stator uses H-level enameled wire, which is resistant to high temperatures up to 180 degrees Celsius and has super overload capacity. The rotor uses a unique double protection. The silicon steel sheet is made of 50w470. The motor housing is made of aluminum alloy 6061, which has good precision and good heat dissipation. The 2500 incremental encoder is used, and an absolute encoder can be selected.

Specification for KY110AS0410-15
Rated voltage	DC48V
Rated power	1000w
Rated speed	1500rpm
Rated current	28A
Rated touque	6.3N.m
Instantaneous max torque	19N.m
Instantaneous max current	84A
Max speed	1950rpm
flange	110 mm
Number of Pole pairs	5Pairs
Brake (Optional)	* Rated voltage: 24V * Power: 21.6W * Braking condition: brake when power is off

80mm DC Servo Motor
Power:200w-400W
Speed: 3000rpm & 1500rpm
Voltage:DC24V-DC96V

110 mm DC Servo Motor
Power:500w-2000W
Speed: 3000rpm & 1500rpm
Voltage:DC24V-DC96V

130mm DC Servo Motor
Power:500w-3000W
Speed: 3000rpm & 1500rpm
Voltage:DC24V-DC96V

200mm DC Servo Motor
Power:5000w-15000W
Speed: 3000rpm & 1500rpm
Voltage:DC24V-DC96V

215mm DC Servo Motor
Power:4000w-10000W
Speed: 3000rpm & 1500rpm
Voltage:DC24V-DC96V

60mm DC Servo Motor
Power:100w-400W
Speed: 3000rpm & 1500rpm
Voltage:DC24V-DC48V

Model:

KYDAS4801A

Max current 80A
