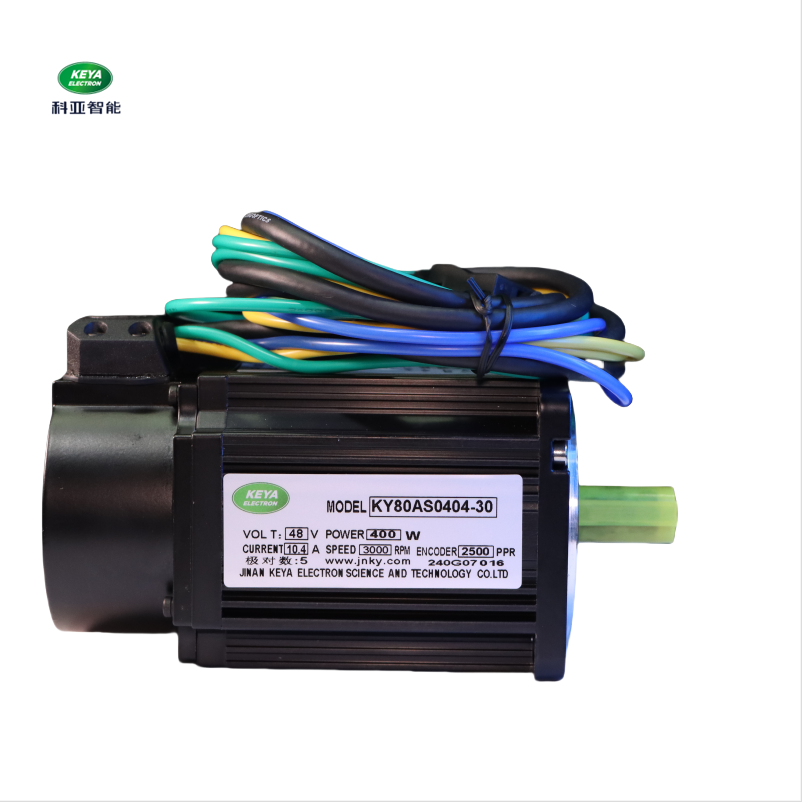

High speed 3000r 400w 48v DC brushless motor for AGV
Product Description
*Lower temperature rise, conducive to the overall heat dissipation design of the user. *Higher torque overload capacity; more conducive to the application of various mobile robots. *High efficiency, greatly extending battery life. *Low speed and high torque, effectively reduce the wear on the speed reduction mechanism and prolong the service life of the reduction mechanism. *Smaller vibration and lower noise make users more comfortable. *The insulation class of the motor is H, which effectively prolongs the service life of the motor and ensures excellent overload capacity.
![]()
![]()
The magnet is made of N38SH, a high-grade material. The product uses SKF bearings, which are well-known for their product quality. The stator uses H-level enameled wire, which is resistant to high temperatures up to 180 degrees Celsius and has super overload capacity. The rotor uses a unique double protection. The silicon steel sheet is made of 50w470. The motor housing is made of aluminum alloy 6061, which has good precision and good heat dissipation. The 2500 incremental encoder is used, and an absolute encoder can be selected.
| Specification for KY80AS0404-30B |
| Rated voltage | DC48V |
| Rated power | 400w |
| Rated speed | 3000rpm |
| Rated current | 10.4A |
| Rated touque | 1.27N.m |
| Instantaneous max torque | 3.8N.m |
| Instantaneous max current | 31A |
| Max speed | 1950rpm |
| flange | 80 mm |
| Number of Pole pairs | 5Pairs |
| Brake (Optional) | * Rated voltage: 24V * Power: 5.76W * Braking condition: brake when power is off |
Related products
80mm DC Servo Motor
Power:200w-400W
Speed: 3000rpm & 1500rpm
Voltage:DC24V-DC96V
110 mm DC Servo Motor
Power:500w-2000W
Speed: 3000rpm & 1500rpm
Voltage:DC24V-DC96V
130mm DC Servo Motor
Power:500w-3000W
Speed: 3000rpm & 1500rpm
Voltage:DC24V-DC96V
200mm DC Servo Motor
Power:5000w-15000W
Speed: 3000rpm & 1500rpm
Voltage:DC24V-DC96V
215mm DC Servo Motor
Power:4000w-10000W
Speed: 3000rpm & 1500rpm
Voltage:DC24V-DC96V
| Model | Rated power/w | Rated volt/V | Rated speed/rpm | Rated Current/A | Rated Torque/N.m |
| KY80AS020-15 | 200W | 24V/48V | 1500rpm | 9.4A/4.7A | 1.27N.M |
| KY80AS0204-15 | 400W | 24V/48V | 1500rpm | 21.3A/10.6A | 2.55N.m |
| KY80AS0204-30 | 400W | 24V/48V | 3000rpm | 18.8A/9.4A | 1.27N.m |
| KY110AS0405-15 | 500W | 24V/48V | 1500rpm | 28A/14A | 3.1N.m |
| KY110AS0408-15 | 800W | 24V/48V | 1500rpm | 44A/22A | 5.0N.m |
| KY110AS0410-15 | 1000W | 24V/48V | 1500rpm | 52A/28A | 6.3N.m |
| KY110AS0412-25 | 1200W | 48V | 2500rpm | 33A | 4.5N.m |
| KY110AS0415-15 | 1500W | 48V | 1500rpm | 37.5A | 9.5N.m |
| KY110AS0415-30 | 1500w | 48V | 3000rpm | 37.5A | 4.7N.m |
| KY110AS0420-25 | 2000w | 48V | 2500rpm | 55A | 7.6N.M |
| KY130AS0430-15 | 3000W | 48V | 1500rpm | 73A | 19.1N.m |
Recommended Driver controller
KYDAS48401A
Max current 40A
Wiring Definition
| Motor | Encoder |
| MA/U | MB/V | MC/W | 5V | A | B | Z | Hall A/U | Hall B/V | Hall C/W |
| Red | Gray | Green | Yellow | Brown | Blue | Orange |
| Yellow | Green | Blue | 0V | A- | B- | Z- | Hall A/U- | Hall B/V- | Hall C/W- |
| Black | White/ Gray | White/ Green | White/ Yellow | White/ Brown | White/ Blue | White/ Orange |
| Shieled Wire | Black (thick) |
| Brake | Two black cables,regardless of posive and negative. |
Products Application Cases Display
This series servo motor is our company latest research and development iterm, have good customer feedback, be widely used in all kinds of intelligent robot, for example: AGV( automatic guided vehicle) system, intelligent vehicle robot, caterpillar vehicle, crawler vehicle, exploder clearing robot, fire fighting robot, rescue robot, medical robot, underwater robot, routing inspection robot, customer service robot, shopping guide robot, receptionist robot, theme park robot etc.
