High-torque Brushless DC Motor (BLDC) for Use in Agricultural Machinery

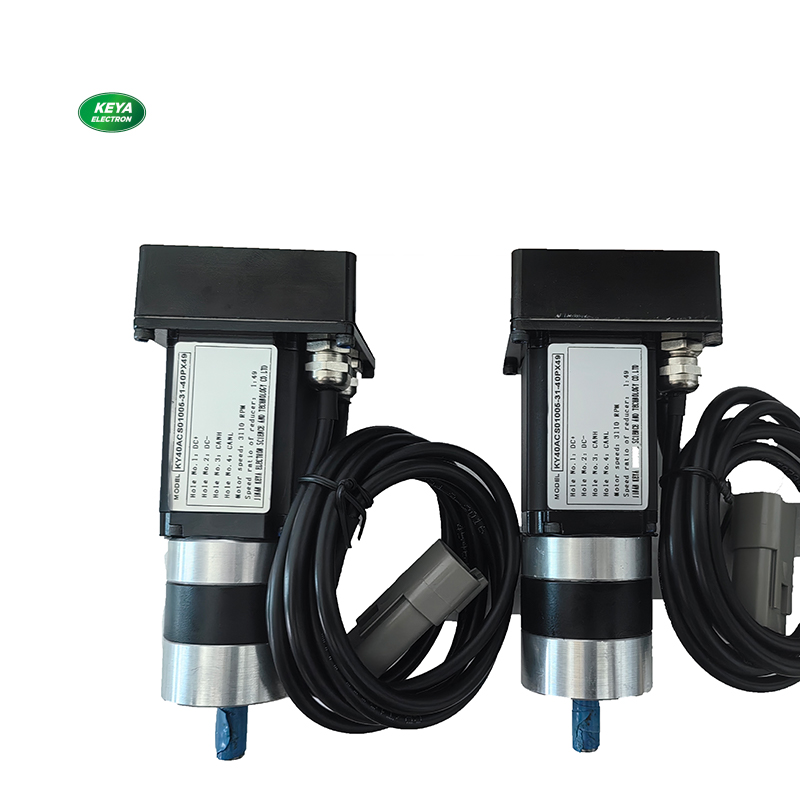

BLDC Integrated Servo Motor for Seeder

(1) Operating Temperature: - 25~55℃ (based on ambient temperature);

(2) Storage Temperature: - 35~65℃ (based on ambient temperature);

(3) Humidity: 5% - 90%RH, with condensation (25℃);

(4) Protection Level: IP66;

(5) Insulation Performance: Input to the machine case is DC600V, leakage current is 0.07mA, and insulation resistance is above 20MΩ;

(6) Three - Proof Requirements: Meet the three - proof requirements (dust - proof, moisture - proof, salt fog - proof);

(7) Vibration Requirements: Frequency 5HZ - 25HZ, amplitude 3mm, 0.09g. 25HZ - 200HZ, amplitude 1.47mm, 116g. 30 minutes for each direction of horizontal, vertical, and longitudinal.

(8) Cooling Method: Natural Cooling

Motor Drawing
