Keya 12V 24V 50W 7Nm Tractor Autosteer Kit for Agricultural Machinery Driverless Steering System

Keya was established in the year of 2001 in Jinan City, China. We have been in this industry for over 20 years and earned excellent reputation from more than 10,000 customers all over the world. Among our product series, the Auto Steering Motor Kit for precision agriculture is really something special. The Motor kit has the following features: 1. Complete servo motor design which control angle accuracy can reach 0.1 degree. 2. Host computer setting parameters and debugging, simple installation and maintenance. 3. High stability magnetic encoder to meet the application in harsh working environments. 4. Large torque design, which can meet the requirements of agricultural deep plowing, paddy fields, and high-viscosity soil operations. 5. IP55 protection level, dust-proof, rain-proof and anti-condensation.
Rated Voltage:
Control signal:
Rated speed:
Rated torque:
Peak torque:
Availability:
Quantity:
  • KY170DD01005-08

  • KEYA

  • KY170DD01005-08

This eletric motor adopts direct drive motor scheme designe, the rated speed is 80rpm, you can install it to the steering wheel shaft directly. It built in controller, support RS232, CAN control, the rated voltage is 12V, rated torque is 7N.m, the peak torque reach 16N.m, it is widely used in electric power steering system for self-driving robot tractor, it is for Forklift truck Roller and Bulldozer.


官网舵机图

steering wheel motor


  • Specification

Product name Automatic steering wheel motor
Application Forklift truck ,Roller ,Bulldozer.
Voltage 12V 24V
Rated torque 7N.m
Peak torque 13N.m
Rated current 10A
Rated power 50W
Rated speed 80rpm-100rpm
Control signal RS232, CAN2.0
Feedback 48000ppr Incremental Encoder
Protection grade IP55
Weight 8 KG


  • Interface Definition

1
IN+
Power input +
2
IN-
Power input -
3
TX
RS232-TX
4
RX
RS232-RX
5
GND
GROUND
6
CAN-H
CAN-H
7
CAN-L
CAN-L


  • Products Application Cases Display



The torque of the direct drive servo motor increases in proportion to the input current and does not change with speed and angular position. The relationship between torque and current is linear. Multi-pole structure design, low motor torque ripple coefficient, stable operation, can effectively reduce the "S" curve amplitude when the vehicle is going straight.


The direct drive design of the servo motor enables gearless transmission. The ratio of torque to inertia on the load shaft is much better than gear transmission, which greatly improves the acceleration capability of the system, and greatly improves the ability to go online quickly in applications and the ability to correct errors under high-speed vehicle operation.

photobank(1)

 Tractor

The sprayer 1

Sprayer

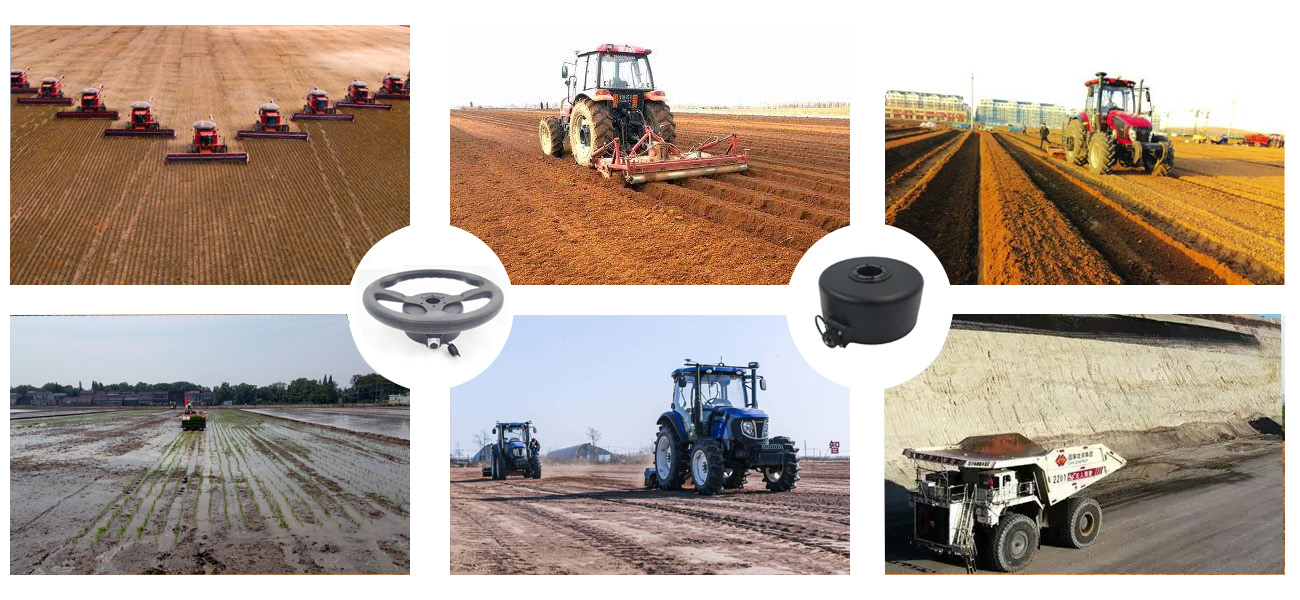

tractor MOTOR usingtractor motor
