Keya the 3rd generation autopilot steering wheel motor for AGopen/ GNSS/ RTK, model: KY170DD01005-08G,
This eletric motor adopts direct drive motor scheme designe, the rated speed is 100rpm, you can install it to the steering wheel shaft directly. It built in controller, support RS232, CAN control, the rated voltage is 12V, rated torque is 7N.m, the peak torque reach 13N.m, it is widely used in electric power steering system for self-driving robot tractor, it is for Forklift truck Roller and Bulldozer.
| Quantity: | |
|---|---|
KY170DD01005-08G
keya
Keya the 3rd generation autopilot steering wheel motor for AGopen model: KY170DD01005-08G,
This eletric motor adopts direct drive motor scheme designe, the rated speed is 100rpm, you can install it to the steering wheel shaft directly. It built in controller, support RS232, CAN control, the rated voltage is 12V, rated torque is 7N.m, the peak torque reach 13N.m, it is widely used in electric power steering system for self-driving robot tractor, it is for Forklift truck Roller and Bulldozer.
Specification
| Product name | Automatic steering wheel motor |
| Application | Forklift truck ,Roller ,Bulldozer. |
| Voltage | 12V |
| Rated torque | 7N.m |
| Peak torque | 13N.m |
| Rated current | 10A |
| Rated power | 50W |
| Rated speed | 100rpm |
| Control signal | RS232, CAN2.0 |
| Feedback | 48000ppr Incremental Encoder |
| Protection grade | IP55 |
| Weight | 9 KG |
Main Functions

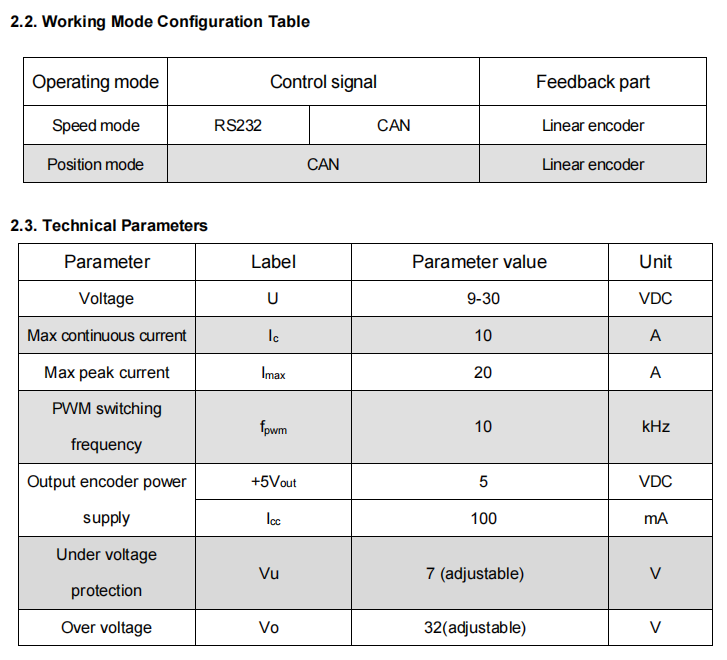

Working mode: speed mode, position mode (CAN)l Feedback part: Linear encoder.
Control port: RS232, CAN
LED indicator for faults
Realize motor speed controlling and data reading through RS232
Internal temperature monitoring and protection of built-in driver
Overcurrent and overload protection
Overvoltage and undervoltage protection
Stall and over speed protection
Motor short circuit protection
Interface Definition
| 1 | IN+ | Power input + |
| 2 | IN- | Power input - |
| 3 | TX | RS232-TX |
| 4 | RX | RS232-RX |
| 5 | GND | GROUND |
| 6 | CAN-H | CAN-H |
| 7 | CAN-L | CAN-L |
One kit includes there part.
If you have any question, welcome to contect us any time.
keya at jnky dot com Tel: +8613255691051
Company Overview
Jinan Keya Electron Science and Technology Co., Ltd, founded in 2001, has been trading in the research &development, manufacturing and sales of DC motor and control system for 15 years.
Company set technology, talent, management and other resources advantages, to effectively integrate, has maintained a healthy, stable and rapid growth.
The company has adopted ISO9001:2015 quality management system certification, products through the CE certification. More than 3000 large and medium-sized domestic equipment manufacturers designated as supporting products, and exported to the United States, Europe, Southeast Asia and other countries.
