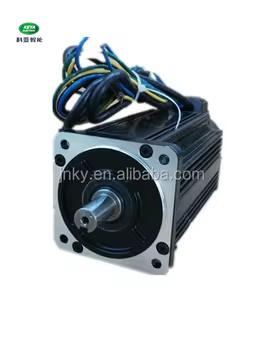

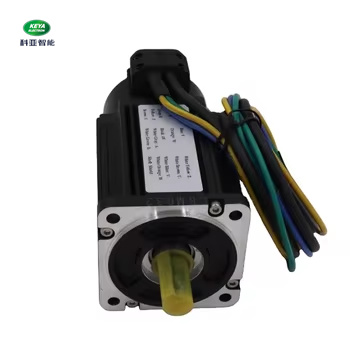

Keya 130mm Flange 48v Brushless DC Motor 1500w BLDC Motor with Encoder

Share to:

Keya 130mm Flange 48v Brushless DC Motor 1500w BLDC Motor with Encoder

Keya factory 1500w 48v DC motor with encoder, 48v servo motor with 130mm flange

Availability:

Quantity:



Inquire

Model:
KY130ACS0415-30
Brand:
Keya

Product Description

3 可添加模块

Keya factory 1500w 48v DC motor with encoder, 48v servo motor with 130mm flange

Product Description

*Lower temperature rise, conducive to the overall heat dissipation design of the user. *Higher torque overload capacity; more conducive to the application of various mobile robots. *High efficiency, greatly extending battery life. *Low speed and high torque, effectively reduce the wear on the speed reduction mechanism and prolong the service life of the reduction mechanism. *Smaller vibration and lower noise make users more comfortable. *The insulation class of the motor is H, which effectively prolongs the service life of the motor and ensures excellent overload capacity.

The magnet is made of N38SH, a high-grade material. The product uses SKF bearings, which are well-known for their product quality. The stator uses H-level enameled wire, which is resistant to high temperatures up to 180 degrees Celsius and has super overload capacity. The rotor uses a unique double protection. The silicon steel sheet is made of 50w470. The motor housing is made of aluminum alloy 6061, which has good precision and good heat dissipation. The 2500 incremental encoder is used, and an absolute encoder can be selected.

Specification for KY130ACS0415-30/30B
Rated voltage	DC48V
Rated power	1500w
Rated speed	3000rpm
Rated current	39A
Rated touque	4.7N.m
Instantaneous max torque	9.4N.m
Instantaneous max current	78A
195Max speed	3800rpm
flange	130 mm
Number of Pole pairs	5Pairs
Brake (Optional)	* Rated voltage: 48V * Power: 1500W * Braking condition: brake when power is off

HTB1TwEfPFXXXXbOXXXXq6xXFXXXd.jpg_350x350

H7eb4513dc89e43f682e550b69326aafab.jpg_350x350

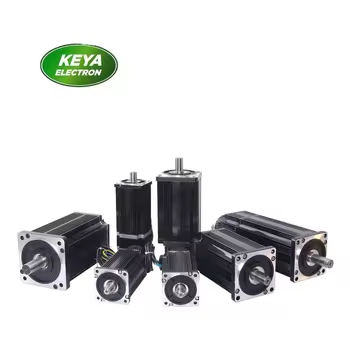

Related products

 80mm DC Servo Motor
Power:200w-400W
Speed: 3000rpm & 1500rpm
Voltage:DC24V-DC96V

 110 mm DC Servo Motor
Power:500w-2000W
Speed: 3000rpm & 1500rpm
Voltage:DC24V-DC96V

 130mm DC Servo Motor
Power:500w-3000W
Speed: 3000rpm & 1500rpm
Voltage:DC24V-DC96V

 200mm DC Servo Motor
Power:5000w-15000W
Speed: 3000rpm & 1500rpm
Voltage:DC24V-DC96V

 2 15mm DC Servo Motor
Power:4000w-10000W
Speed: 3000rpm & 1500rpm
Voltage:DC24V-DC96V

Model	Rated power/w	Rated volt/V	Rated speed/rpm	Rated Current/A	Rated Torque/N.m
KY80AS020-15	200W	24V/48V	1500rpm	9.4A/4.7A	1.27N.M
KY80AS0204-15	400W	24V/48V	1500rpm	21.3A/10.6A	2.55N.m
KY80AS0204-30	400W	24V/48V	3000rpm	18.8A/9.4A	1.27N.m
KY110AS0405-15	500W	24V/48V	1500rpm	28A/14A	3.1N.m
KY110AS0408-15	800W	24V/48V	1500rpm	44A/22A	5.0N.m
KY110AS0410-15	1000W	24V/48V	1500rpm	52A/28A	6.3N.m
KY110AS0412-25	1200W	48V	2500rpm	33A	4.5N.m
KY110AS0415-15	1500W	48V	1500rpm	37.5A	9.5N.m
KY110AS0415-30	1500w	48V	3000rpm	37.5A	4.7N.m
KY110AS0420-25	2000w	48V	2500rpm	55A	7.6N.M
KY130AS0430-15	3000W	48V	1500rpm	73A	19.1N.m

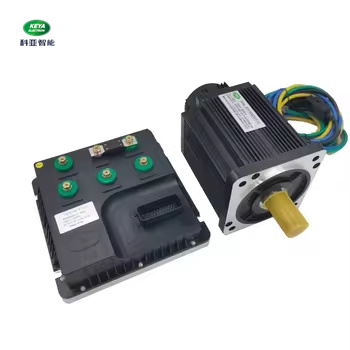

Recommended Driver controller

KYDAS4601A
Max current 60A

 Wiring Definition

Motor			Encoder
MA/U	MB/V	MC/W	5V	A	B	Z	Hall A/U	Hall B/V	Hall C/W
MA/U	MB/V	MC/W	Red	Gray	Green	Yellow	Brown	Blue	Orange
Yellow	Green	Blue	0V	A-	B-	Z-	Hall A/U-	Hall B/V-	Hall C/W-
Yellow	Green	Blue	Black	White/ Gray	White/ Green	White/ Yellow	White/ Brown	White/ Blue	White/ Orange

Shieled Wire		Black (thick)
Brake		Two black cables,regardless of posive and negative.

Products Application Cases Display

 This series servo motor is our company latest research and development iterm, have good customer feedback, be widely used in all kinds of intelligent robot, for example: AGV( automatic guided vehicle) system, intelligent vehicle robot, caterpillar vehicle, crawler vehicle, exploder clearing robot, fire fighting robot, rescue robot, medical robot, underwater robot, routing inspection robot, customer service robot, shopping guide robot, receptionist robot, theme park robot etc.

Packing & Delivery

Company Profile

 Jinan Keya Electron Science and Technology Co., Ltd, founded in 2001, has been trading in the research &development, manufacturing and sales of DC motor and control system for 15 years. Company set technology, talent, management and other resources advantages, to effectively integrate, has maintained a healthy, stable and rapid growth. The company has adopted ISO9001:2008 quality management system certification, products through the CE certification. More than 3000 large and medium-sized domestic equipment manufacturers designated as supporting products, and exported to the United States, Europe, Southeast Asia and other countries.

 Exhibition

 Our customers

CE

FAQ

1. Q: What are your main products? A: We are specialize in BLDC SERVO MOTOR & DRIVER

 2.    Q: How long have you been in this field?      A: More than 15 years in this field.

 3.    Q: Do you have your own R&D team?      A: Yes. R&D is our core competitiveness, continuous innovation is just what we are seeking for all the time. Some of our engineers have more than 20years experience in the industry, and we also cooperate with colleges, scientific research institutions and large enterprises.

 4.    Q: How soon can you deliver the goods?      A: That depends on the exact model you order. For regular products, usually we will prepare some units in stock, we can deliver them within 3 working days.

 5.    Q: Can you make the product according to customer’s requirements?      A: Yes, welcome costom-made products. 6.    Q: What is your payment term?      A: You can pay by TT, Paypal, Western Union.
