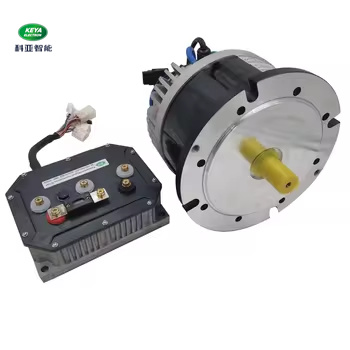

Keya 5kw 48v Bldc Flat Motor BLDC

Keya 5kw 48v Bldc Flat Motor BLDC, find complete details about Keya 5kw 48v Bldc Flat Motor BLDC, pancake brushless motor, 48v brushless dc motor 5kw, Bldc Flat Motor BLDC - Jinan Keya Electronic Science and Technology Co., Ltd

Availability:

Quantity:



Inquire

Model:
KY215ACS0450-15B
Brand:
Keya

Product Description

215 Series 1500r 5kw 48v DC Brushless Motor

Product Description

*Lower temperature rise, conducive to the overall heat dissipation design of the user. *Higher torque overload capacity; more conducive to the application of various mobile robots. *High efficiency, greatly extending battery life. *Low speed and high torque, effectively reduce the wear on the speed reduction mechanism and prolong the service life of the reduction mechanism. *Smaller vibration and lower noise make users more comfortable. *The insulation class of the motor is H, which effectively prolongs the service life of the motor and ensures excellent overload capacity.

The magnet is made of N38SH, a high-grade material. The product uses SKF bearings, which are well-known for their product quality. The stator uses H-level enameled wire, which is resistant to high temperatures up to 180 degrees Celsius and has super overload capacity. The rotor uses a unique double protection. The silicon steel sheet is made of 50w470. The motor housing is made of aluminum alloy 6061, which has good precision and good heat dissipation. The 2500 incremental encoder is used, and an absolute encoder can be selected.

pancake brushless motor

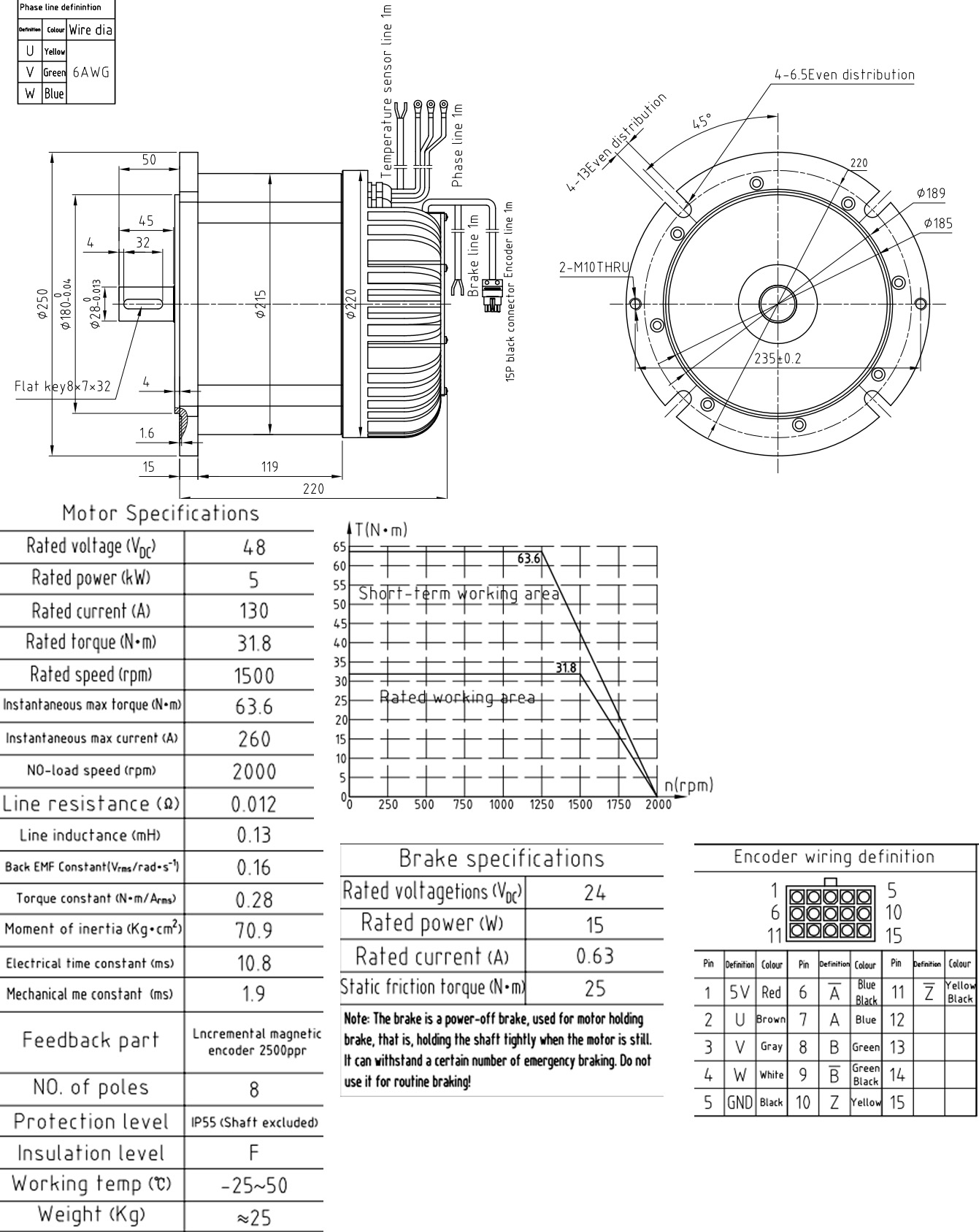

Specification for KY215ACS0450-15B
Rated voltage	DC48V
Rated power	5kw
Rated speed	1500rpm
Rated current	130A
Rated touque	31.8N.m
Instantaneous max torque	79.5 N.m
Instantaneous max current	325A
Max speed	1950rpm
flange	215 mm
Number of Pole pairs	5Pairs
Brake (Optional)	* Rated voltage: 24V * Power: 15W * Braking condition: brake when power is off

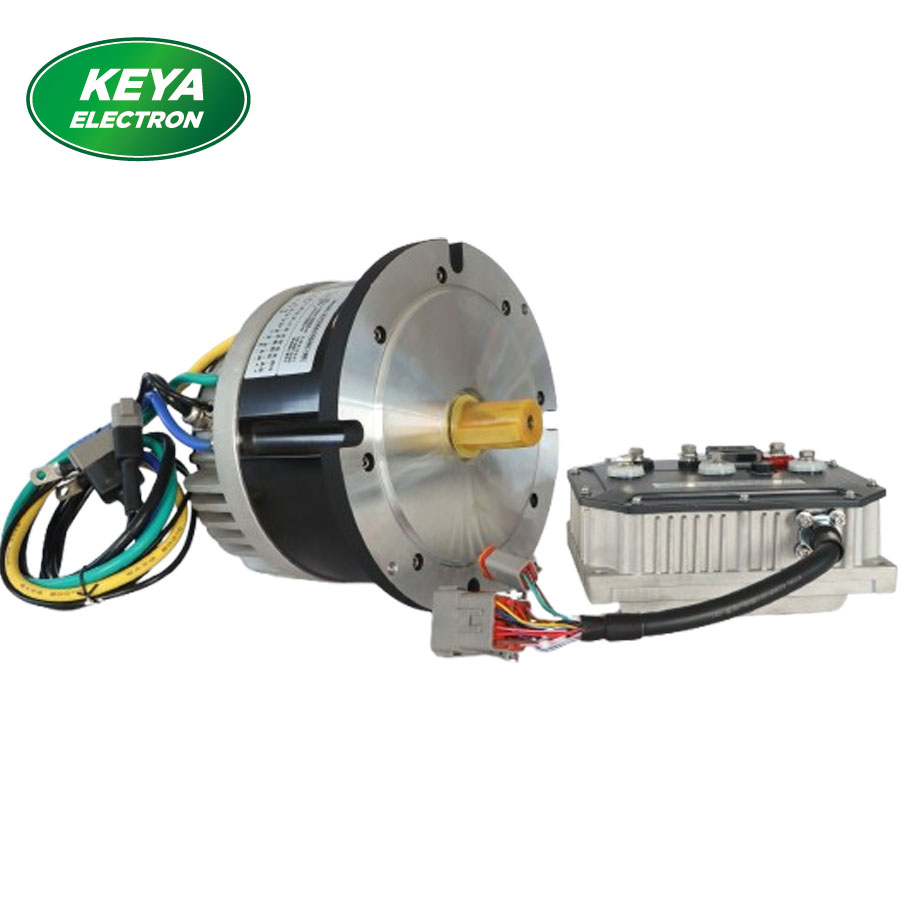

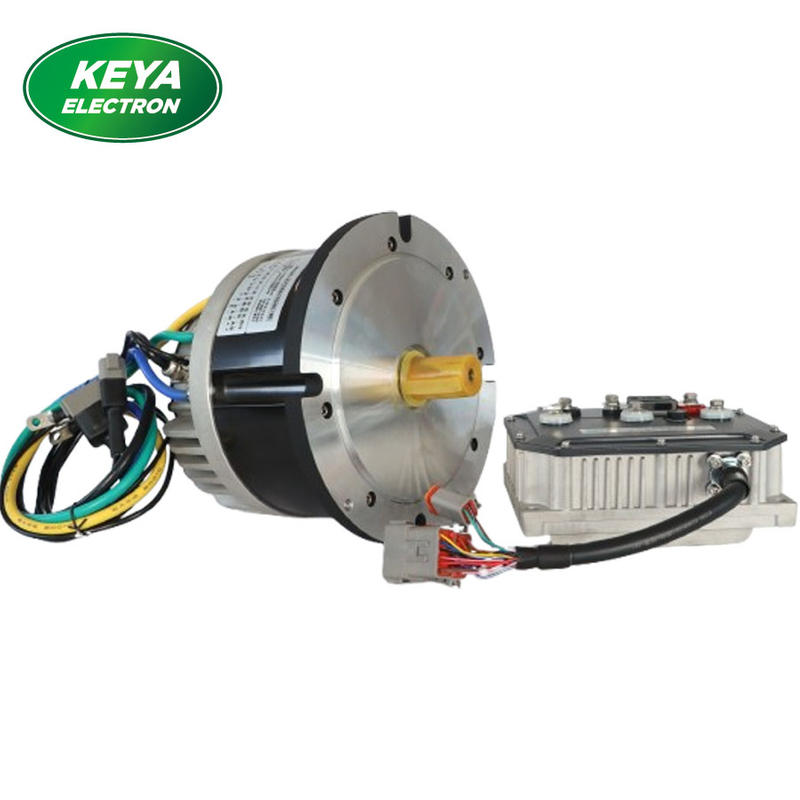

pancake brushless motor IMG_20241126_100031(1)

Application

keya dc servo motor application

Company Profile

Jinan Keya Electron Science and Technology Co., Ltd, founded in 2001, has been trading in the research &development, manufacturing and sales of DC motor and control system for 15 years. Company set technology, talent, management and other resources advantages, to effectively integrate, has maintained a healthy, stable and rapid growth. The company has adopted ISO9001:2008 quality management system certification, products through the CE certification. More than 3000 large and medium-sized domestic equipment manufacturers designated as supporting products, and exported to the United States, Europe, Southeast Asia and other countries.

Exhibition

FAQ

1. Q: What are your main products? A: We are specialize in BLDC SERVO MOTOR & DRIVER

2. Q: How long have you been in this field? A: More than 15 years in this field.

3. Q: Do you have your own R&D team? A: Yes. R&D is our core competitiveness, continuous innovation is just what we are seeking for all the time. Some of our engineers have more than 20years experience in the industry, and we also cooperate with colleges, scientific research institutions and large enterprises.

4. Q: How soon can you deliver the goods? A: That depends on the exact model you order. For regular products, usually we will prepare some units in stock, we can deliver them within 3 working days.

5. Q: Can you make the product according to customer’s requirements? A: Yes, welcome costom-made products. 6. Q: What is your payment term? A: You can pay by TT, Paypal, Western Union.
