KYDBL4850-2E
keya

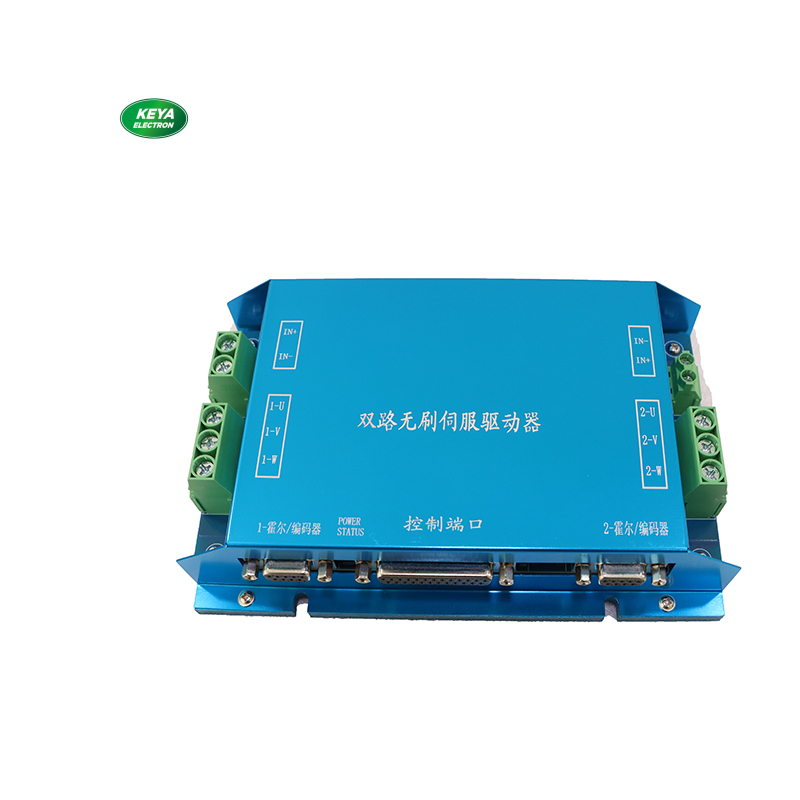

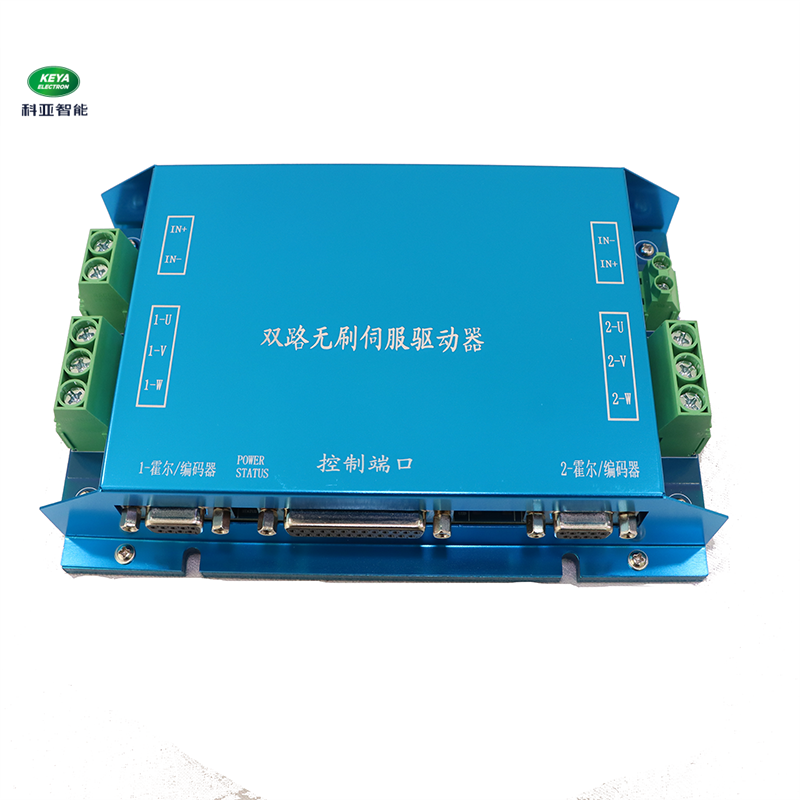

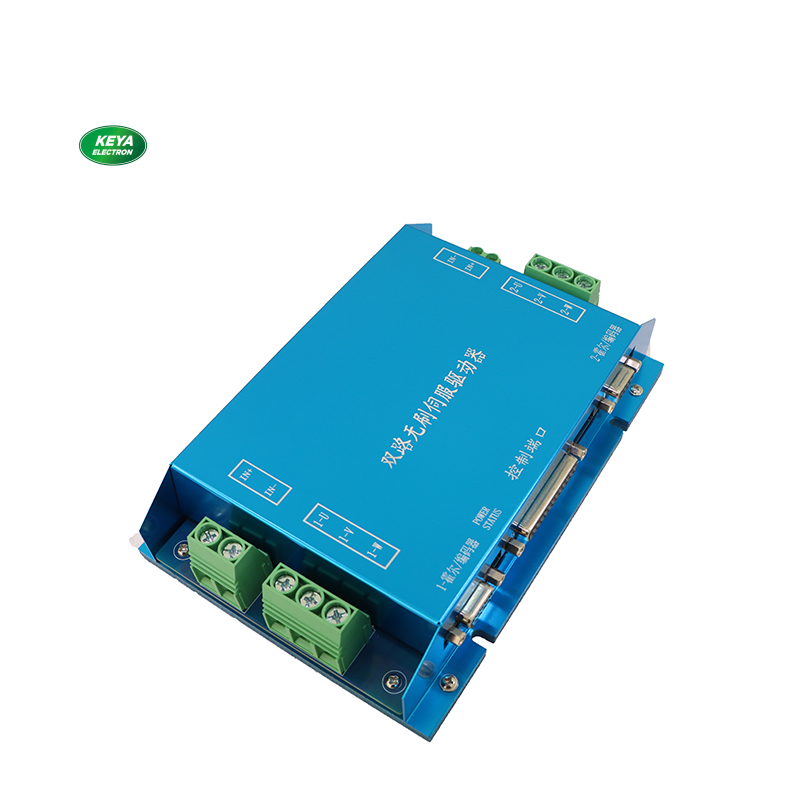

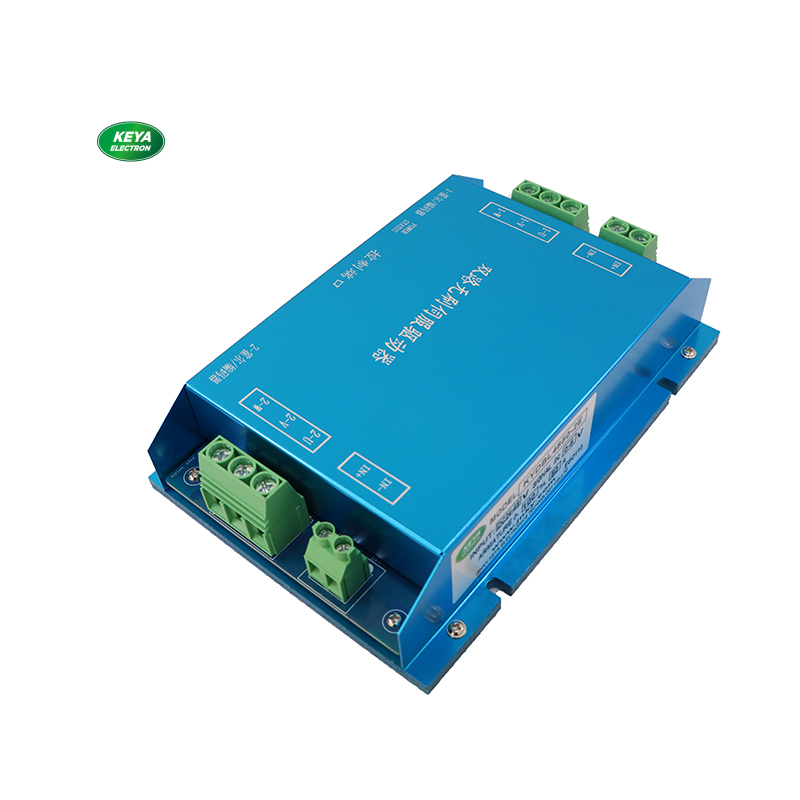

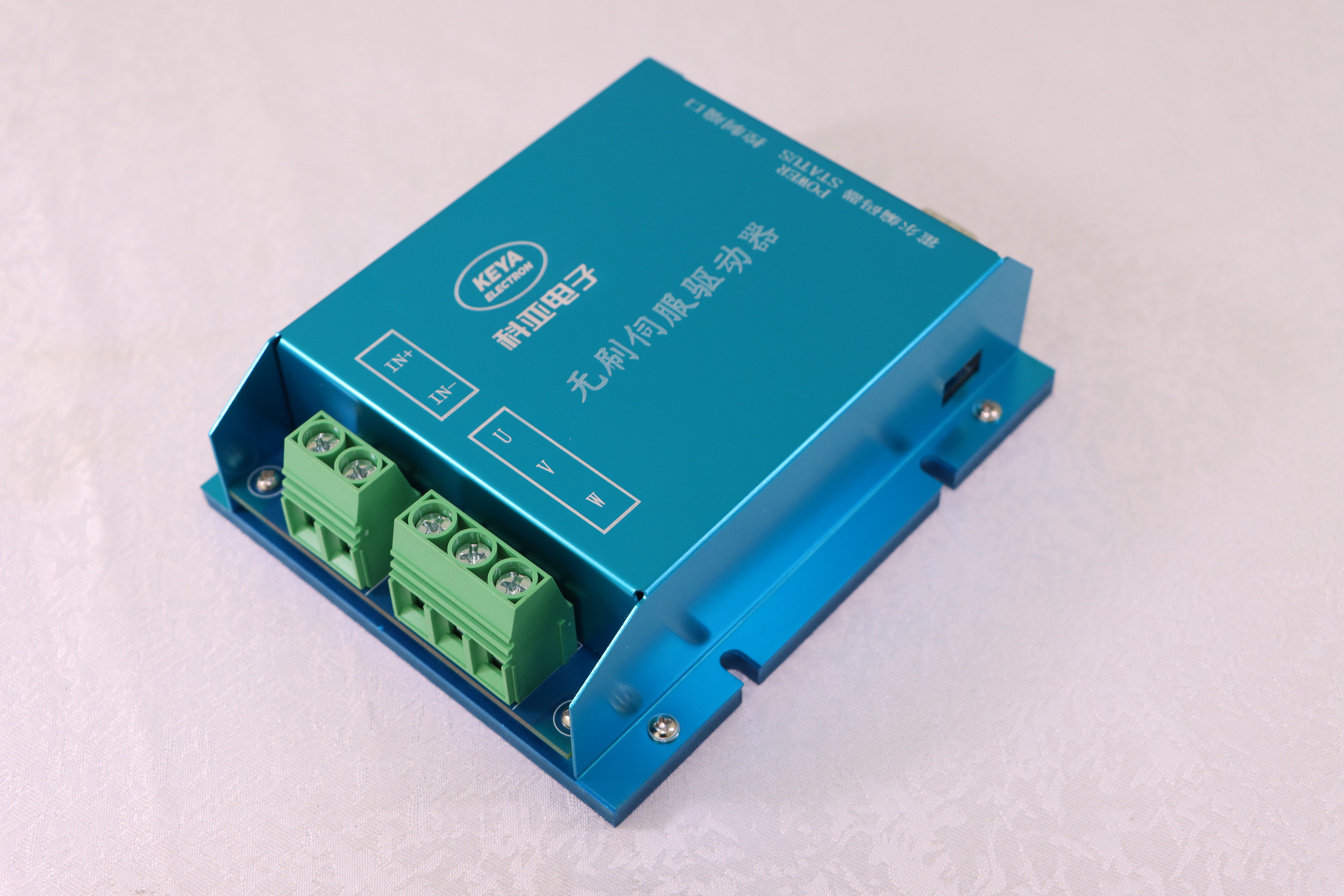

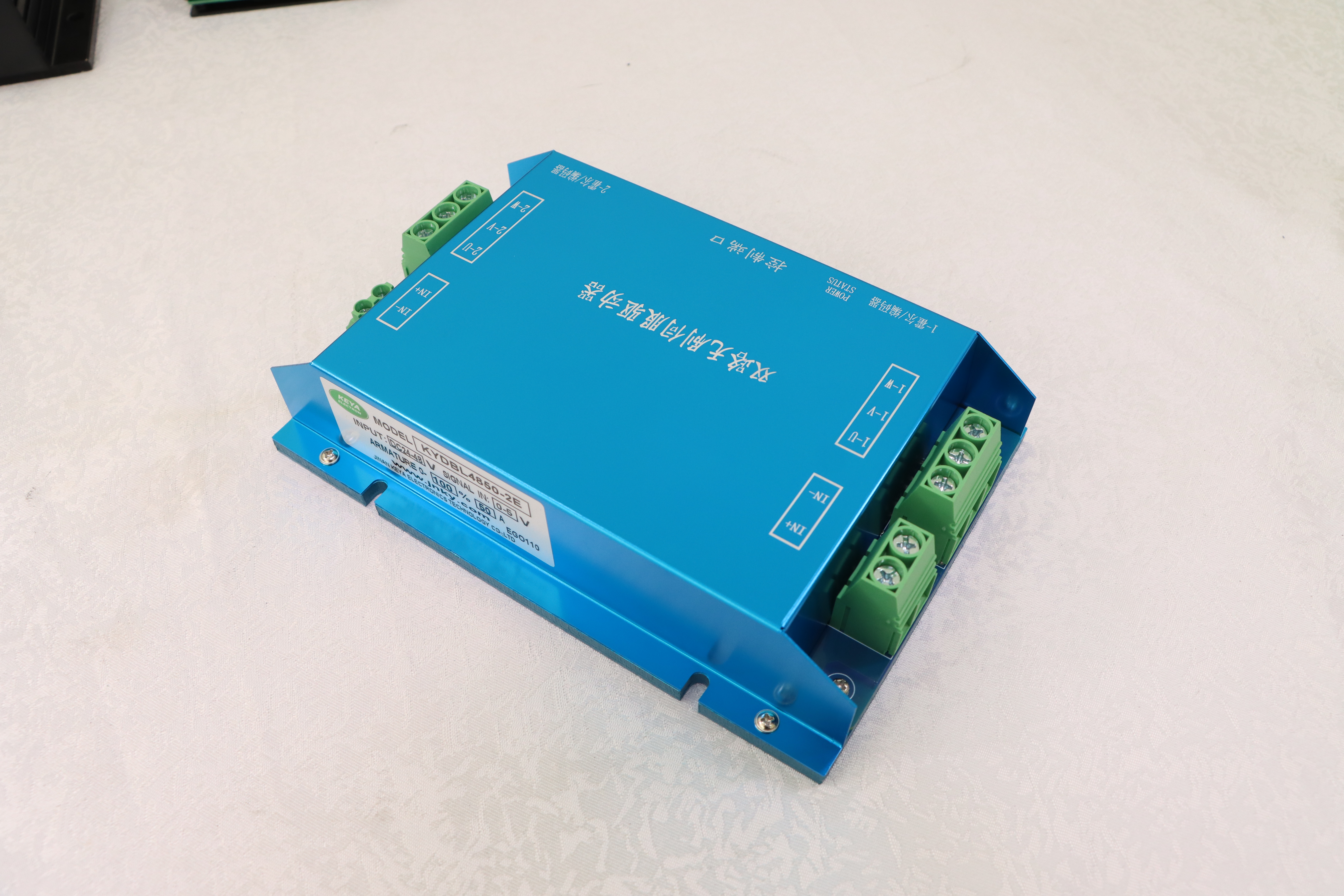

KYDBL4850-2E dual channel BLDC motor controller
Product Features:
* Wide-range voltage input, 10-55VDC.
* Intelligent PID control loop.
* Working mode: Speed open-loop, close-loop control, torque close-loop control, position close-loop control.
* External potentiometer, 0-5V analog quantity or pulse command control mode, RC (pulse
width signal outputted by the receiver of aeromodelling remote control) control mode.
* Safety forward & reverse control, four-quadrant operation, support regeneration.
* Enable control function.
* Maximum current limit.
* 4-way input port; the function can be defined as analog input, pulse input or digital input
functions.

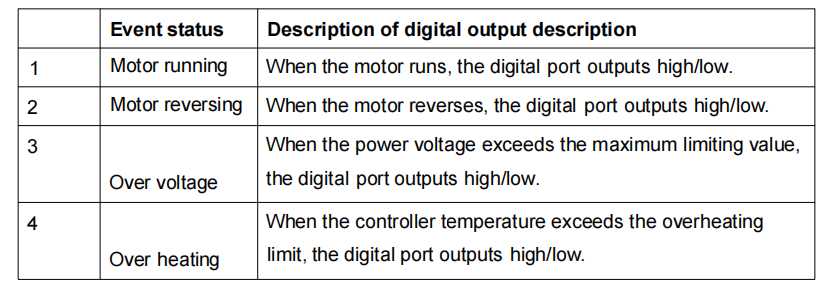

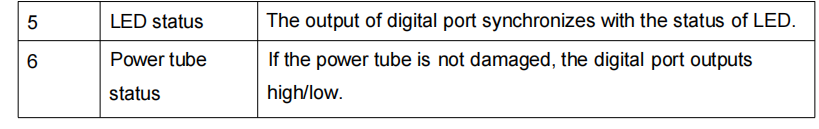

* 6-way digital (MOS tube open-drain) output, which can serve as the failure alarm
automatic disconnection of power.
* Abnormalities like over current, overheating, over voltage and short circuit will start the
protection function.

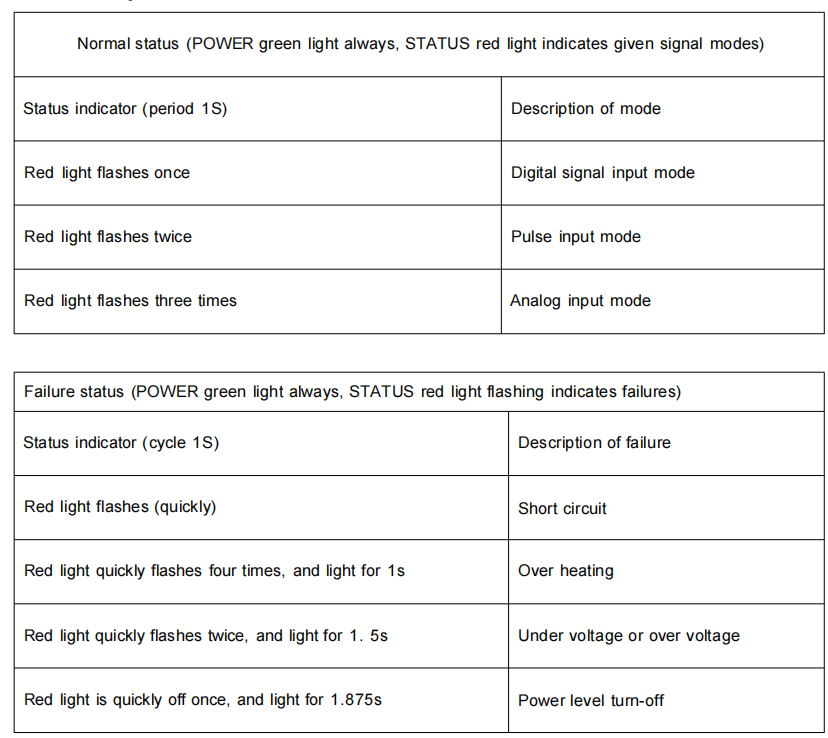

* LED status indicator.
* CAN bus communication, see the detailed communication protocol when using it.
* RS232 communication, see the detailed communication protocol when using it.
Performance Index:
1. Power voltage: 10-55VDC (voltage limit 5V-62V)
2. At the ambient temperature 25℃, continuous working current 15A, transient current up to 30A 30S.
3. Minimum speed: 10 RPM in the speed close-loop mode; 1 RPM in the position mode.
4. Out +5VDC power (It can power up the encoder): 5V DC 20mA
5. Analog input range: 0-- 5VDC
6. Impulse input range: 500Hz—5000Hz (corresponding maximum speed) [Note] The minimum impulse frequency may change along with the setting of maximum speed.
7. Input range of duty ratio 0％-- 100% (input frequency range f ≤1KHz, recommend to use the frequency of 250Hz).
8. Temperature protection status: When the temperature is 70℃, the controller will reduce output by overheating protection and will stop output when the temperature is 80℃
Application
If you have any question, please contact us any time.
Email: keya@jnky.com Tel: +8613255691051
