Keya the 3rd generation autopilot steering wheel motor for AGopen/ GNSS/ RTK, model: KY170DD01005-08G, rated Voltage is DC12V, rated current is 10A, 100r, 7n.m, the power is 50w.
Advantage:Four-in-one device
(integrated servo motor, driver, encoder and reducer)
Low speed, high torque, good dynamic performance
and high control accuracy
| Quantity: | |
|---|---|
KY170DD01005-08G
keya
KY170DD01005-08G

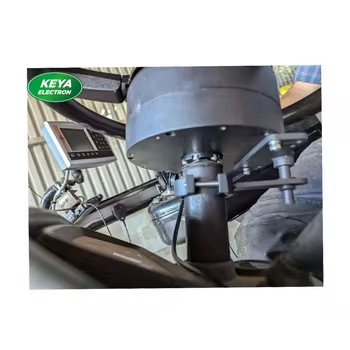

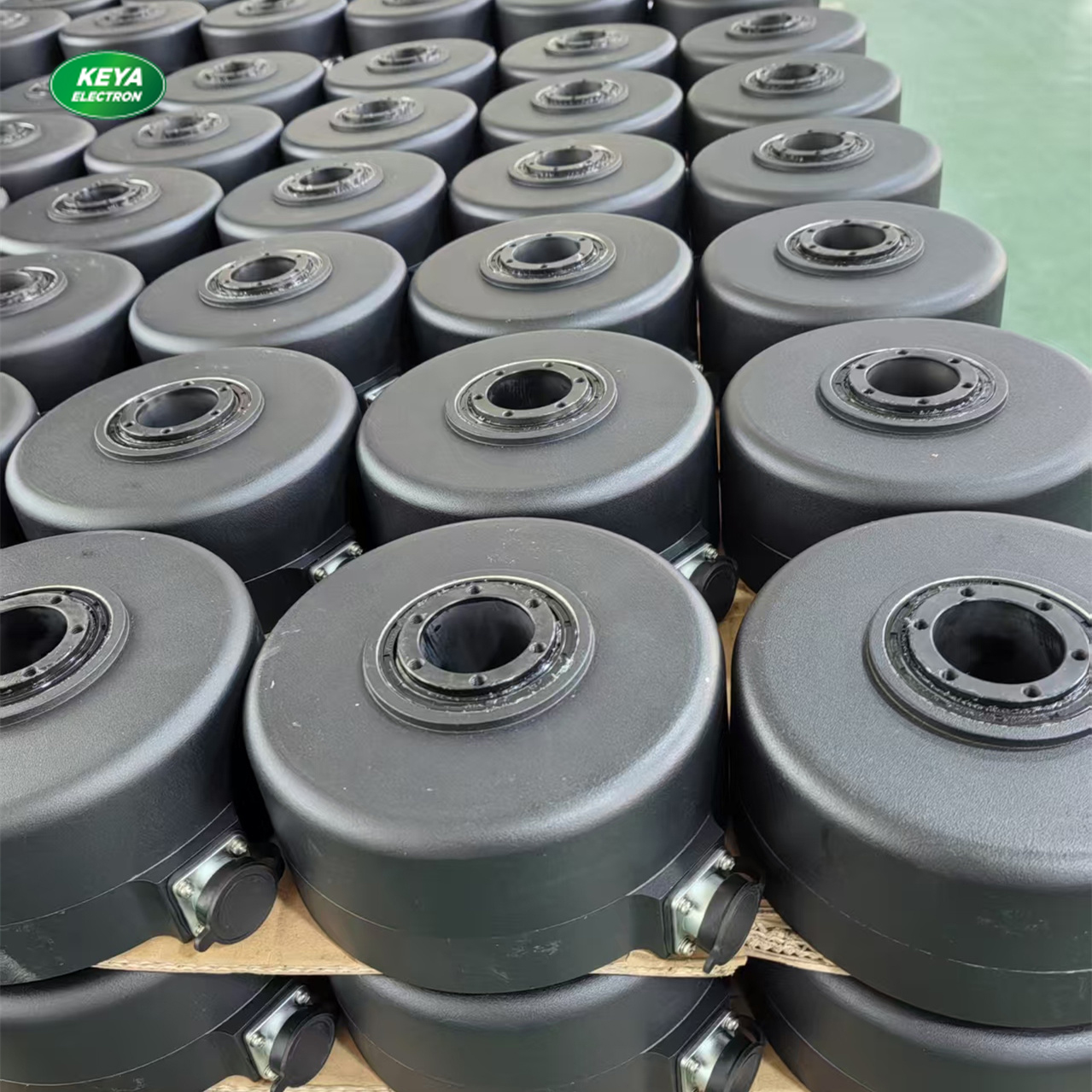

This eletric motor adopts direct drive motor scheme designe, the rated speed is 100rpm, you can install it to the steering wheel shaft directly. It built in controller, support RS232, CAN control, the rated voltage is 12V, rated torque is 7N.m, the peak torque reach 13N.m, it is widely used in electric power steering system for self-driving robot tractor, it is for Forklift truck Roller and Bulldozer.
Specification
| Product name | Automatic steering wheel motor |
| Application | Forklift truck ,Roller ,Bulldozer. |
| Voltage | 12V |
| Rated torque | 7N.m |
| Peak torque | 13N.m |
| Rated current | 10A |
| Rated power | 50W |
| Rated speed | 100rpm |
| Control signal | RS232, CAN2.0 |
| Feedback | 48000ppr Incremental Encoder |
| Protection grade | IP55 |
| Weight | 8.5 KG |
Operating temperature: -25~55°C (based on environment temperature);
Storage temperature: -35~65°C (based on environment temperature);
Humidity: 5%--90%RH, condensation (25°C)
Protection level: IP55.
Insulation performance: input to the chassis DC600V, leakage current 0.07mA.The
insulation resistance is 20 MΩ or more.
Three-proof requirements: Meet the requirements of three defenses (dust-proof, moisture
proof, salt spray proof).
Vibration requirements: frequency 5Hz ~ 25Hz, amplitude 3mm, 0.09g.
Frequency 25Hz~200Hz, amplitude 1.47mm, 116g.
Horizontal, vertical, and longitudinal directions are 30mins in each direction.
Cooling method: natural cooling
Main Functions
Working mode: speed mode, position mode (CAN)l Feedback part: Linear encoder.
Control port: RS232, CAN
LED indicator for faults
Realize motor speed controlling and data reading through RS232
Internal temperature monitoring and protection of built-in driver
Overcurrent and overload protection
Overvoltage and undervoltage protection
Stall and over speed protection
Motor short circuit protection

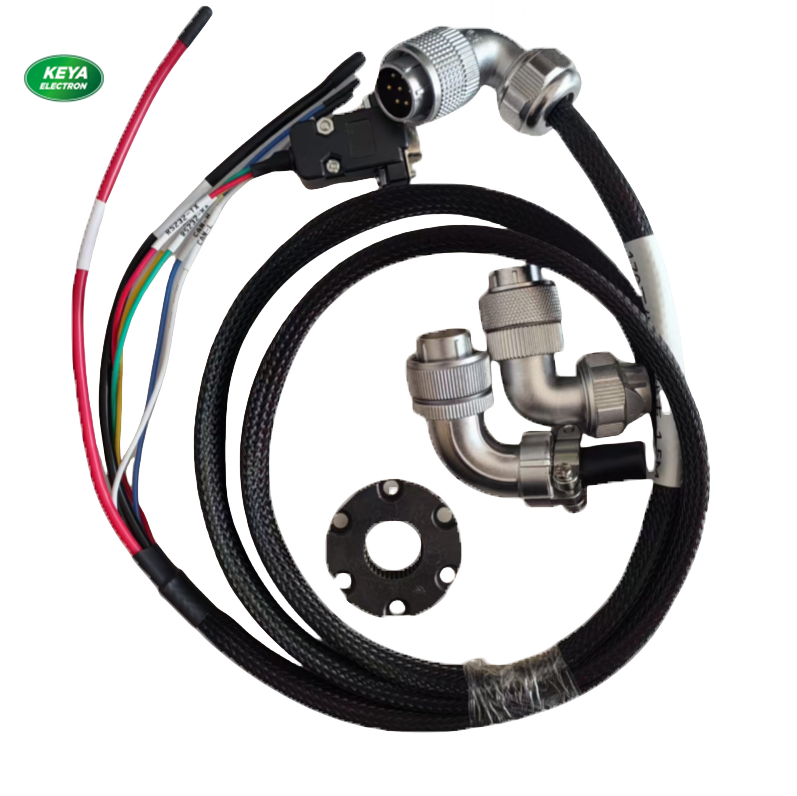

Interface Definition
| 1 | IN+ | Power input + |
| 2 | IN- | Power input - |
| 3 | TX | RS232-TX |
| 4 | RX | RS232-RX |
| 5 | GND | GROUND |
| 6 | CAN-H | CAN-H |
| 7 | CAN-L | CAN-L |
If you have any question, welcome to contect us any time.
Email: keya@jnky.com Tel: +8613255691051
