Precision agriculture Integrated Motor for Seeder

Share to:

Precision agriculture Integrated Motor for Seeder

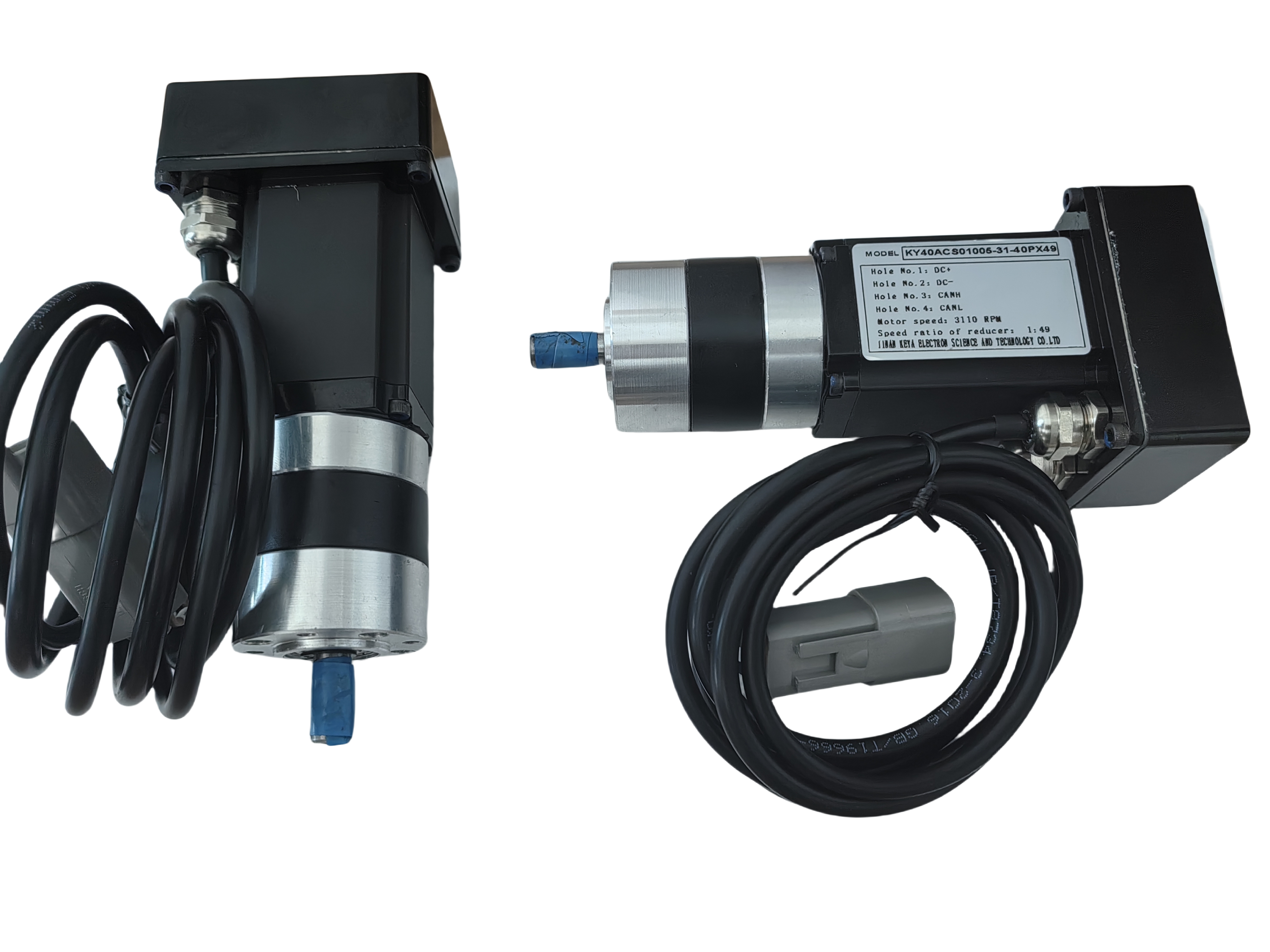

Keya factory 12vDC 50w integrated motor for seeder

Availability:

Quantity:



Inquire

Model:
KY40ACS01005-31
Brand:
Keya

Product Description

3 可添加模块

12vDC 50w integrated seeder motor

Product Description

*Lower temperature rise, conducive to the overall heat dissipation design of the user. *Higher torque overload capacity; more conducive to the application of various mobile robots. *High efficiency, greatly extending battery life. *Low speed and high torque, effectively reduce the wear on the speed reduction mechanism and prolong the service life of the reduction mechanism. *Smaller vibration and lower noise make users more comfortable. *The insulation class of the motor is H, which effectively prolongs the service life of the motor and ensures excellent overload capacity.

Operating Environment:

(1) Operating Temperature: - 25~55℃ (based on ambient temperature);

(2) Storage Temperature: - 35~65℃ (based on ambient temperature);

(3) Humidity: 5% - 90%RH, with condensation (25℃);

(4) Protection Level: IP65, resistant to rain that from forward direction;

(5) Insulation Performance: Input to the machine case is DC600V, leakage current is 0.07mA, and insulation resistance is above 20MΩ;

(6) Three - Proof Requirements: Meet the three - proof requirements (dust - proof, moisture - proof, salt fog - proof);

(7) Vibration Requirements: Frequency 5HZ - 25HZ, amplitude 3mm, 0.09g. 25HZ - 200HZ, amplitude 1.47mm, 116g. 30 minutes for each direction of horizontal, vertical, and longitudinal.

(8) Cooling Method: Natural Cooling

播种机参数

Specification for KY40ACS01005-31
Rated voltage	DC12V
Rated power	50w
Rated speed	63-130rpm
Rated current	5.8A
Rated touque	4N.m
Instantaneous max torque	8N.m
Instantaneous max current	12A
Max speed	130rpm
flange	40 mm
protection level	IP66
weight	0.85kg

Related products

 80mm DC Servo Motor
Power:200w-400W
Speed: 3000rpm & 1500rpm
Voltage:DC24V-DC96V

 110 mm DC Servo Motor
Power:500w-2000W
Speed: 3000rpm & 1500rpm
Voltage:DC24V-DC96V

 130mm DC Servo Motor
Power:500w-3000W
Speed: 3000rpm & 1500rpm
Voltage:DC24V-DC96V

 200mm DC Servo Motor
Power:5000w-15000W
Speed: 3000rpm & 1500rpm
Voltage:DC24V-DC96V

 2 15mm DC Servo Motor
Power:4000w-10000W
Speed: 3000rpm & 1500rpm
Voltage:DC24V-DC96V

Model	Rated power/w	Rated volt/V	Rated speed/rpm	Rated Current/A	Rated Torque/N.m
KY80AS020-15	200W	24V/48V	1500rpm	9.4A/4.7A	1.27N.M
KY80AS0204-15	400W	24V/48V	1500rpm	21.3A/10.6A	2.55N.m
KY80AS0204-30	400W	24V/48V	3000rpm	18.8A/9.4A	1.27N.m
KY110AS0405-15	500W	24V/48V	1500rpm	28A/14A	3.1N.m
KY110AS0408-15	800W	24V/48V	1500rpm	44A/22A	5.0N.m
KY110AS0410-15	1000W	24V/48V	1500rpm	52A/28A	6.3N.m
KY110AS0412-25	1200W	48V	2500rpm	33A	4.5N.m
KY110AS0415-15	1500W	48V	1500rpm	37.5A	9.5N.m
KY110AS0415-30	1500w	48V	3000rpm	37.5A	4.7N.m
KY110AS0420-25	2000w	48V	2500rpm	55A	7.6N.M
KY130AS0430-15	3000W	48V	1500rpm	73A	19.1N.m

Products Application Cases Display

 This series servo motor is our company latest research and development iterm, have good customer feedback, be widely used in all kinds of intelligent robot, for example: AGV( automatic guided vehicle) system, intelligent vehicle robot, caterpillar vehicle, crawler vehicle, exploder clearing robot, fire fighting robot, rescue robot, medical robot, underwater robot, routing inspection robot, customer service robot, shopping guide robot, receptionist robot, theme park robot etc.

Packing & Delivery

Company Profile

 Jinan Keya Electron Science and Technology Co., Ltd, founded in 2001, has been trading in the research &development, manufacturing and sales of DC motor and control system for 15 years. Company set technology, talent, management and other resources advantages, to effectively integrate, has maintained a healthy, stable and rapid growth. The company has adopted ISO9001:2008 quality management system certification, products through the CE certification. More than 3000 large and medium-sized domestic equipment manufacturers designated as supporting products, and exported to the United States, Europe, Southeast Asia and other countries.

 Exhibition

 Our customers

CE

FAQ

1. Q: What are your main products? A: We are specialize in BLDC SERVO MOTOR & DRIVER

 2.    Q: How long have you been in this field?      A: More than 15 years in this field.

 3.    Q: Do you have your own R&D team?      A: Yes. R&D is our core competitiveness, continuous innovation is just what we are seeking for all the time. Some of our engineers have more than 20years experience in the industry, and we also cooperate with colleges, scientific research institutions and large enterprises.

 4.    Q: How soon can you deliver the goods?      A: That depends on the exact model you order. For regular products, usually we will prepare some units in stock, we can deliver them within 3 working days.

 5.    Q: Can you make the product according to customer’s requirements?      A: Yes, welcome costom-made products. 6.    Q: What is your payment term?      A: You can pay by TT, Paypal, Western Union.
