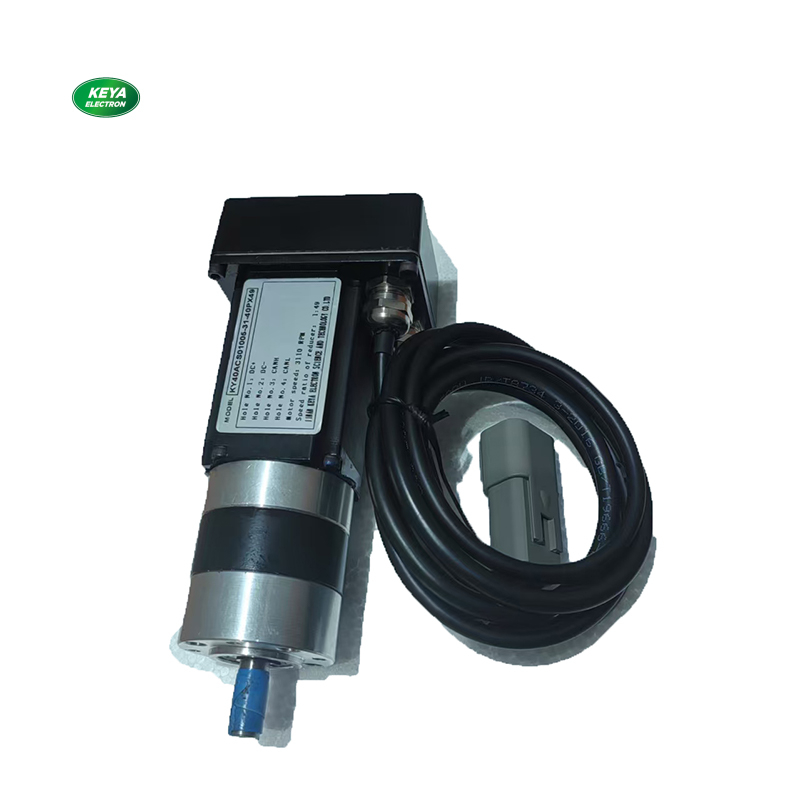

12vDC 50w integrated seeder motor
Product Description
*Lower temperature rise, conducive to the overall heat dissipation design of the user. *Higher torque overload capacity; more conducive to the application of various mobile robots. *High efficiency, greatly extending battery life. *Low speed and high torque, effectively reduce the wear on the speed reduction mechanism and prolong the service life of the reduction mechanism. *Smaller vibration and lower noise make users more comfortable. *The insulation class of the motor is H, which effectively prolongs the service life of the motor and ensures excellent overload capacity.
Operating Environment:
(1) Operating Temperature: - 25~55℃ (based on ambient temperature);
(2) Storage Temperature: - 35~65℃ (based on ambient temperature);
(3) Humidity: 5% - 90%RH, with condensation (25℃);
(4) Protection Level: IP65, resistant to rain that from forward direction;
(5) Insulation Performance: Input to the machine case is DC600V, leakage current is 0.07mA, and insulation resistance is above 20MΩ;
(6) Three - Proof Requirements: Meet the three - proof requirements (dust - proof, moisture - proof, salt fog - proof);
(7) Vibration Requirements: Frequency 5HZ - 25HZ, amplitude 3mm, 0.09g. 25HZ - 200HZ, amplitude 1.47mm, 116g. 30 minutes for each direction of horizontal, vertical, and longitudinal.
(8) Cooling Method: Natural Cooling
![5]()
![播种机参数]()
| Specification for KY40ACS01005-31 |
| Rated voltage | DC12V |
| Rated power | 50w |
| Rated speed | 63-130rpm |
| Rated current | 5.8A |
| Rated touque | 4N.m |
| Instantaneous max torque | 8N.m |
| Instantaneous max current | 12A |
| Max speed | 130rpm |
| flange | 40 mm |
| protection level | IP66 |
| weight | 0.85kg |
![图片1]()
Related products
![]() | ![]() | ![seeder motor 1]( "seeder motor 1") |
200mm DC Servo Motor
Power:5000w-15000W
Speed: 3000rpm & 1500rpm
Voltage:DC24V-DC96VV | 215mm DC Servo Motor
Power:4000w-10000W
Speed: 3000rpm & 1500rpm
Voltage:DC24V-DC96V | 60mm seeder motor Power: 50-200w Speed: 3000r 1500r Voltage: DC12V-DC96V |
| Model | Rated power/w | Rated volt/V | Rated speed/rpm | Rated Current/A | Rated Torque/N.m |
| KY80AS020-15 | 200W | 24V/48V | 1500rpm | 9.4A/4.7A | 1.27N.M |
| KY80AS0204-15 | 400W | 24V/48V | 1500rpm | 21.3A/10.6A | 2.55N.m |
| KY80AS0204-30 | 400W | 24V/48V | 3000rpm | 18.8A/9.4A | 1.27N.m |
| KY110AS0405-15 | 500W | 24V/48V | 1500rpm | 28A/14A | 3.1N.m |
| KY110AS0408-15 | 800W | 24V/48V | 1500rpm | 44A/22A | 5.0N.m |
| KY110AS0410-15 | 1000W | 24V/48V | 1500rpm | 52A/28A | 6.3N.m |
| KY110AS0412-25 | 1200W | 48V | 2500rpm | 33A | 4.5N.m |
| KY110AS0415-15 | 1500W | 48V | 1500rpm | 37.5A | 9.5N.m |
| KY110AS0415-30 | 1500w | 48V | 3000rpm | 37.5A | 4.7N.m |
| KY110AS0420-25 | 2000w | 48V | 2500rpm | 55A | 7.6N.M |
| KY130AS0430-15 | 3000W | 48V | 1500rpm | 73A | 19.1N.m |
Products Application Cases Display
This series servo motor is our company latest research and development iterm, have good customer feedback, be widely used in all kinds of intelligent robot, for example: AGV( automatic guided vehicle) system, intelligent vehicle robot, caterpillar vehicle, crawler vehicle, exploder clearing robot, fire fighting robot, rescue robot, medical robot, underwater robot, routing inspection robot, customer service robot, shopping guide robot, receptionist robot, theme park robot etc.
Packing & Delivery
Company Profile
Jinan Keya Electron Science and Technology Co., Ltd, founded in 2001, has been trading in the research &development, manufacturing and sales of DC motor and control system for 15 years. Company set technology, talent, management and other resources advantages, to effectively integrate, has maintained a healthy, stable and rapid growth. The company has adopted ISO9001:2008 quality management system certification, products through the CE certification. More than 3000 large and medium-sized domestic equipment manufacturers designated as supporting products, and exported to the United States, Europe, Southeast Asia and other countries.
Exhibition
Our customers
CE
FAQ
1. Q: What are your main products? A: We are specialize in BLDC SERVO MOTOR & DRIVER
2. Q: How long have you been in this field? A: More than 15 years in this field.
3. Q: Do you have your own R&D team? A: Yes. R&D is our core competitiveness, continuous innovation is just what we are seeking for all the time. Some of our engineers have more than 20years experience in the industry, and we also cooperate with colleges, scientific research institutions and large enterprises.
4. Q: How soon can you deliver the goods? A: That depends on the exact model you order. For regular products, usually we will prepare some units in stock, we can deliver them within 3 working days.
5. Q: Can you make the product according to customer’s requirements? A: Yes, welcome costom-made products. 6. Q: What is your payment term? A: You can pay by TT, Paypal, Western Union.
