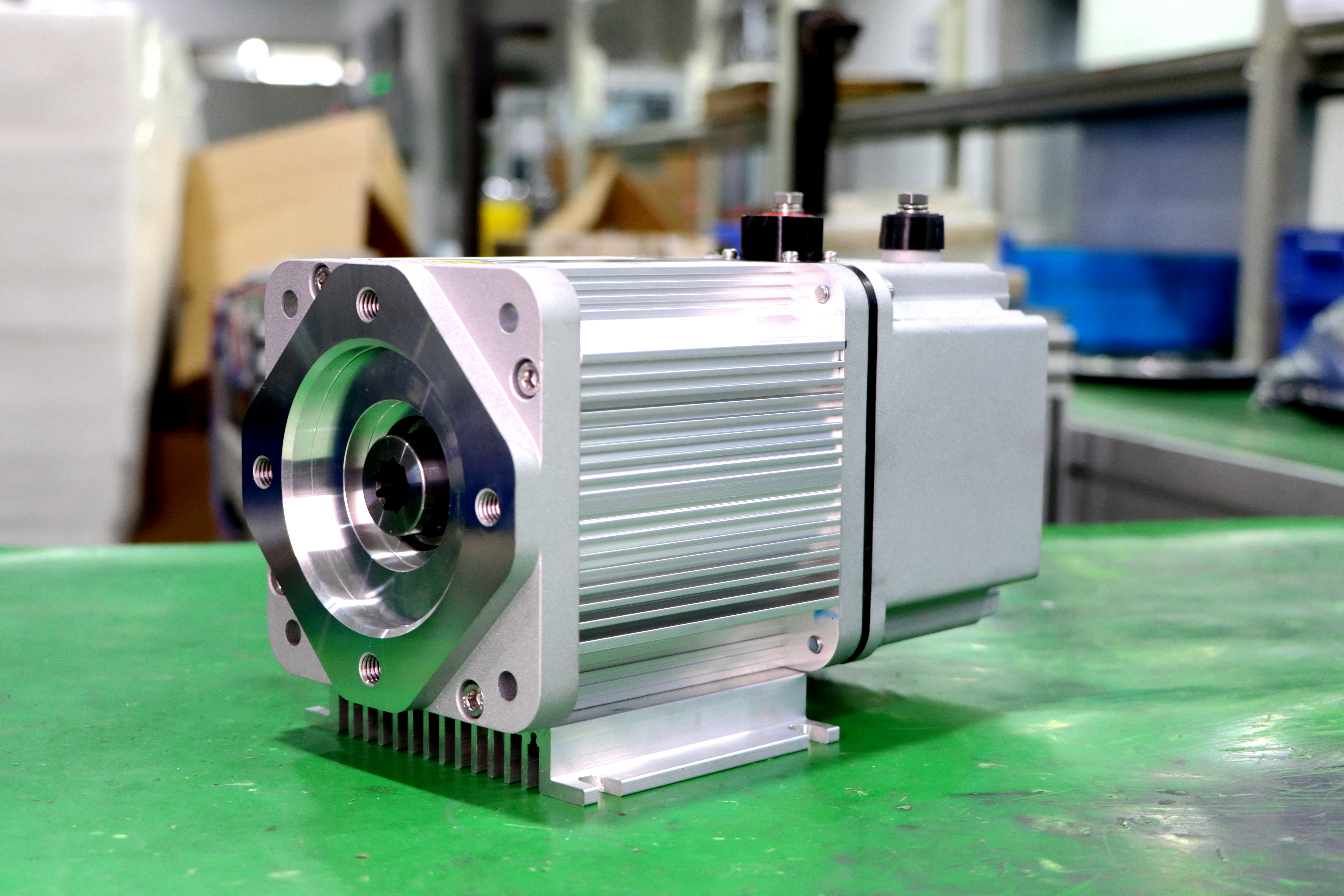

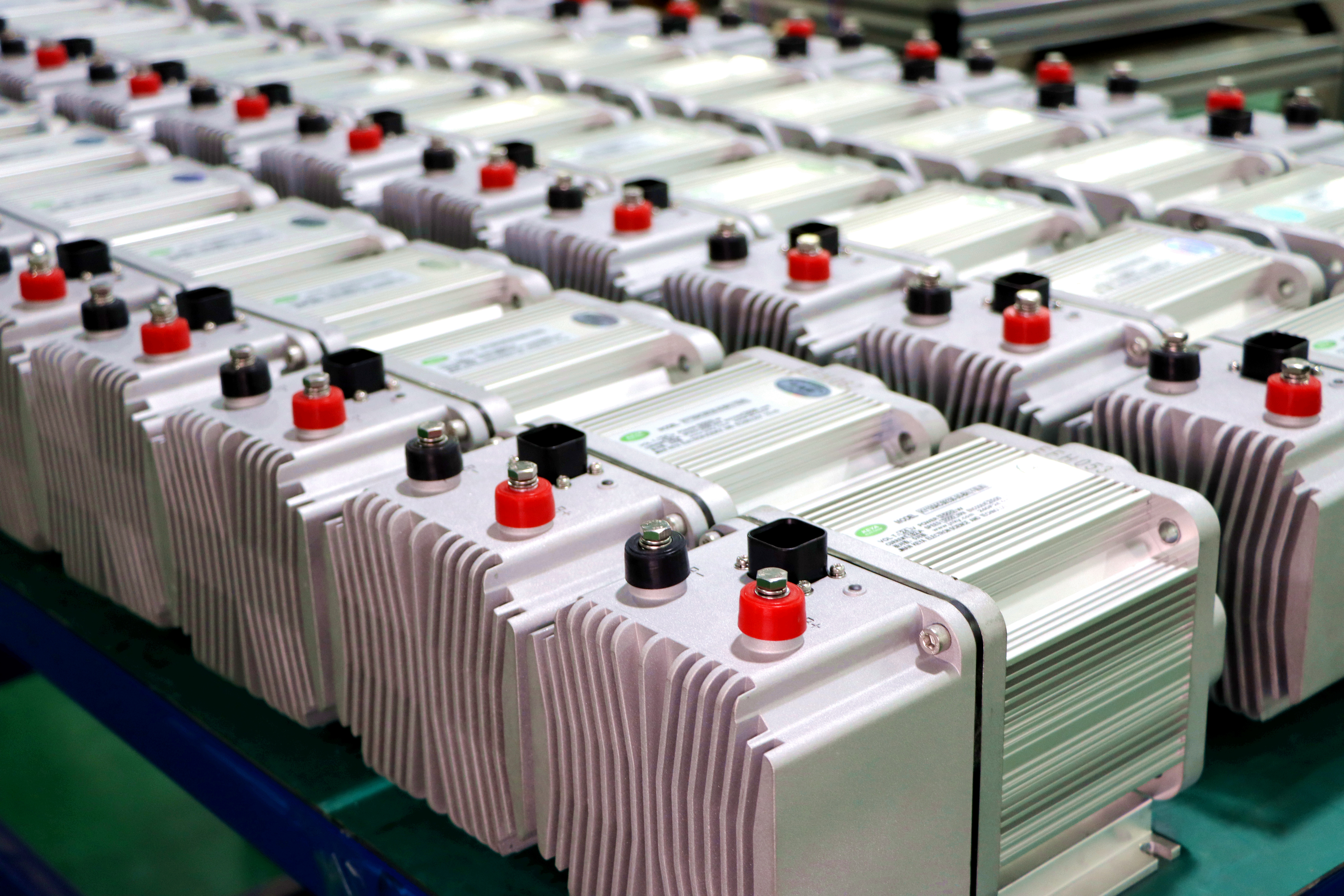

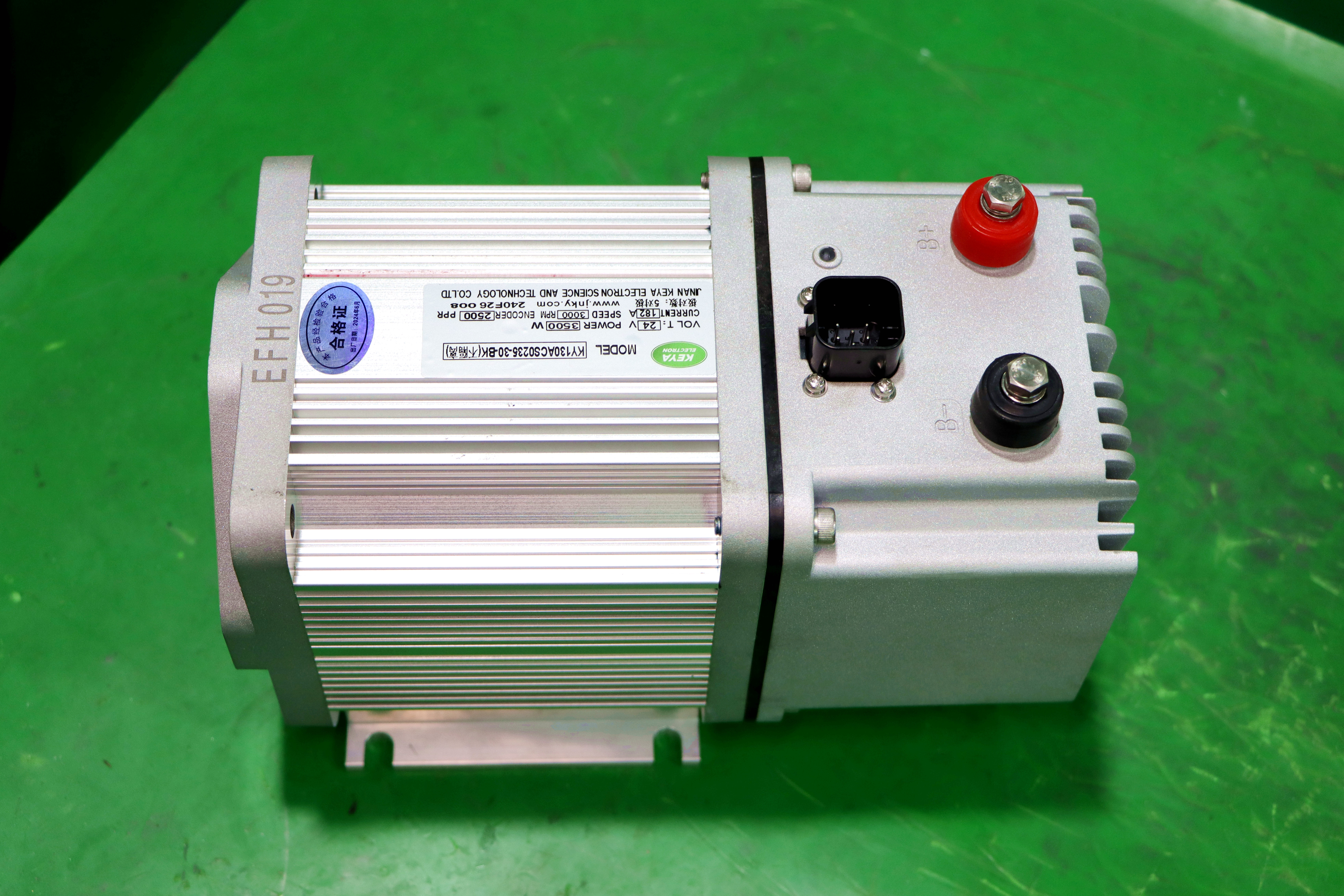

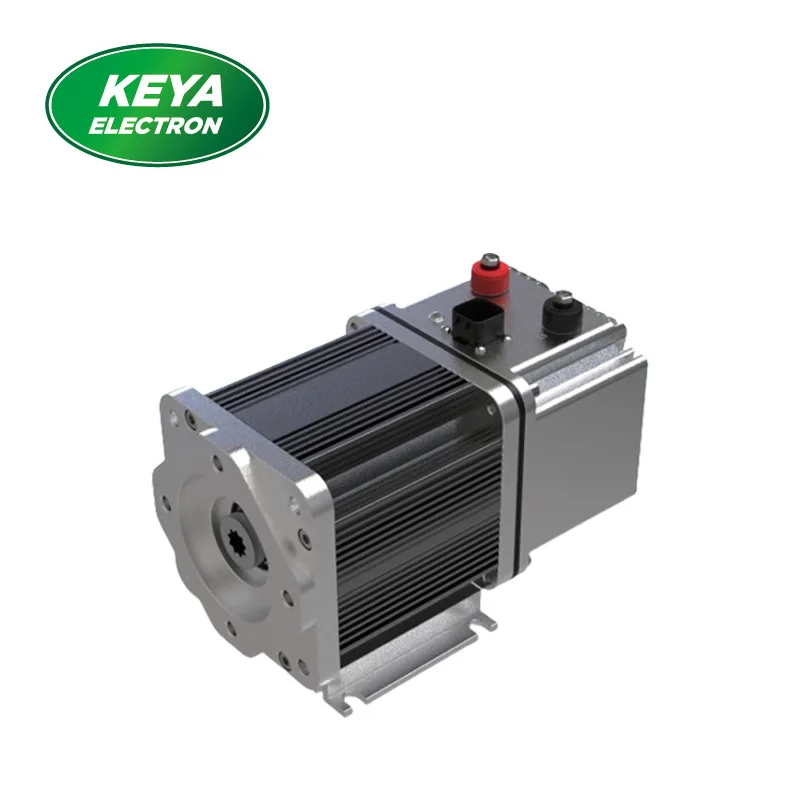

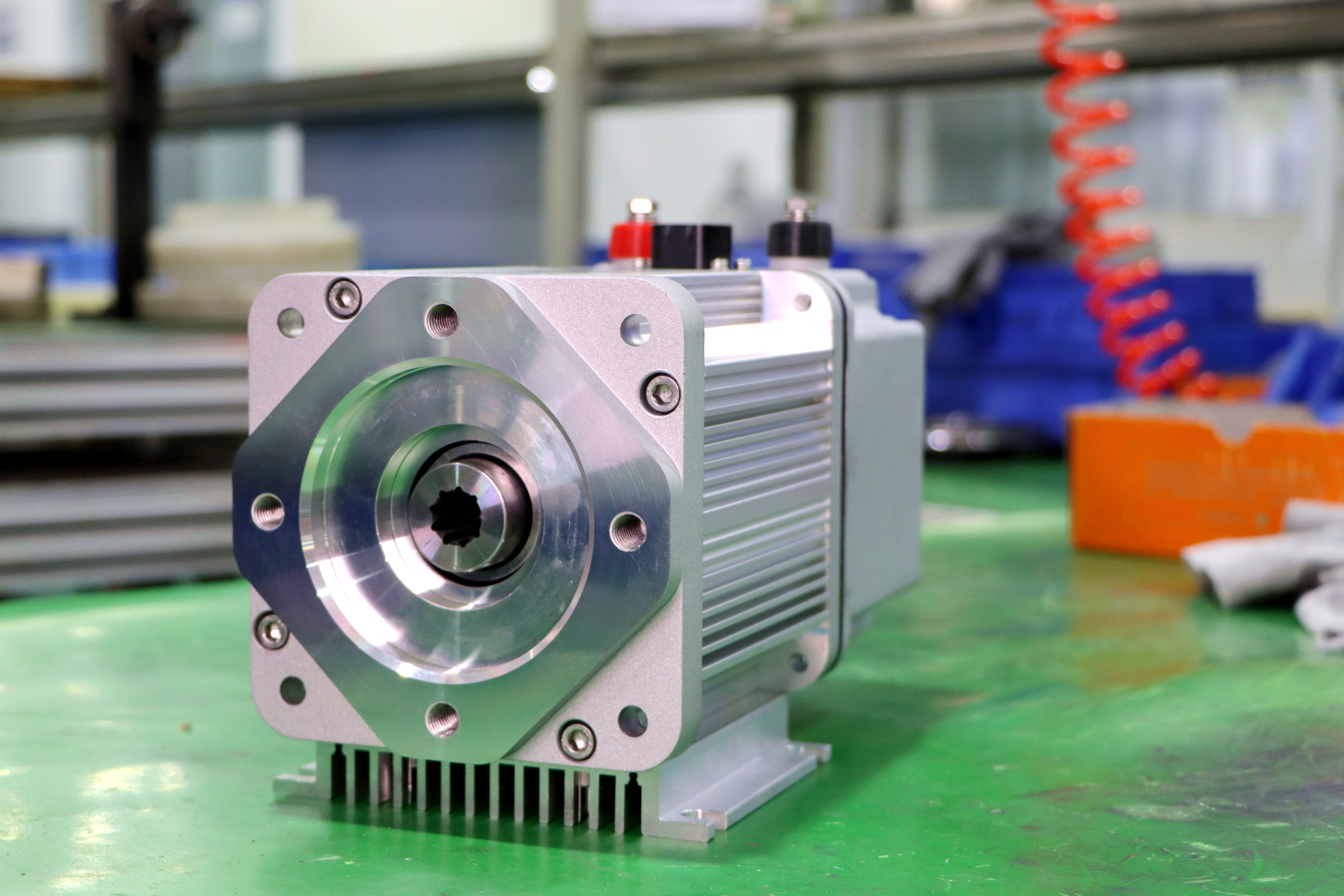

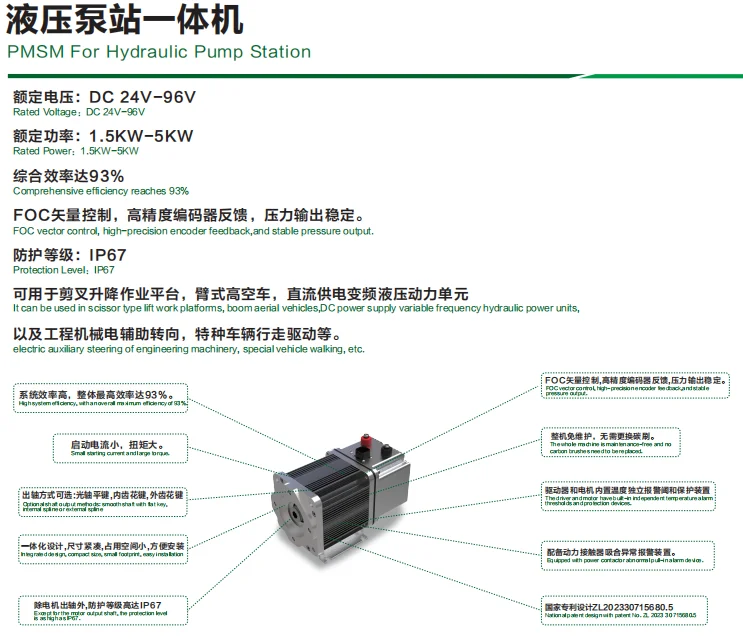

Scissors Lift 9.5n.m 24v DC Motor for Hydraulic Pump Station

Keya Factory PMSM for KYIS130ACS24200-40BL

Low starting current and high torque; High system efficiency, with an overall maximum efficiency of 93%;

The magnetic field of the motor is generated by permanent magnets, avoiding the generation of magnetic field through excitation current, and has high power density.

The entire system is maintenance free and does not require replacement of carbon brushes;

Meet harsh operating conditions, with a protection level of up to IP67, except for the motor shaft;

Easy to install, compact size, only requires installation of controller power supply and CAN or throttle circuit;

Use CANopen protocol format or upper computer for operation, status monitoring, and parameter adjustment;

There are three standard output shafts: standard optical axis flat key, internal gear spline, and external gear spline; Built in temperature protection, independent setting of temperature alarm thresholds for drivers and motors; Equipped with an alarm for abnormal closing of the power contactor;

Comparing the installation tests of customers A and C, the Koya motor solution can effectively improve the battery life by about 20%;

Entering customers B and D According to the comparative installation test, in terms of battery life, the Koya motor solution can effectively improve by about 25%;

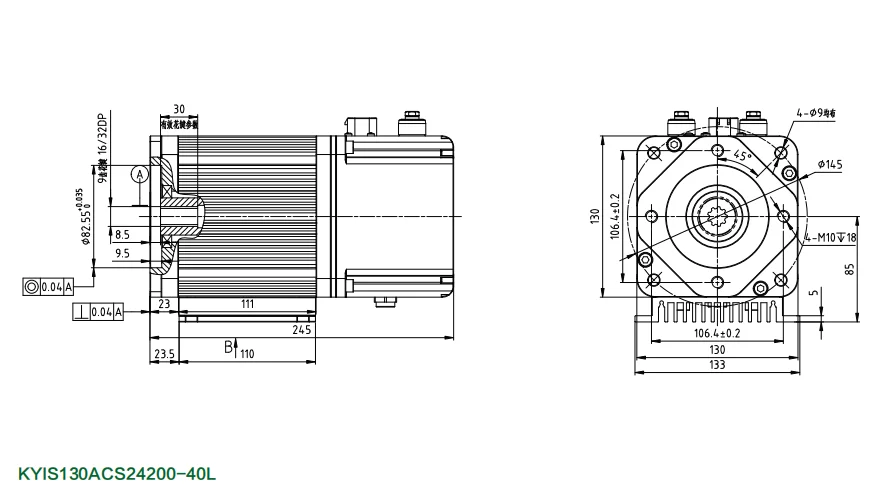

Specification for KYIS130ACS24200-40BL
Rated voltage	DC24V
Rated power	3500w
Rated speed	3000rpm
Rated current	110A
Rated touque	9.55N.m
Instantaneous max torque	16N.m
Instantaneous max current	200A
Max speed	4000rpm
flange	130 mm
Number of Pole pairs	5Pairs
Cooling method	natural cooling

Related products

Model	Rated power/w	Rated volt/V	Rated speed/rpm	Rated Current/A	Rated Torque/N.m
KY80AS020-15	200W	24V/48V	1500rpm	9.4A/4.7A	1.27N.M
KY80AS0204-15	400W	24V/48V	1500rpm	21.3A/10.6A	2.55N.m
KY80AS0204-30	400W	24V/48V	3000rpm	18.8A/9.4A	1.27N.m
KY110AS0405-15	500W	24V/48V	1500rpm	28A/14A	3.1N.m
KY110AS0408-15	800W	24V/48V	1500rpm	44A/22A	5.0N.m
KY110AS0410-15	1000W	24V/48V	1500rpm	52A/28A	6.3N.m
KY110AS0412-25	1200W	48V	2500rpm	33A	4.5N.m
KY110AS0415-15	1500W	48V	1500rpm	37.5A	9.5N.m
KY110AS0415-30	1500w	48V	3000rpm	37.5A	4.7N.m
KY110AS0420-25	2000w	48V	2500rpm	55A	7.6N.M
KY130AS0430-15	3000W	48V	1500rpm	73A	19.1N.m

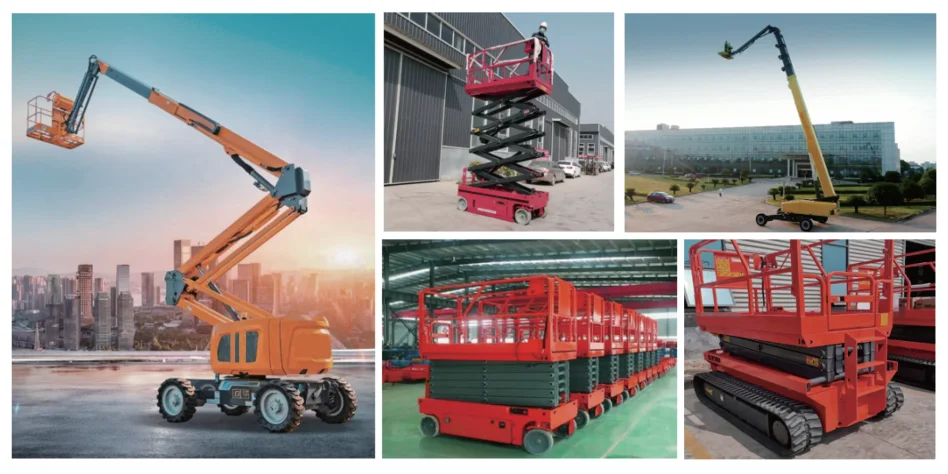

Products Application Cases Display

Scissor lifting operation platform;       Arm type aerial vehicle; DC power supply variable frequency hydraulic power unit and engineering machinery electric assisted steering; Special vehicle walking drive;

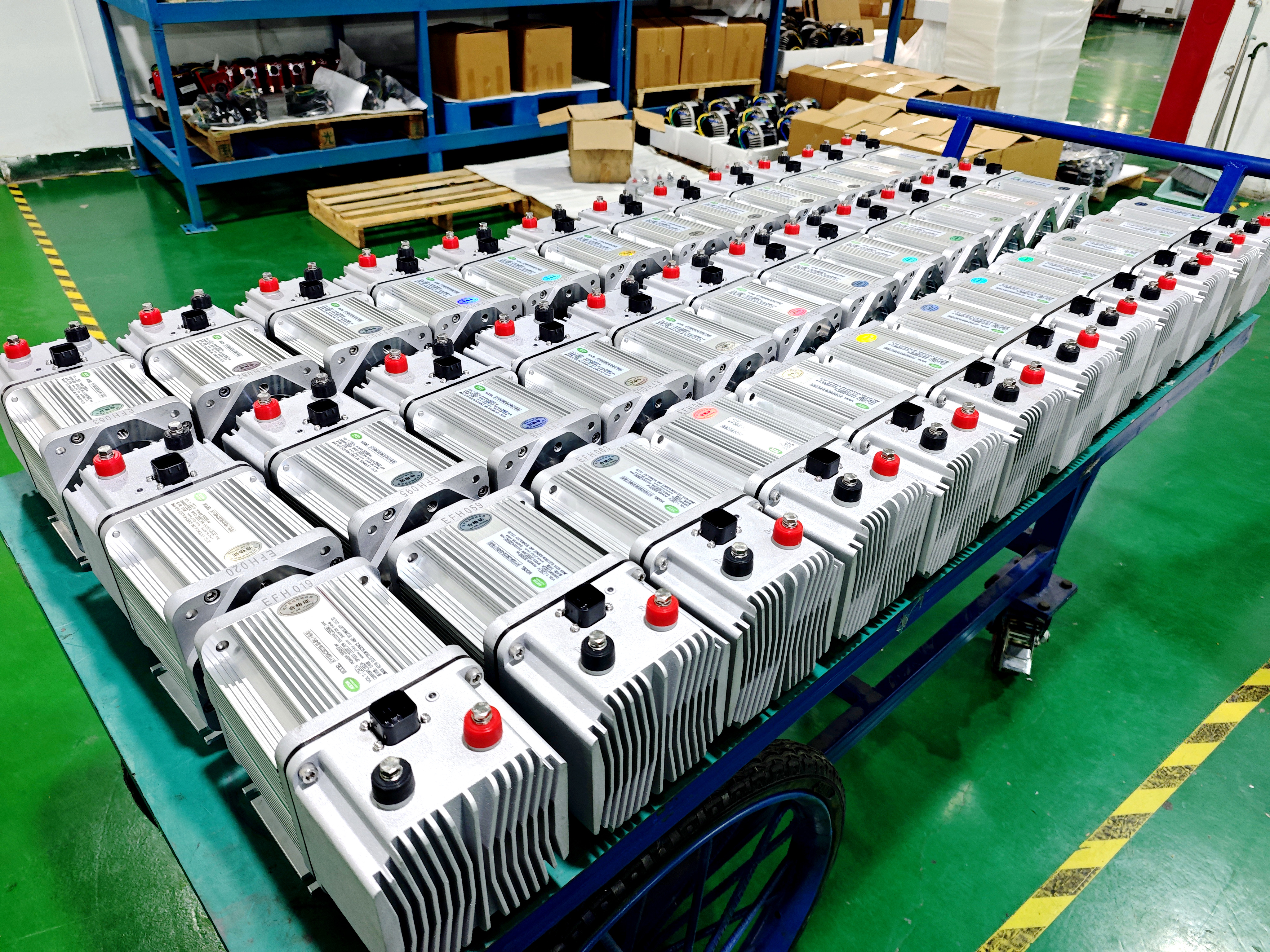

Packing & Delivery

Company Profile

Jinan Keya Electron Science and Technology Co., Ltd, founded in 2001, has been trading in the research &development, manufacturing and sales of DC motor and control system for 15 years. Company set technology, talent, management and other resources advantages, to effectively integrate, has maintained a healthy, stable and rapid growth. The company has adopted ISO9001:2008 quality management system certification, products through the CE certification. More than 3000 large and medium-sized domestic equipment manufacturers designated as supporting products, and exported to the United States, Europe, Southeast Asia and other countries.

Exhibition

Our customers

CE

FAQ

1.    Q: What are your main products?

A: We are specialize in BLDC SERVO MOTOR & DRIVER

2.    Q: How long have you been in this field?

A: More than 15 years in this field.

3.    Q: Do you have your own R&D team?

A: Yes. R&D is our core competitiveness, continuous innovation is just what we are seeking for all the time. Some of our engineers have more than 20years experience in the industry, and we also cooperate with colleges, scientific research institutions and large enterprises.

4.    Q: How soon can you deliver the goods?

A: That depends on the exact model you order. For regular products, usually we will prepare some units in stock, we can deliver them within 3 working days.

5.    Q: Can you make the product according to customer’s requirements?

A: Yes, welcome costom-made products.

6.    Q: What is your payment term?

A: You can pay by TT, Paypal, Western Union.
