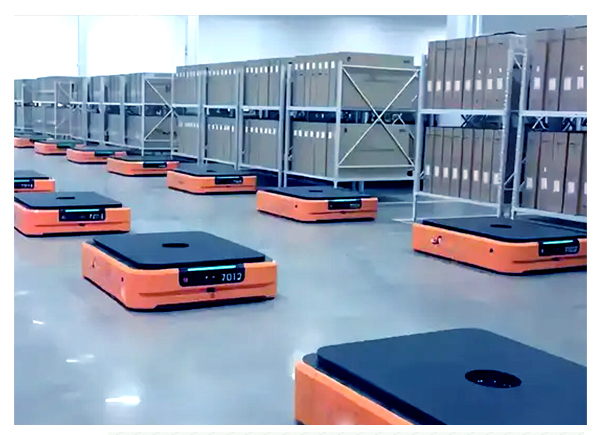

The Autonomous Mobile Robot (AMR) market is growing at 22.3% CAGR (2023-2030), driven by demand for flexible automation in warehouses, hospitals, and factories. Unlike traditional AGVs, AMRs require:
Real-time dynamic path planning
Millimeter-level positioning in crowded spaces
Instant torque adjustment for collision avoidance
Servo systems address these needs through closed-loop control, sub-millisecond response, and intelligent energy management.
| Challenge | Servo Solution | Performance Gain |
|---|---|---|
| Unpredictable floor friction | Adaptive torque control algorithms | 60% slip reduction |
| Narrow aisle navigation | 20-bit encoder feedback + Kalman filter | ±2mm positioning |
| Battery life optimization | Regenerative braking (85% efficiency) | 30% longer runtime |
| Payload fluctuations | Real-time load compensation | Speed stability ±1% |
| Safety compliance | STO/SBC safety functions (SIL3) | 99.99% fail-safe |

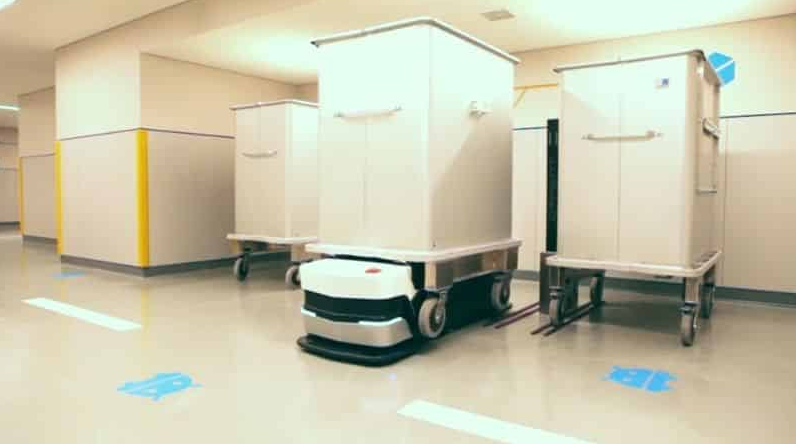

Requirements:
Zero electromagnetic interference (EMC Class B)
Silent operation (<45dB)
Servo Configuration:
400W frameless motors with harmonic drives
ISO 13482-compliant safety drives
Outcome:
100% medication delivery accuracy in 15-story hospitals

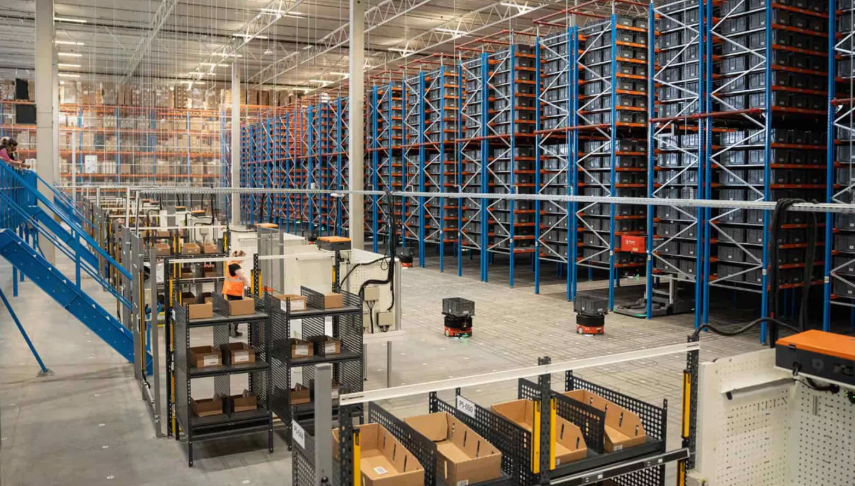

Peak Performance Data:
3,000 picks/hour with 0.05s servo response
98% energy recovery during deceleration
Technology Stack:
EtherCAT daisy-chained servo drives
AI-based thermal management system

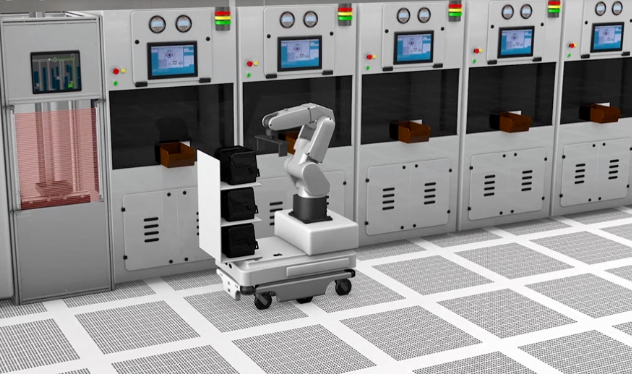

Critical Features:
Vibration levels <0.1G (ISO 14644-1 Class 3)
0.001° angular repeatability
Implementation:
6-axis collaborative motion control
Active vibration cancellation firmware
Neural networks predict trajectory conflicts 500ms in advance
Self-tuning servo parameters via reinforcement learning
Latency reduced to 8ms for multi-AMR coordination
Dynamic torque sharing between AMR fleets
Solar-compatible servo drives (12-80VDC input)
Hydrogen fuel cell optimization modules
| Parameter | Brushed DC | BLDC | Advanced Servo |
|---|---|---|---|
| Positioning Accuracy | ±10mm | ±2mm | ±0.1mm |
| Torque Density (Nm/kg) | 0.8 | 1.5 | 3.2 |
| Efficiency at 25% Load | 40% | 65% | 89% |
| MTBF (Hours) | 8,000 | 15,000 | 50,000 |
| AI Readiness | No | Limited | Full Integration |
Q1: Why choose servo over stepper motors for AMRs?
A: Servo systems provide 5x higher torque at low speeds and real-time error correction, critical for AMR obstacle avoidance.
Q2: How do servo drives improve AMR safety?
A: Integrated safety functions like Safe Limited Speed (SLS) and Safe Direction (SDI) ensure compliance with ISO 3691-4.
Q3: What’s the ROI of upgrading to servo-driven AMRs?
A: Case studies show 18-month payback through:
40% less maintenance
25% higher throughput
90% reduction in positioning errors
Certified Solutions
CE, UL, and RoHS certifications for global deployment
Customization Capabilities
Motor-drive packages from 50W to 15kW
Lifetime Support
Remote diagnostics + on-site technical assistance
Download Now: “AMR Servo Tuning Handbook: 7 Steps to Peak Performance”
