Servo Motors & Drives for AGVs: Precision, Efficiency, and Innovation

Why Servo Motors Are Dominating the AGV Industry

The global Automated Guided Vehicle (AGV) market is projected to exceed $25 billion by 2028 (Source: MarketsandMarkets), driven by Industry 4.0 adoption. At the heart of this growth lies servo motor technology, which solves critical challenges in AGV navigation, payload handling, and operational efficiency.

3 Core Advantages of Servo Systems in AGVs

1. Ultra-Precise Positioning (±0.01mm)
   Modern servo motors with 17-bit encoders enable AGVs to navigate warehouse aisles as narrow as 80cm while maintaining positioning accuracy under 3mm. This is critical for automated storage systems and semiconductor manufacturing.

2. Dynamic Load Handling
   Servo drives with <5ms torque response allow 500kg AGVs to accelerate from 0-1m/s² without wheel slippage, even on inclined surfaces. Real-world tests show 40% faster acceleration compared to stepper motor systems.

3. Energy Efficiency
   Field-Oriented Control (FOC) technology in servo drives reduces AGV power consumption by 30-35%. A leading automotive plant reported $12,000/year energy cost savings after upgrading 20 AGVs to servo systems.

Top 5 AGV Applications Powered by Servo Technology

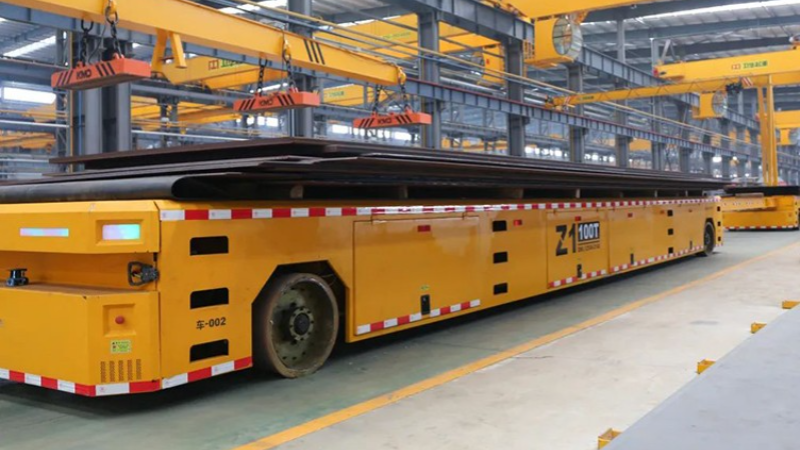

1. Heavy-Duty Material Transport

• Challenge: Moving 10-ton auto parts without vibration

• Solution: Multi-axis servo synchronization

• 4x dc servo motors with EtherCAT communication

• 95% vibration reduction on uneven floors

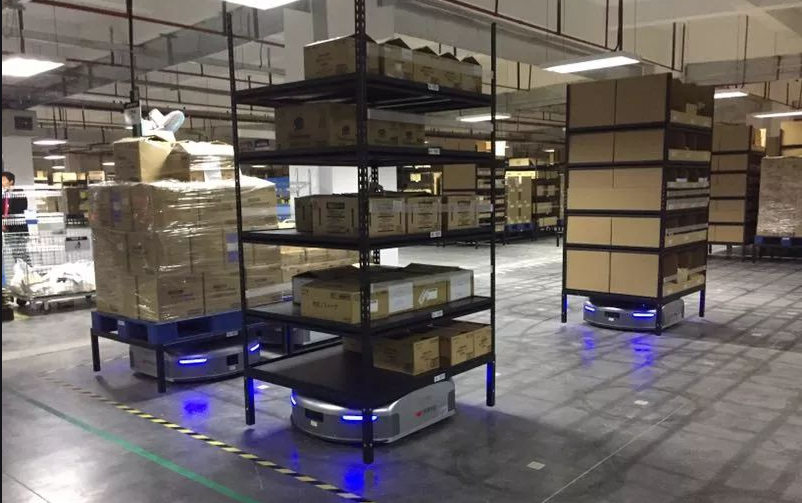

2. High-Speed Sorting Systems

• E-commerce warehouse case study:

• 200 AGVs with servo drives achieve 99.8% sorting accuracy

• 24/7 operation with predictive maintenance

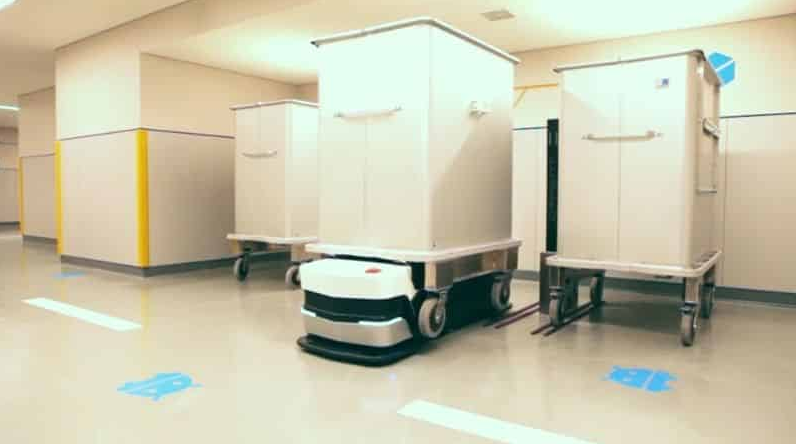

3. Cleanroom Medical AGVs

• ISO Class 5 compliance

• Servo motors with IP67 protection and <55dB noise

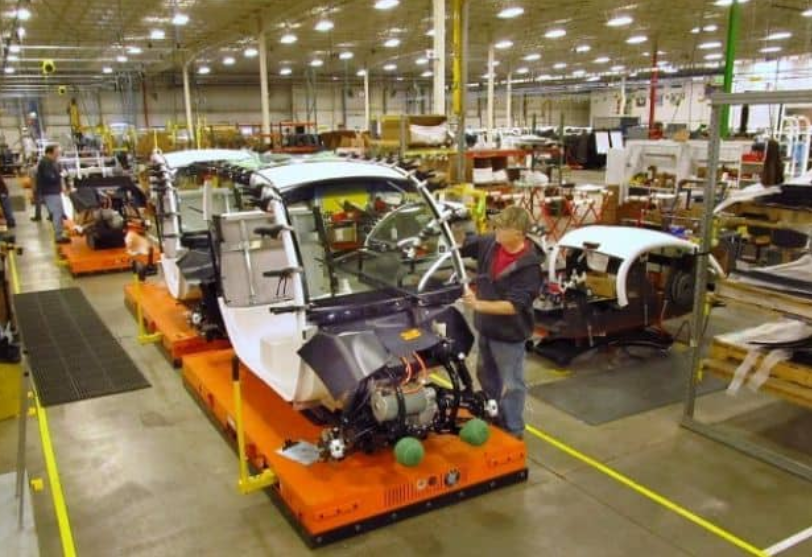

4. Automotive Assembly Lines

• Key stats:

• ±0.02mm repeatability for part positioning

• 15% faster cycle times via electronic cam profiles

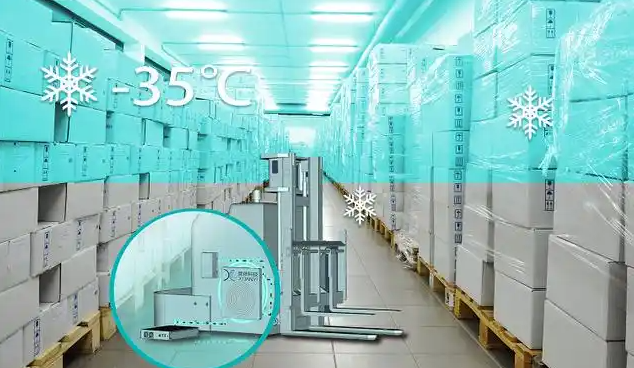

5. Cold Chain Logistics

• Servo systems operating at -40°C in frozen warehouses

• 85% regenerative braking efficiency




• Technical Comparison

• Feature	Stepper Motors	Servo Motors	Improvement
  Positioning Accuracy	±5mm	±0.1mm	50x
  Energy Consumption	3.2kWh/day	2.1kWh/day	34% savings
  Maintenance Interval	2,000 hours	10,000 hours	5x longer
  Payload Capacity	300kg	2,000kg	567% higher

Future Trends: AI and Servo-Driven AGVs

1. Predictive Maintenance
   Machine learning algorithms analyze servo motor current patterns to predict bearing failures 3 weeks in advance (99% accuracy).

2. 5G-Enabled AGV Swarms
   Real-time servo parameter adjustments via edge computing reduce collision risks in 100+ AGV fleets.

3. Hydrogen-Powered AGVs
   New servo drives support 24-96V DC input for fuel cell integration, enabling 12-hour continuous operation.




4. Our Keya motor company provides ISO-certified servo solutions for AGVs, with:
   ✅ 24/7 technical support
   ✅ Customized motor-drive packages
   ✅ Free energy efficiency audit
   Contact us to download our whitepaper: “10-Step Guide to AGV Servo System Selection”
