KY170DD01005-08
KEYA

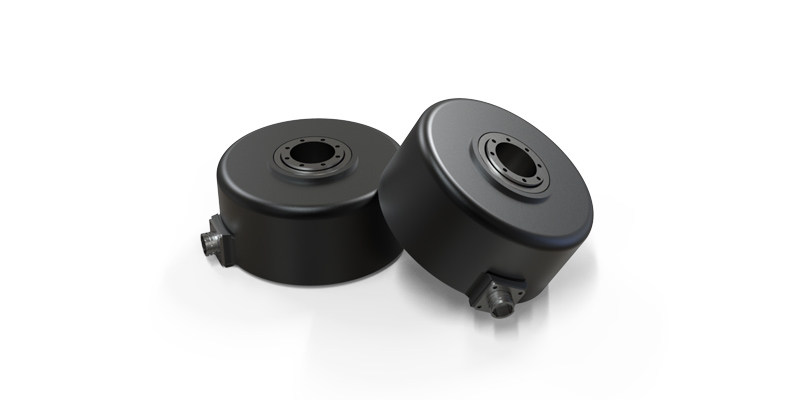

KY170DD01005-08
As the actuator of high-precision servo system, the permanent magnet direct drive servo motor is an integrated body of vector servo driver and sine wave servo motor. It is suitable for low speed, high torque and compact installations. The motor uses aerial plug-in sockets, and the wiring is simple, reliable and fast. The communication method can be selected by the host, including RS232, CAN bus, analog signals and other signals. It has high compatibility and convenient control. The feedback uses a high-resolution all-plastic encapsulated magnetic encoder, well-protected and stable-running mechanical.
Product Description
Specification
| Product name | Automatic steering motor |
| Application | Self-driving tractor, automatic driving system, Agri-vehicles, Precision agriculture |
| Voltage range | 12V |
| Rated power | 50W |
| Rated torque | 7N.m |
| Peak torque | 16N.m |
| Rated current | 10A |
| Rated speed | 80RPM-100rpm |
| Control signal | RS232, CAN2.0 |
| Feedback | Incremental Encoder |
| Protection grade | IP55 |
| Weight | 5.5KG |
Extremely high running accuracy
This machine adopts sine wave, vector control and high-precision magnetic encoder, with high control precision, which can ensure that the vehicle can walk within the error range of ± 2cm.
Good control line performance
The torque of the direct drive servo motor increases in proportion to the input current and does not change with speed and angular position. The relationship between torque and current is linear. Multi-pole structure design, low motor torque ripple coefficient, stable operation, can effectively reduce the "S" curve amplitude when the vehicle is going straight
Powerful acceleration and deceleration capabilities
The direct drive design of the servo motor enables gearless transmission. The ratio of torque to inertia on the load shaft is much better than gear transmission, which greatly improves the acceleration capability of the system, and greatly improves the ability to go online quickly in applications and the ability to correct errors under high-speed vehicle operation
Not easily deformed
The direct drive motor is mounted directly on the load shaft. No gear gap, no elastic deformation, high transmission efficiency, good rigidity, etc., suitable for steering wheel control characteristics. While ensuring high torque, it is also convenient for human emergency operation
Faster response time
The mechanical constant and electrical time constant of the direct drive servo motor are small, which ensures fast response in applications under a wide range of operating speeds, greatly improving the sensitivity of the system and improving the straight line of operation.
Interface Definition
| 1 | IN+ | Power input + |
| 2 | IN- | Power input - |
| 3 | TX | RS232-TX |
| 4 | RX | RS232-RX |
| 5 | GND | GROUND |
| 6 | CAN-H | CAN-H |
| 7 | CAN-L | CAN-L |
Application of the auto steering system
Application Cases Display
The development of direct-drive servo motors for steering wheels was mainly targeted at precision agricultural machinery. It can complete agricultural machinery operations, achieve precise positioning, improve agricultural productivity, effectively use agricultural resources, and protect the ecological environment. This is an effective way to achieve high-quality, high-yield, low-consumption, and sustainable environmentally-friendly agriculture. It can achieve fast, efficient, high-precision and automated operations on large areas of arable land. It is mainly used in multiple production links of land production, pesticide sowing, harvesting and spraying, which greatly improves production efficiency and land use.

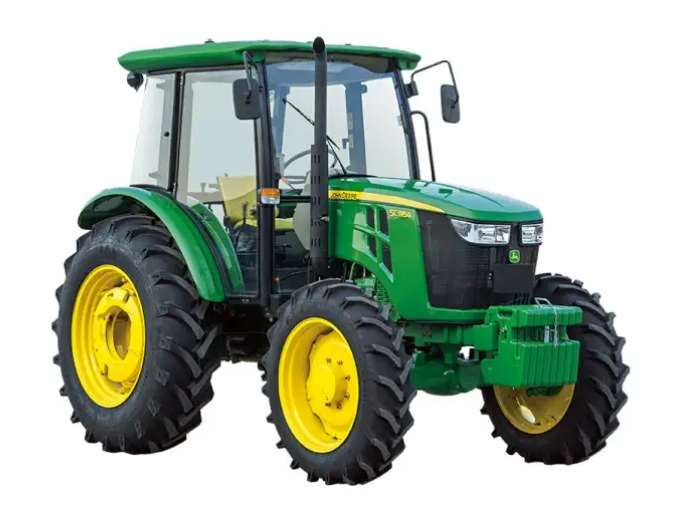

Tractor

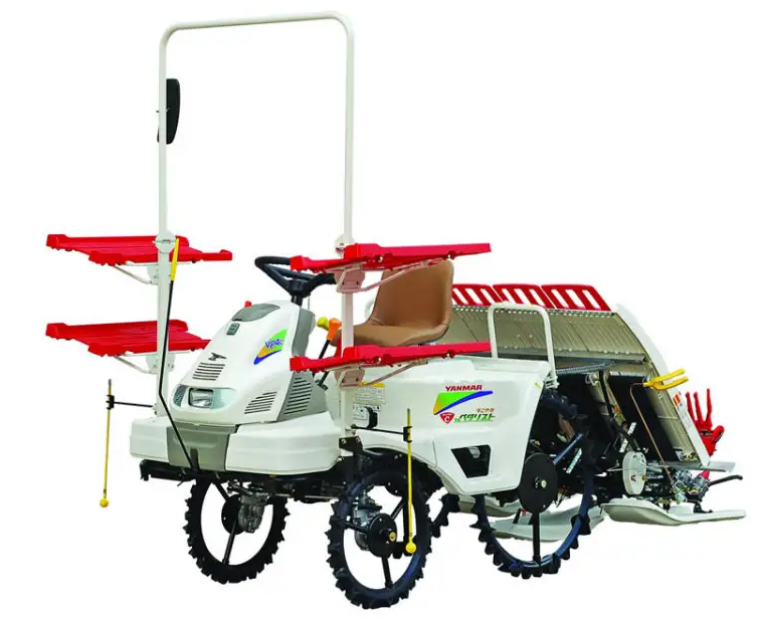

Rice-transplanter
Note: most of our customers are in Navigation business line, we share the communicate protocol, and provide the motors to them, they provide the complete auto steering system (including auto steering motor, install parts, steering wheel, display screen, Beidou navigation/GNSS, auto driving controller) to the tractor manufacturer.
